ADS4 UHF Antenna Distributor With 2 Paddles

A UHF wideband antenna splitter suitable for use with up to four radio microphone receivers. Dual 1:4 configuration for use with up to four diversity receivers allows the use of two W Audio RPA2 active antennae across multiple receivers, reducing intermodulation and resultant RF signal dropout.

A UHF wideband active antenna for use with the W Audio ADS4 antenna splitter. The antenna features a 5/8” female thread suitable for mounting onto microphone stands allowing optimum positioning for maximum RF reception.

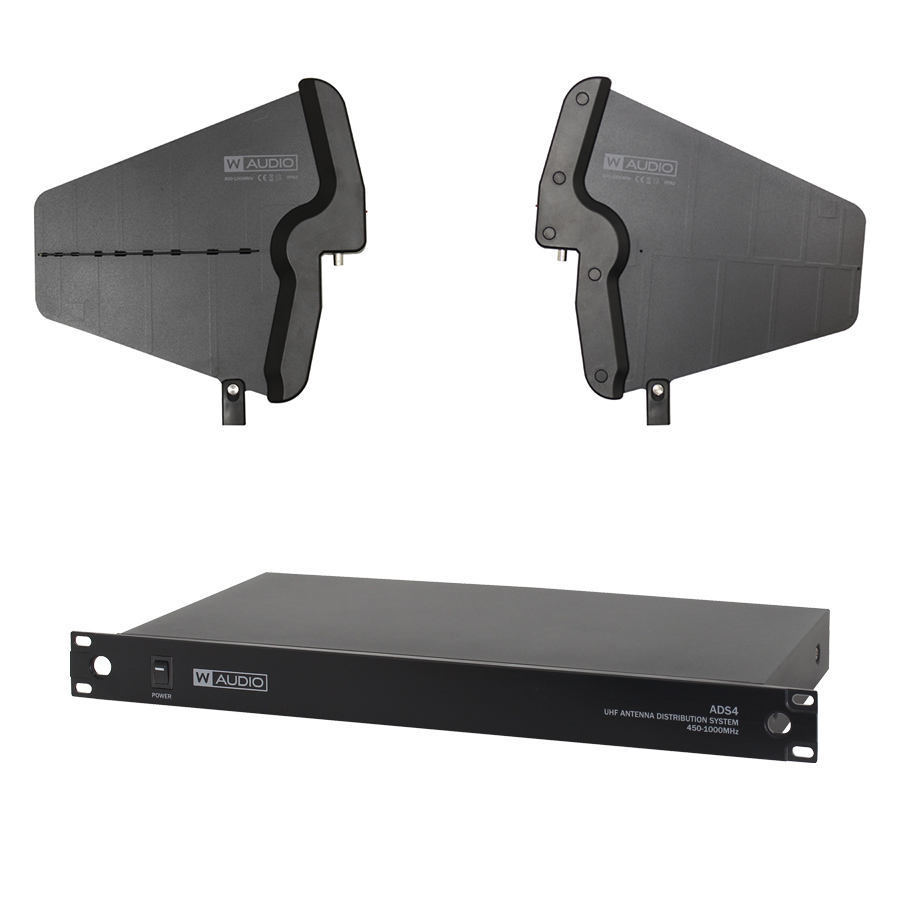

Pack Includes:

• 1 x ADS4 UHF Antenna Distributor
• 2 x RPA2 UHF Remote Paddle Antenna

Distributor Specification:

• Loop thru function to allow system expansion
• Dual 1:4 configuration
• Wide band 400-1000Mhz operating frequency range
• DC power distribution
• BNC antenna connections
• 9V DC bias (100mA) output for use with active antenna
• On/off switch with LED power indication
• Supplied with 13A UK PSU (12V DC, 5A), four 0.2m DC link cables, ten 0.5m BNC cables and two 5.0m BNC cables
• Power supply: DC 8-12V, 5A (adaptor supplied)
• Dimensions (H x W x D): 50 x 480 x 240mm
• Weight: 2.3kg

Paddle Specification:

• Integral 15dB booster
• 4~6dBi directional gain
• Wide band 400-1000Mhz operating frequency range
• 5/8” female thread for stand mounting
• LED power indicator
• Power supply: 8-12V DC bias via BNC (not supplied)
• Dimensions (H x W x D): 330 x 310 x 30mm
• Weight: 0.5kg
