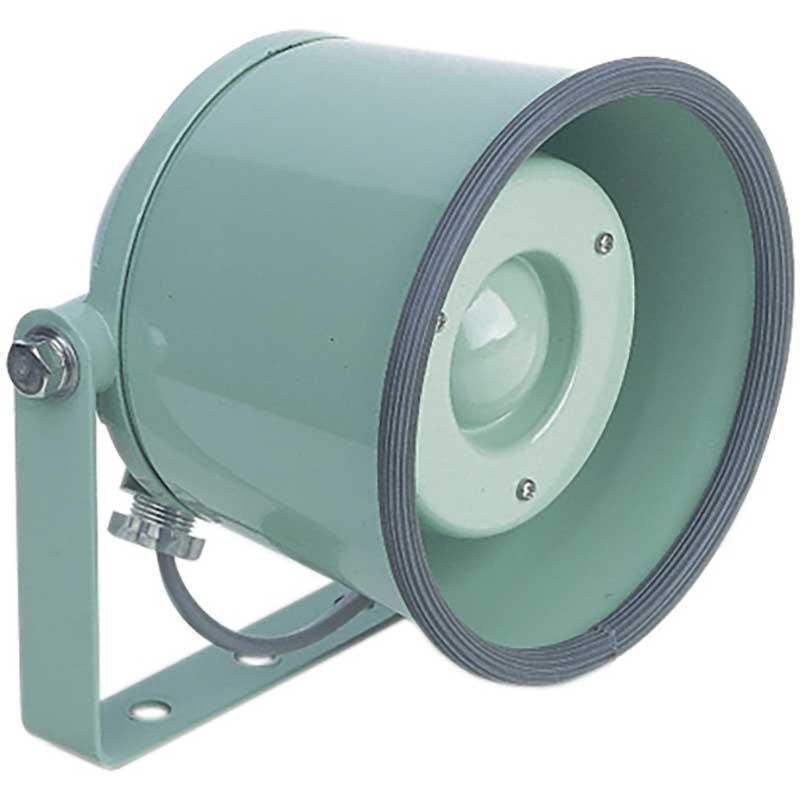

The Eagle P630F is a robust weatherproof horn speaker engineered specifically for the demands of the marine environment. Built around a fully sealed enclosure with a corrosion-proof coating and water-resistant cable inlet, it delivers reliable, clear audio on the water — whether you’re fitting out a river cruiser, yacht, or commercial vessel.
Supplied with an adjustable steel mounting bracket, the P630F is designed for permanent installation in exposed environments where standard speakers simply won’t last.
With a sensitivity of 100dB (1W/1m) and a frequency response of 400Hz – 15kHz, the P630F produces loud, intelligible output without demanding heavy amplifier power — ideal for on-board announcements, paging, and background audio.
The fully sealed enclosure is finished with a corrosion-proof coating that withstands salt air, spray, and moisture — the conditions that degrade ordinary speakers quickly. A water-resistant cable inlet protects the cable entry point, maintaining the integrity of the enclosure in wet conditions.
An adjustable steel mounting bracket is included, allowing precise directional positioning on deck or in any exposed installation.
| Specification | Details |
|---|---|
| Model | P630F |
| Power Handling (RMS) | 10W |
| Impedance | 8 Ohm |
| Sensitivity (1W/1m) | 100 dB |
| Frequency Response | 400 Hz – 15,000 Hz |
| Enclosure Finish | Green |
| Dimensions (W × H × D) | 150 × 150 × 140 mm |
| Weight | 1.2 kg |
Ideal for boats, yachts, marinas, pontoons, harbourside PA systems, outdoor public address installations, and any environment where long-term weatherproof performance is essential.
Q: Is the P630F suitable for saltwater marine environments?
A: Yes. The corrosion-proof coating and fully sealed enclosure are specifically designed to withstand salt air, spray, and coastal moisture for long-term reliability at sea.
Q: What amplifier power do I need to drive this speaker?
A: The P630F handles 10W RMS at 8 Ohms. Its 100dB sensitivity means a standard marine or PA amplifier of 10–30W will drive it to a strong, clear output without strain.
Q: Can the mounting angle be adjusted?
A: Yes. The included adjustable steel bracket allows you to position and angle the speaker precisely to direct sound where it’s needed.
Q: Can this speaker be used in land-based outdoor installations?
A: Absolutely. While designed for marine use, its weatherproof sealed construction makes it equally well suited for exposed outdoor PA applications such as car parks, sports facilities, and industrial premises.
Q: What type of cable does the P630F use?
A: The speaker features a water-resistant cable inlet compatible with standard speaker cable. For outdoor or marine installations, ensure the cable itself is appropriately rated for those conditions.
