Please call or email us to purchase this product and ask about discounts.

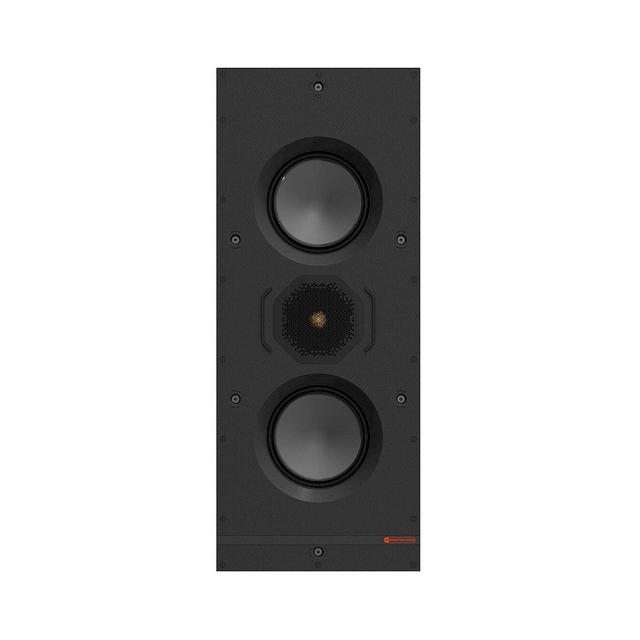

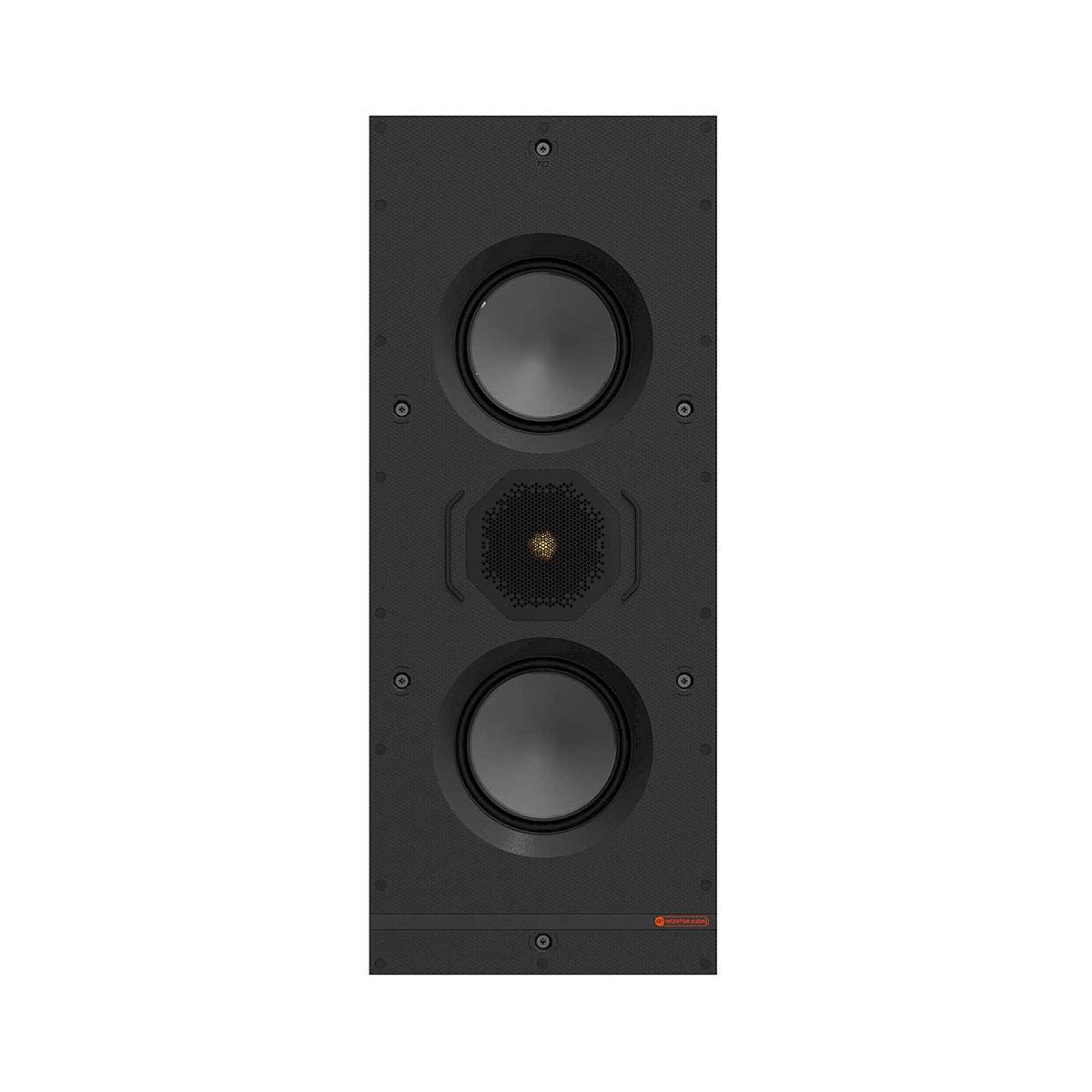

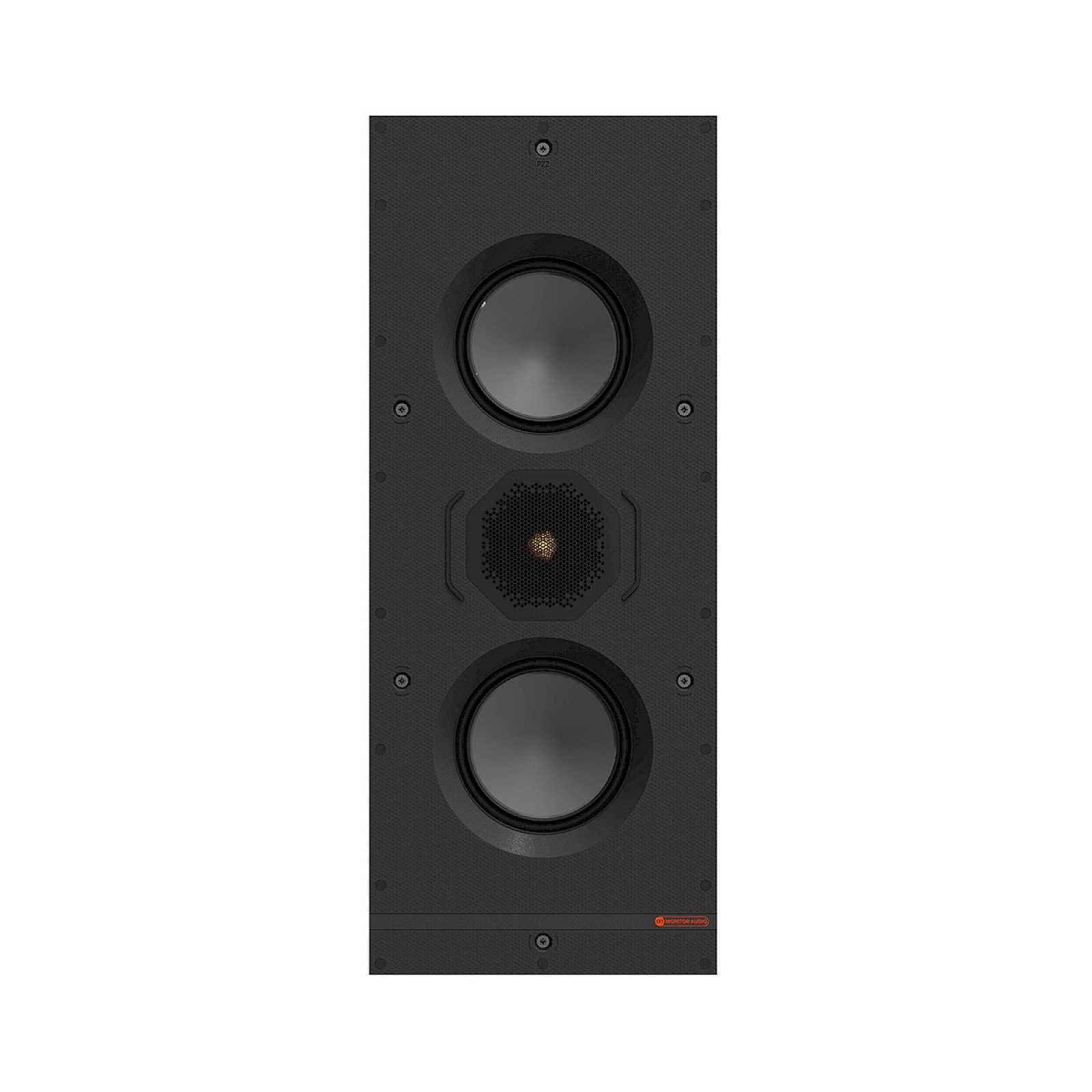

The Monitor Audio W1M is a medium-sized Tier 1 in-wall loudspeaker engineered for cost-effective installations where reliability and performance are essential. This two-way design integrates dual C-CAM mid-bass drivers with a precision C-CAM tweeter, offering natural sound reproduction with outstanding clarity and wide dispersion. Combining installer-friendly features with Monitor Audio's renowned sound quality, the W1M is the perfect solution for both residential and commercial applications.

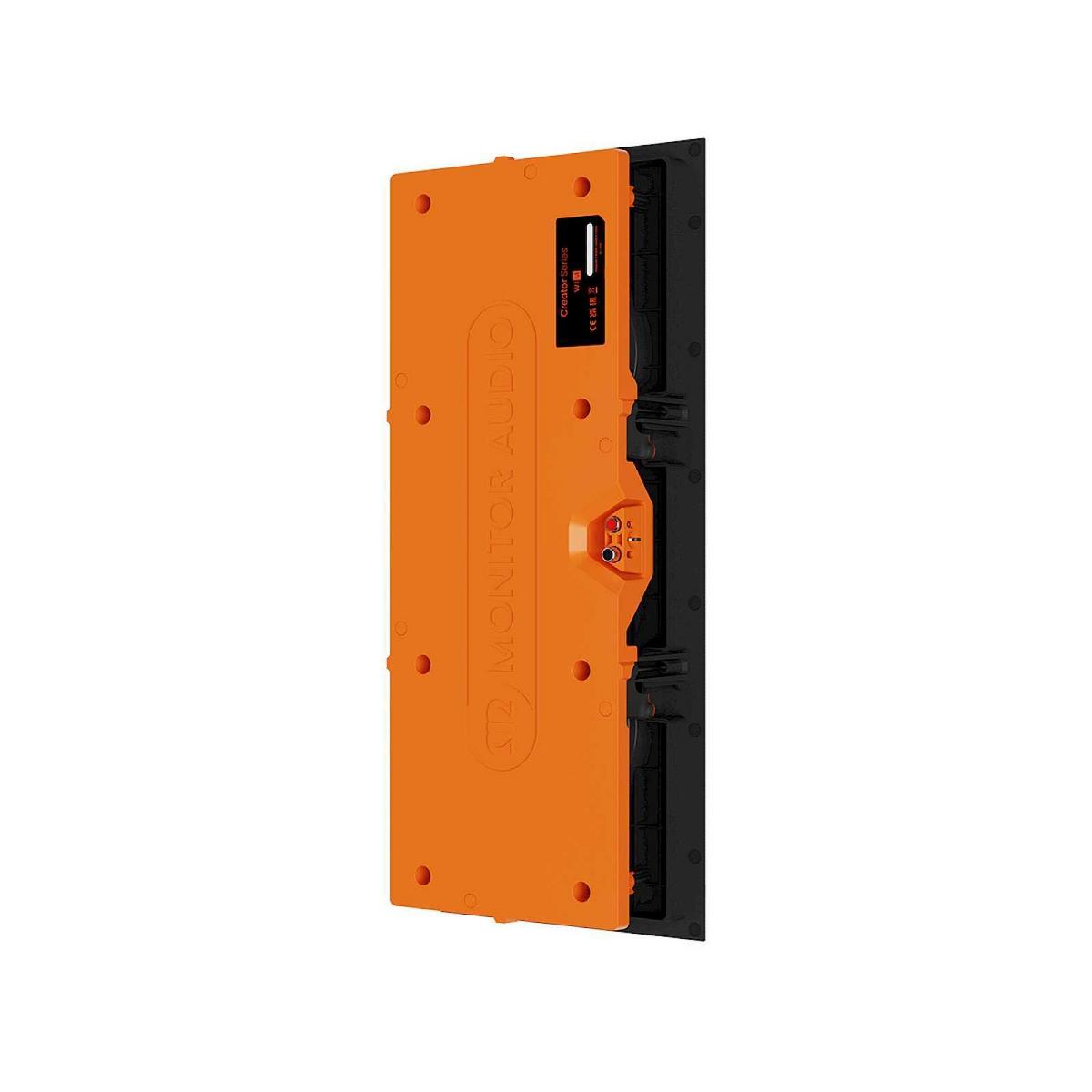

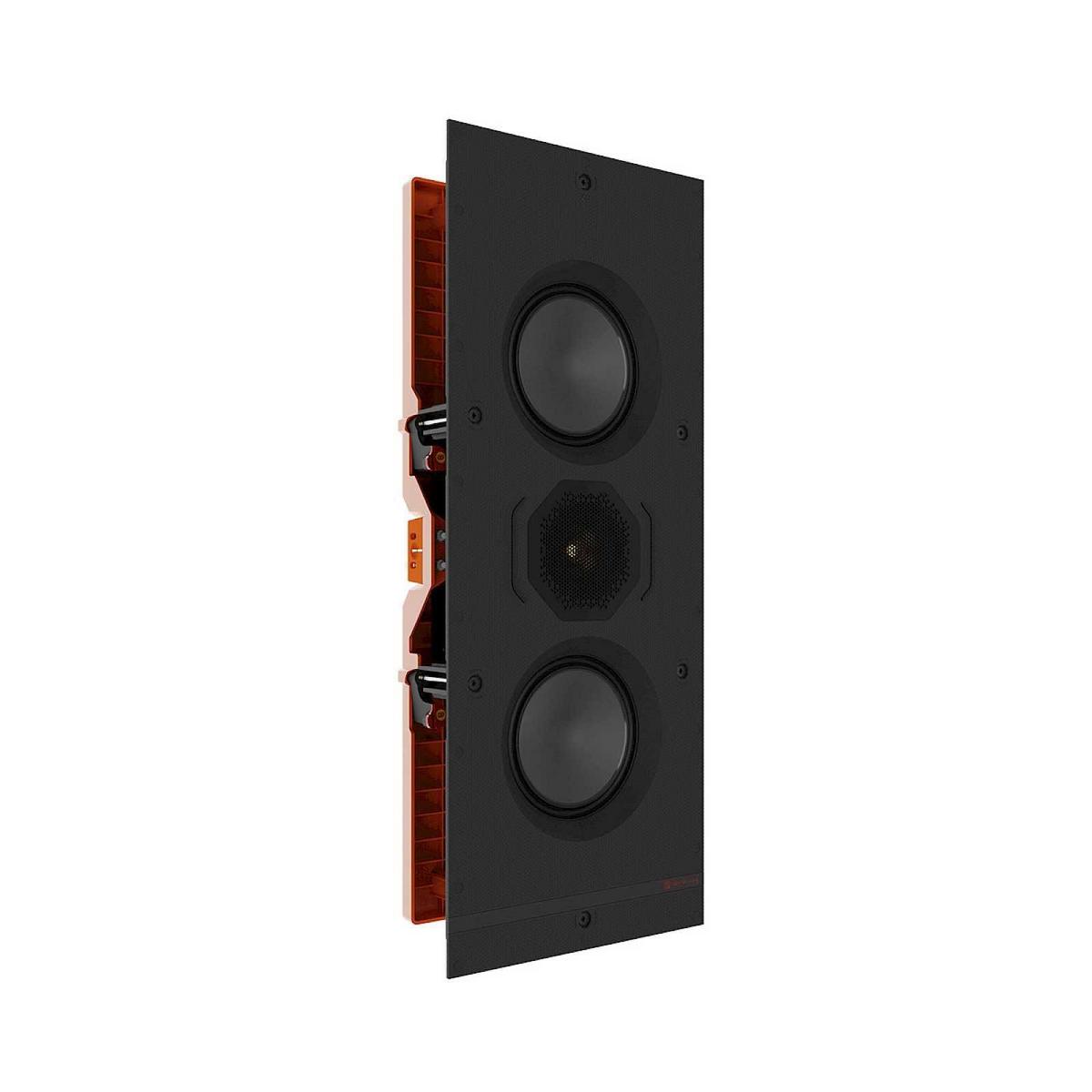

Built with a slim, modern profile, the W1M blends seamlessly into any interior while maintaining robust durability. The speaker's discreet grille delivers a clean aesthetic once installed, while its matte black and orange frame reflects Monitor Audio's premium engineering. Installation is straightforward thanks to the evolved Tri-Grip II fixing system, which guarantees a secure, vibration-free fit, and the Quik-Link cable connector that makes wiring faster and more reliable than ever.
| Specification | Details |
|---|---|
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response (-6dB) | 40 Hz - 30 kHz |
| Nominal Impedance | 6 ohms |
| Minimum Impedance | 4.8 ohms at 15 kHz |
| Sensitivity | 87 dB (2.83 Vrms @ 1m) |
| Maximum Peak SPL | 113 dB |
| Continuous Power Handling | 75 W RMS |
| Recommended Amplifier Power | 30 - 110 W RMS (into 8 ohms) |
| Drive Units | 2 x 5" C-CAM mid-bass drivers, 1 x 1" C-CAM tweeter |
| Crossover Frequency | 2.75 kHz |
| Mounting Depth | 85 mm (3 3/8") |
| Cut-out Dimensions | 527 x 198 mm (20 3/4 x 7 13/16") |
| External Dimensions | 560 x 231 x 90 mm (22 1/16 x 9 1/8 x 3 9/16") |
| Weight | 3.4 kg (7 lb 8 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & orange |
| Sold As | Single unit |
| Warranty | Lifetime |
The W1M delivers robust and engaging sound, characterised by its strong low-frequency response, clear midrange detail, and precise high-frequency definition. The inclusion of dual 5" mid-bass drivers provides greater depth and output compared to single-driver designs, making it an ideal choice for larger rooms or installations requiring higher sound levels. With wide dispersion and a peak SPL of 113 dB, the W1M ensures even coverage and dynamic audio reproduction across the listening space.
Q: What makes the W1M different from the W1M-E?
A: The W1M features dual 5" C-CAM mid-bass drivers for enhanced depth and power, while the W1M-E uses a single mid-bass driver for a more compact solution.
Q: Does the W1M require an external amplifier?
A: Yes, it is a passive loudspeaker and requires an amplifier rated between 30 - 110 W RMS into 8 ohms.
Q: How straightforward is the installation?
A: Installation is fast and secure thanks to the Quik-Link connector and Tri-Grip II mounting system, ensuring both speed and reliability.
Q: Is this suitable for larger rooms?
A: Yes, the dual-driver design provides higher output and better coverage, making it ideal for medium to large spaces.
Q: Does it come with a warranty?
A: Yes, the W1M includes a lifetime warranty, offering peace of mind and long-term reliability.
