The Antari FT-20X is a compact, battery-powered 600W fog machine engineered specifically for fire safety training, emergency response simulations and professional smoke effect applications. Designed for both indoor and outdoor use, it delivers rapid, dense fog output without preheat delays, which makes it ideal for fire brigades, safety instructors and simulation specialists.

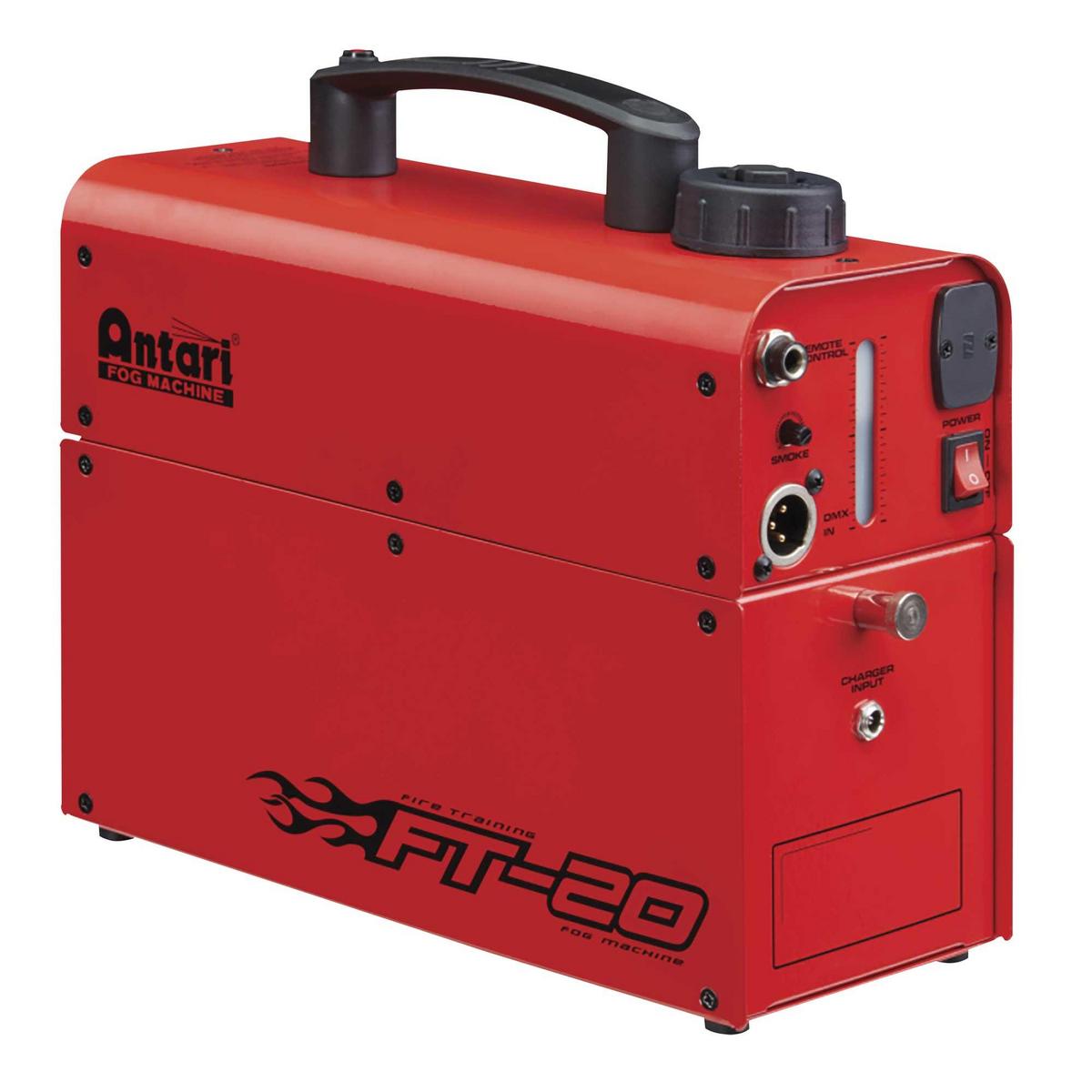

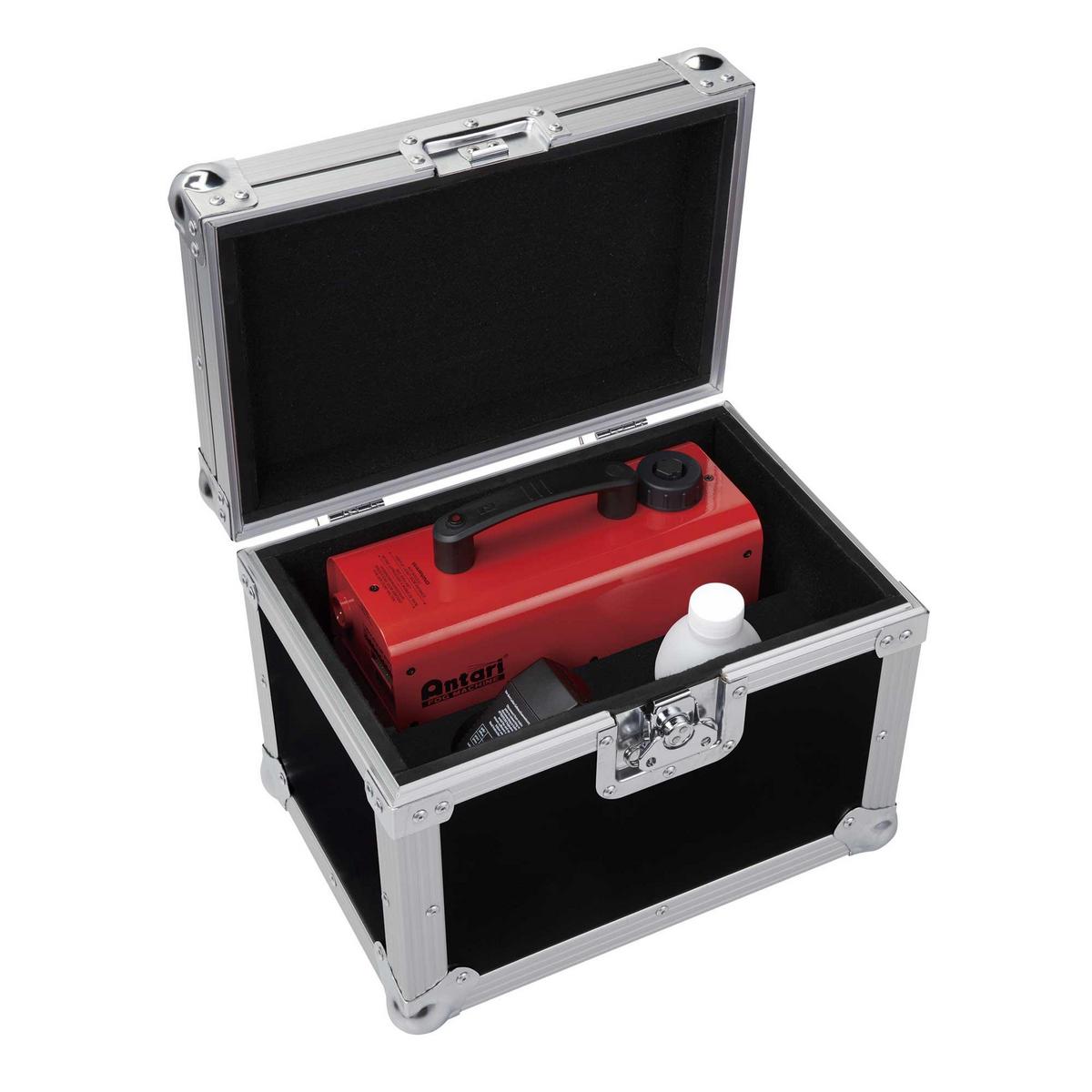

Encased in a durable red metal housing, the FT-20X is built for demanding field environments. Its ergonomic handle and compact dimensions (293 x 108 x 238 mm) ensure easy transport and deployment. Weighing 8.5 kg (including battery), it balances portability with stability during operation. The included flight case adds protection for storage and transit.
| Specification | Details |
|---|---|
| Power Source | 12V DC Battery (included) or AC 100–240V (optional FT-20S power base) |
| Motor Type | N/A |
| Voltage (if cordless) | 12V DC |
| Battery Capacity | Approximately 11 minutes at 100% output |
| Warm-Up Time | 1 second (approx.) |
| Fluid Consumption | 16 ml/min |
| Fluid Tank Capacity | 0.4 litre |
| Compatible Fluid | Antari FLM-05P Fog Fluid |
| Control Options | Manual, DMX 512, Optional Wireless (WTR-20), Optional Wired (Z-3) |
| DMX Channels | 1 channel |
| Connections | 3-pin XLR (DMX), 1/4" Phono Remote Input |
| Dimensions (L x W x H) | 293 x 108 x 238 mm |
| Weight | 8.5 kg (including battery) |

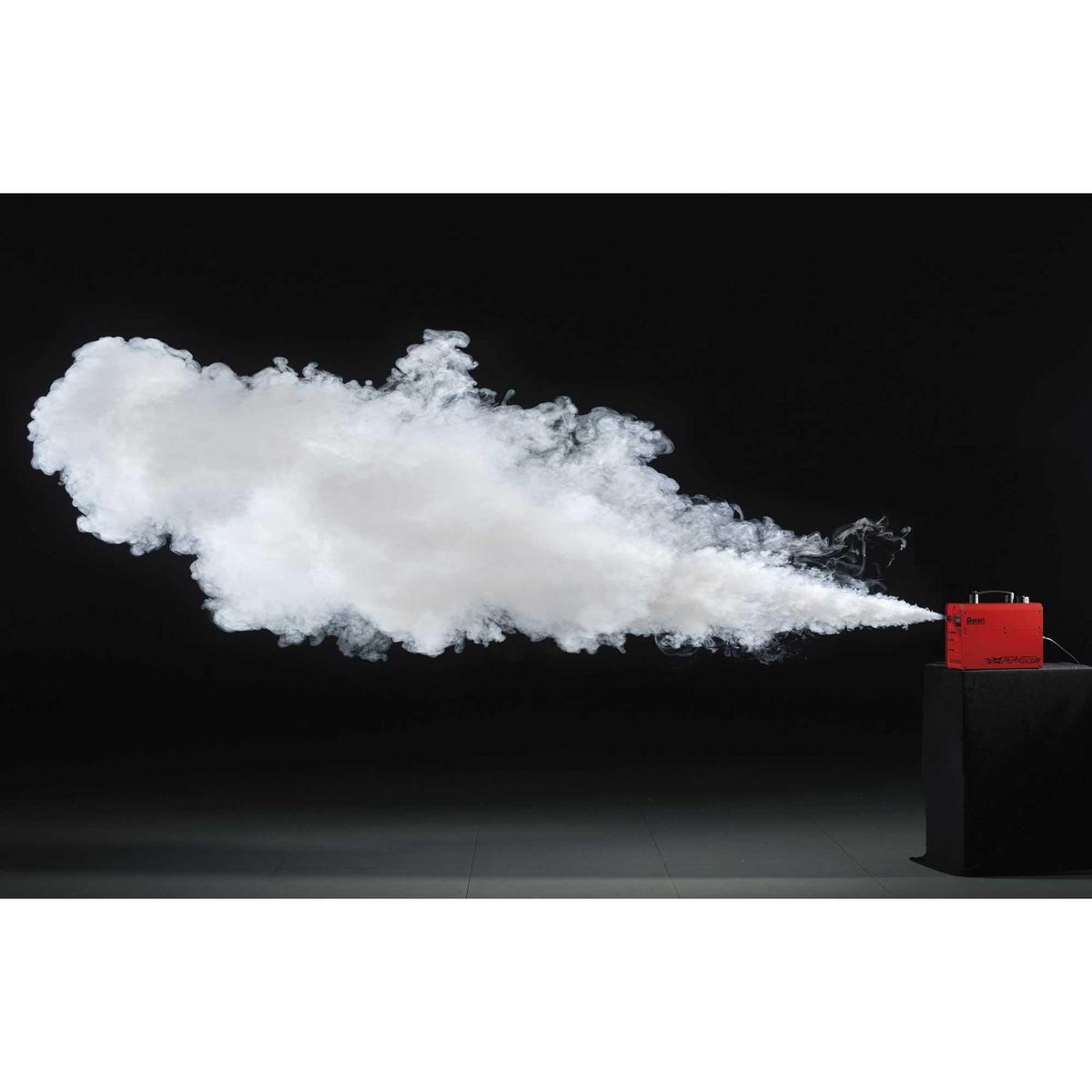

The FT-20X delivers immediate, dense fog output suitable for simulating various fire scenarios. Its rapid activation and adjustable output make it versatile for different training environments. The dual power options provide flexibility, allowing for both portable and stationary use.
Q: How long does the battery last on a full charge?
A: Approximately 11 minutes of continuous fog output at 100% intensity.
Q: Can the FT-20X be used with AC power?
A: Yes, with the optional FT-20S power base, it can operate continuously using AC power.
Q: Is there a warm-up time before fog production?
A: No, the FT-20X produces fog instantly upon activation.
Q: What type of fog fluid should be used?
A: Only Antari FLM-05P Fog Fluid is recommended to ensure optimal performance and maintain warranty coverage.
Q: Are remote controls included?
A: No, remote controls are optional accessories and can be purchased separately.
