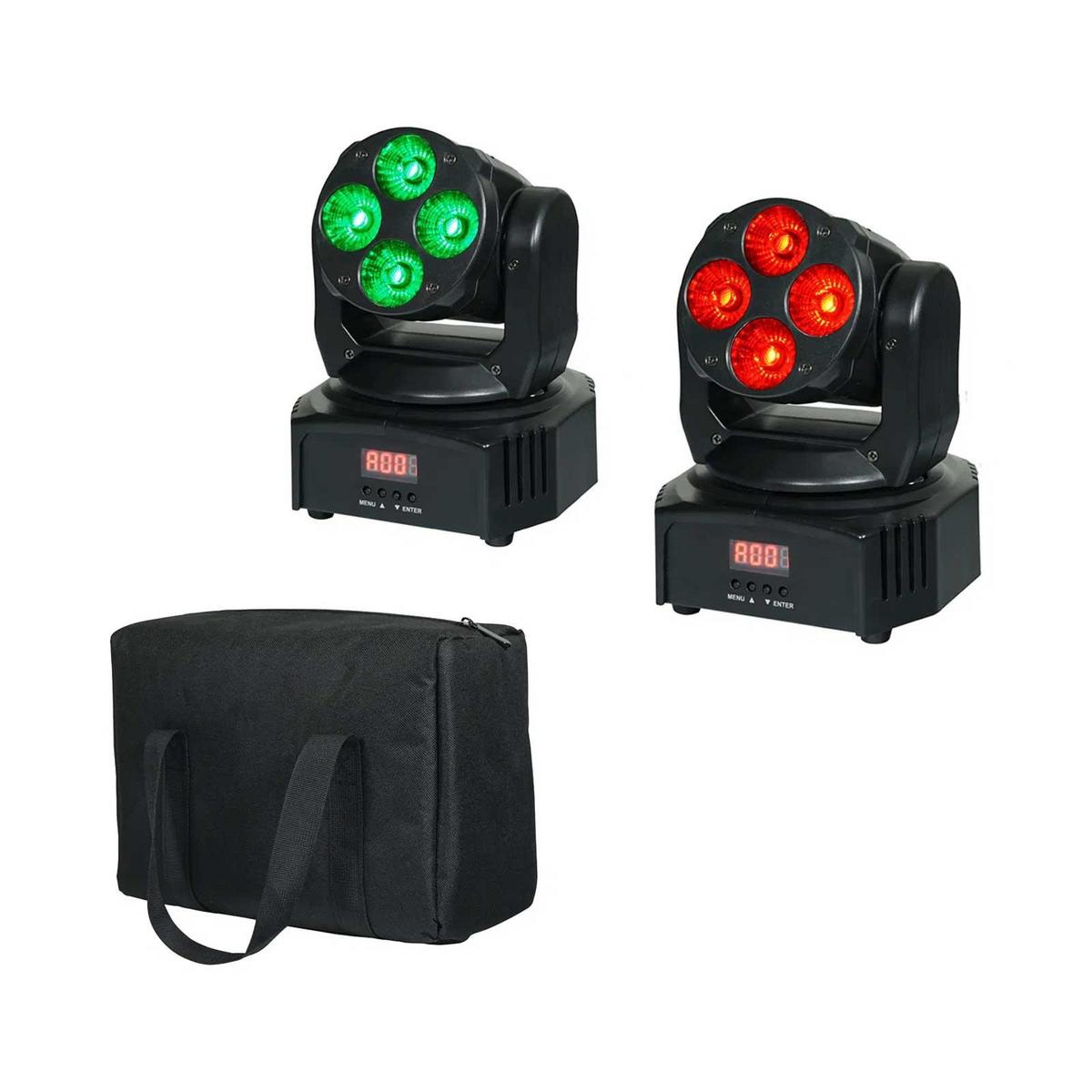

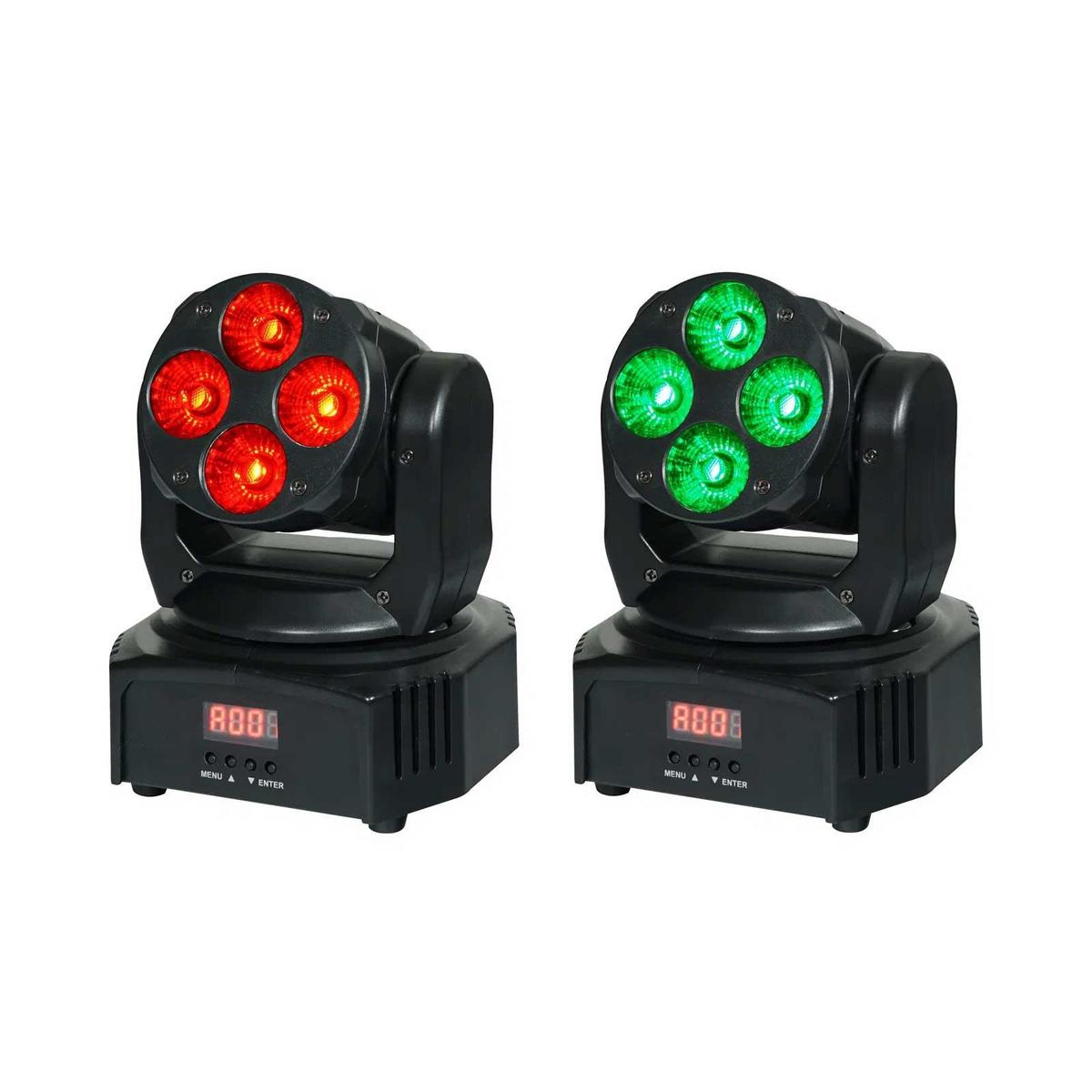

The Equinox Fusion 40 Pack is a versatile lighting solution tailored for mobile DJs, live acts, and operators of small venues seeking dynamic visual effects in a compact form. This pack includes two ultra-compact moving head fixtures, each equipped with 4 x 9W quad-colour (RGBW) LEDs, delivering smooth colour mixing and vibrant illumination. With multiple operational modes—DMX, auto-run, sound-activated, strobe, and master/slave—the Fusion 40 Pack offers flexibility and ease of use for various event settings.
Designed with portability in mind, each moving head fixture boasts a lightweight construction, weighing only 1.44kg. The compact dimensions (249 x 173 x 173mm) allow for easy transportation and setup, making it ideal for mobile applications.
| Specification | Details |
|---|---|
| Power Source | Corded |
| LED Configuration | 4 x 9W RGBW LEDs per fixture |
| Control Modes | DMX, Auto-Run, Sound-Activated, Strobe, Master/Slave |
| Power Consumption | 85W |
| Power Supply | 100~240V, 50/60Hz |
| Fuse | F2A 250V |
| Dimensions (H x W x D) | 249 x 173 x 173mm per fixture |
| Weight | 1.44kg per fixture; 3.31kg per pack |
| Pack Dimensions (H x W x D) | 218 x 305 x 170mm |
The Fusion 40 Pack delivers vibrant and smooth colour transitions, enhancing the ambiance of any event. Its compact size and lightweight design facilitate quick setups and easy transportation, making it a favourite among mobile DJs and performers. The variety of control modes allows users to tailor the lighting effects to their specific needs, whether syncing with music or running automated programmes.
Q: Can the Fusion 40 Pack be controlled without a DMX controller?
A: Yes, the fixtures can operate in auto-run or sound-activated modes, enabling dynamic lighting displays without external controllers.
Q: Are the fixtures suitable for larger venues?
A: While designed for small to medium-sized venues, multiple packs can be combined to accommodate larger spaces.
Q: What is the beam angle of the fixtures?
A: The specific beam angle is not listed; however, the fixtures are designed to provide wide coverage suitable for various applications.
Q: Is there a cooling system in place to prevent overheating?
A: The fixtures are designed with efficient heat dissipation mechanisms to ensure safe and reliable operation.
Q: Can the fixtures be mounted on trusses?
A: Yes, the fixtures are compatible with standard mounting hardware, allowing for truss installations.
