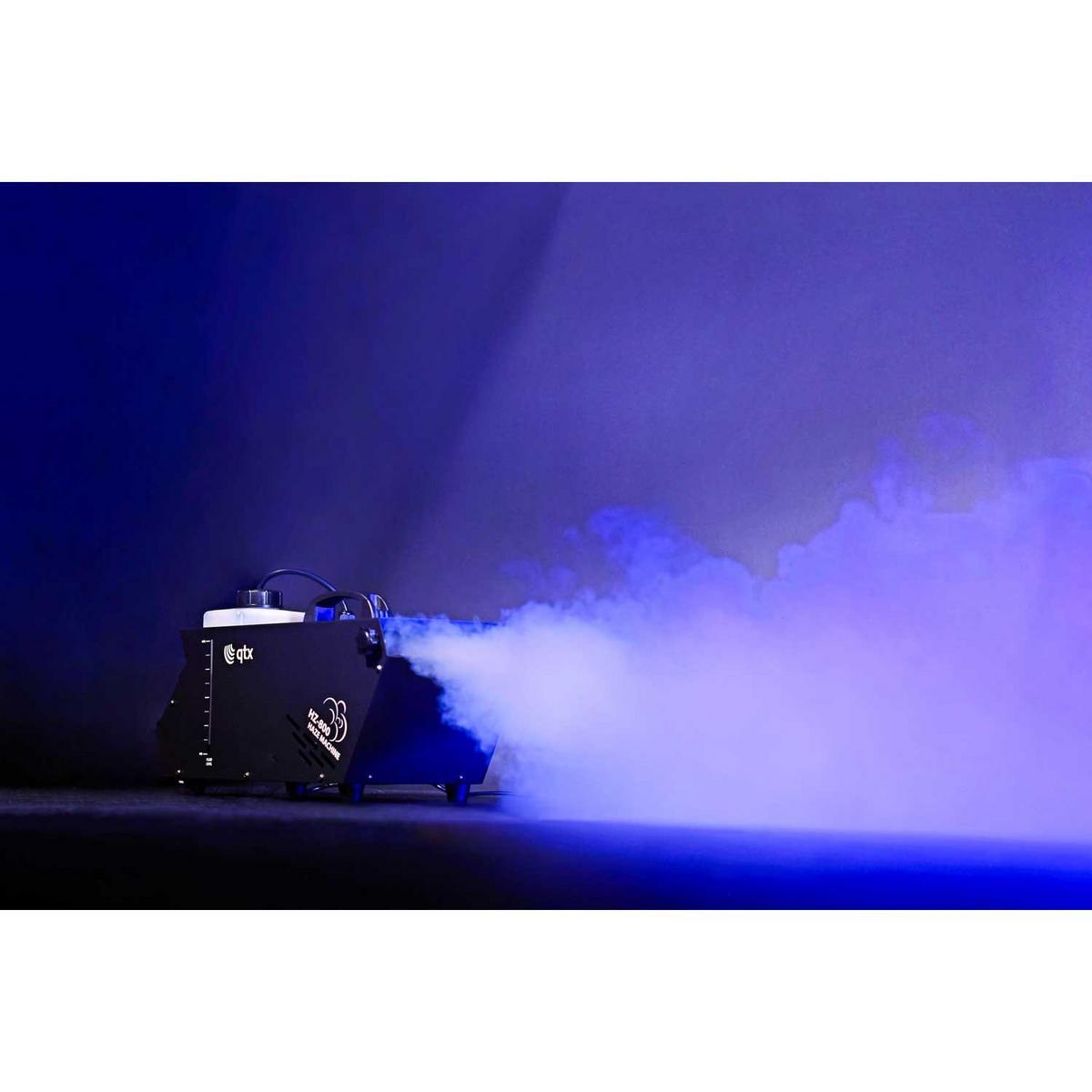

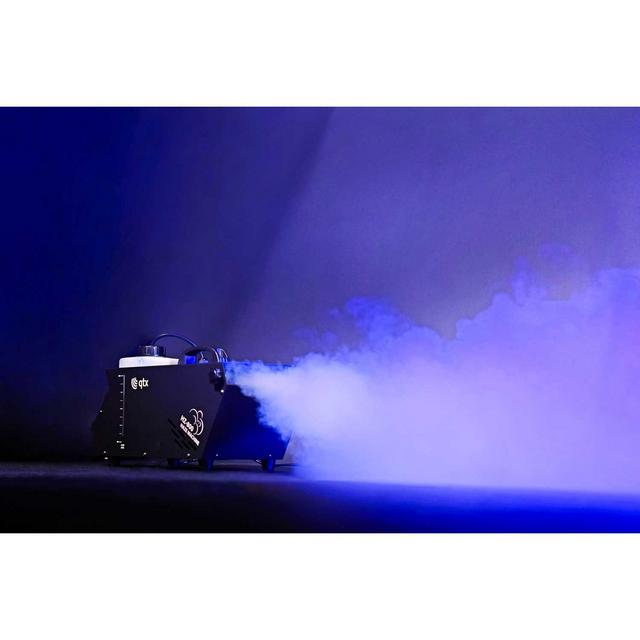

The QTX HZ-800 is a high-efficiency 800W haze machine designed to deliver even, atmospheric haze for lighting enhancement in clubs, theatres, live events and studios. Producing up to 12,000 cu.ft of haze per minute, it rapidly fills medium to large venues with a fine, long-lasting haze that reveals beams, colours and effects from lighting fixtures. With wired, wireless and DMX control, the HZ-800 provides flexible operation for both manual and automated setups.

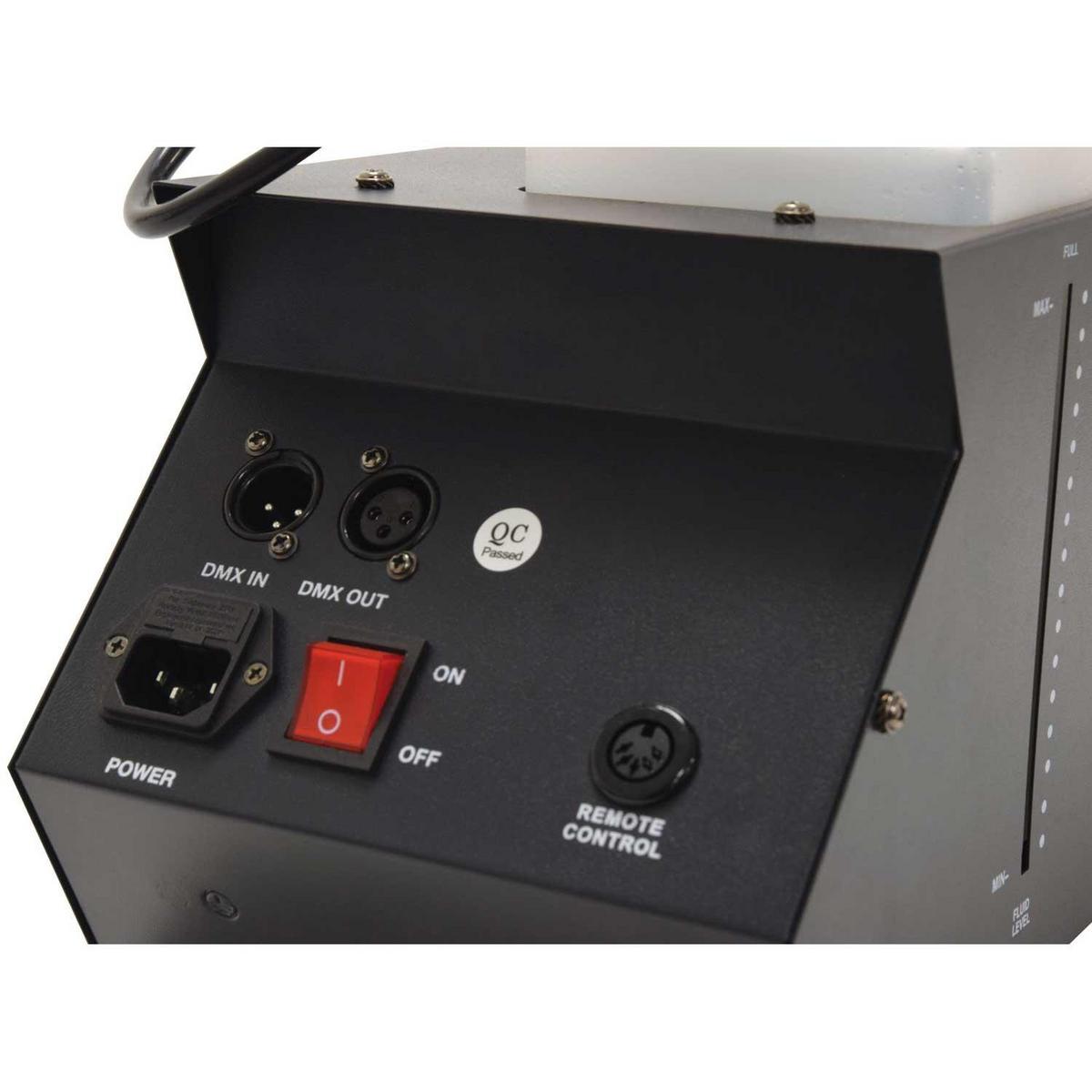

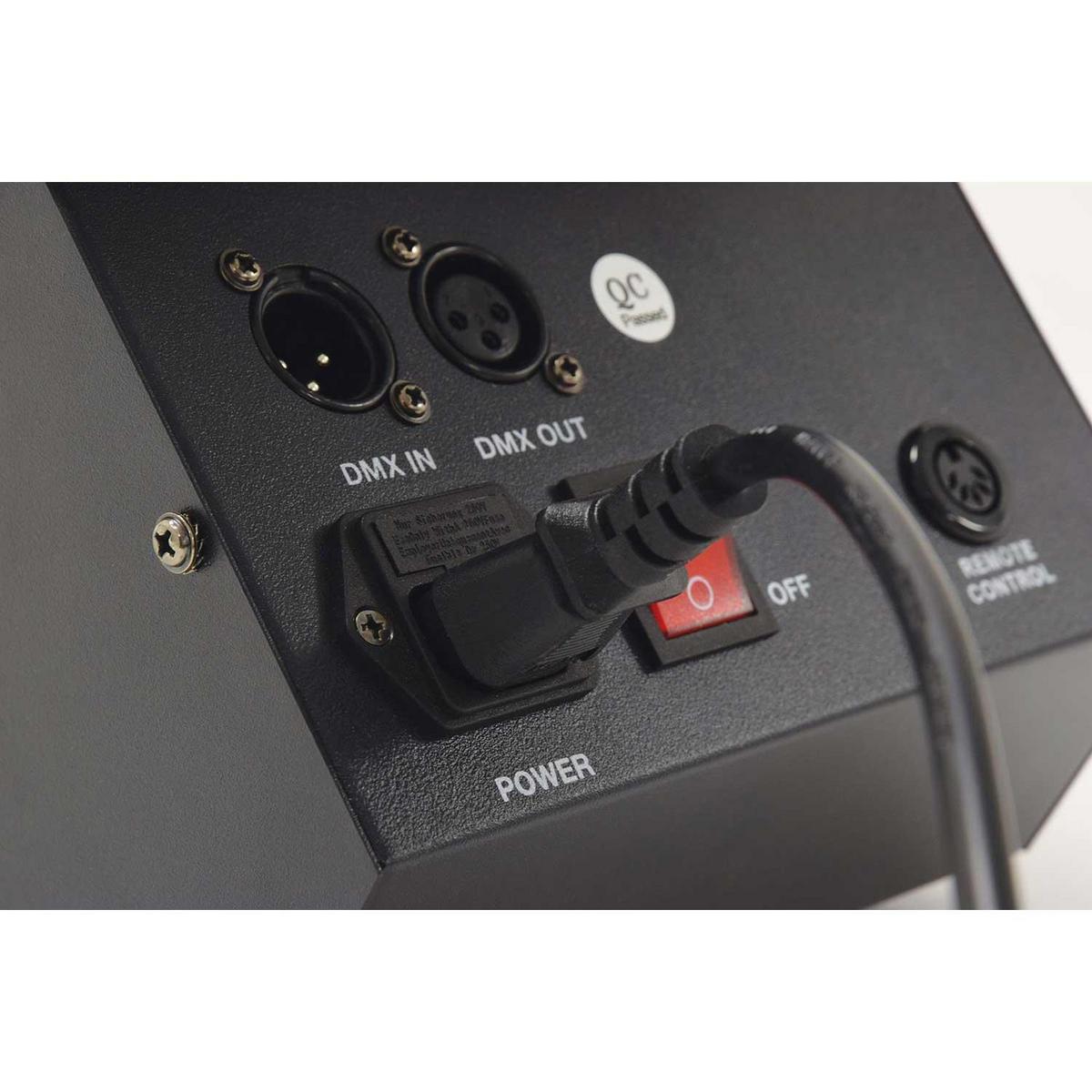

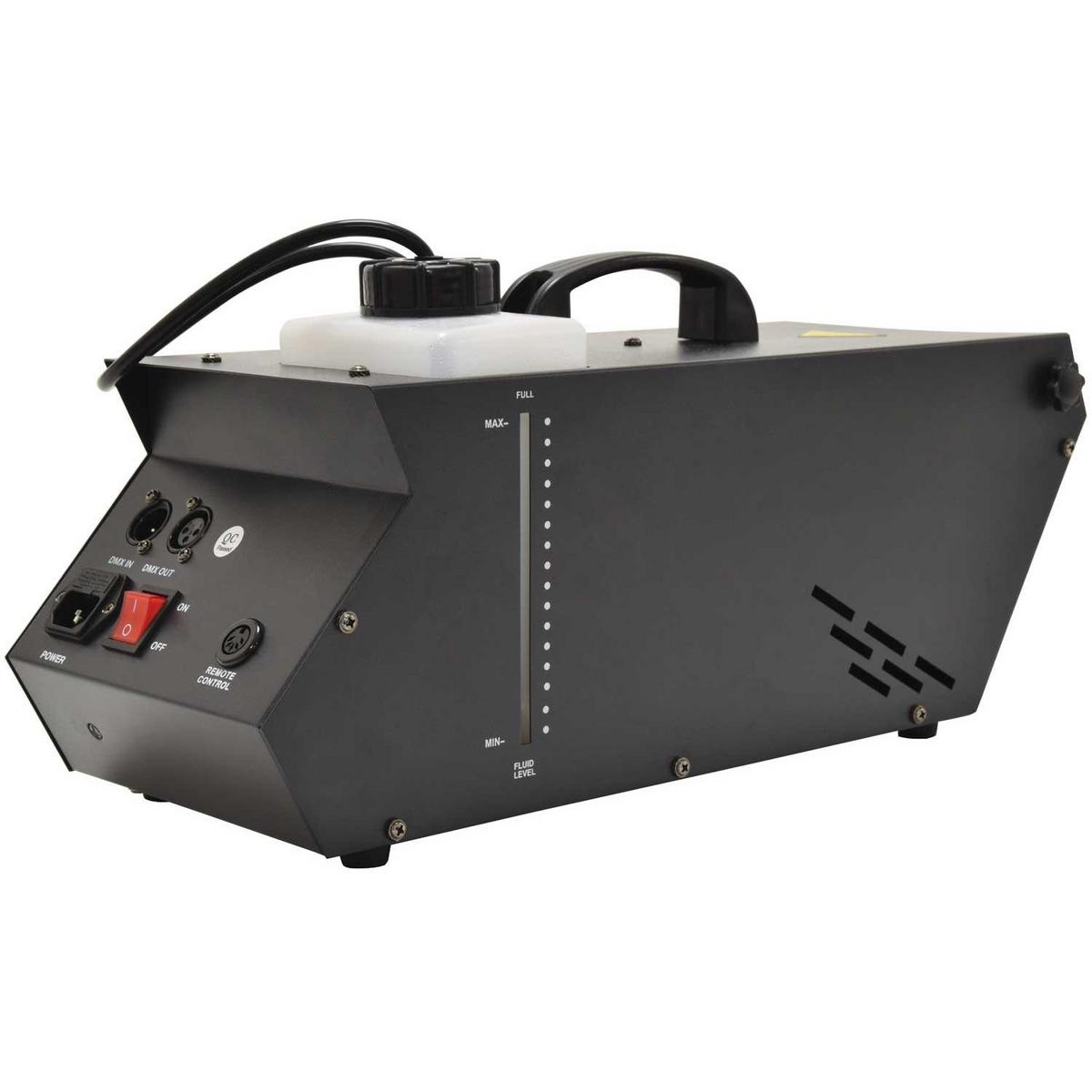

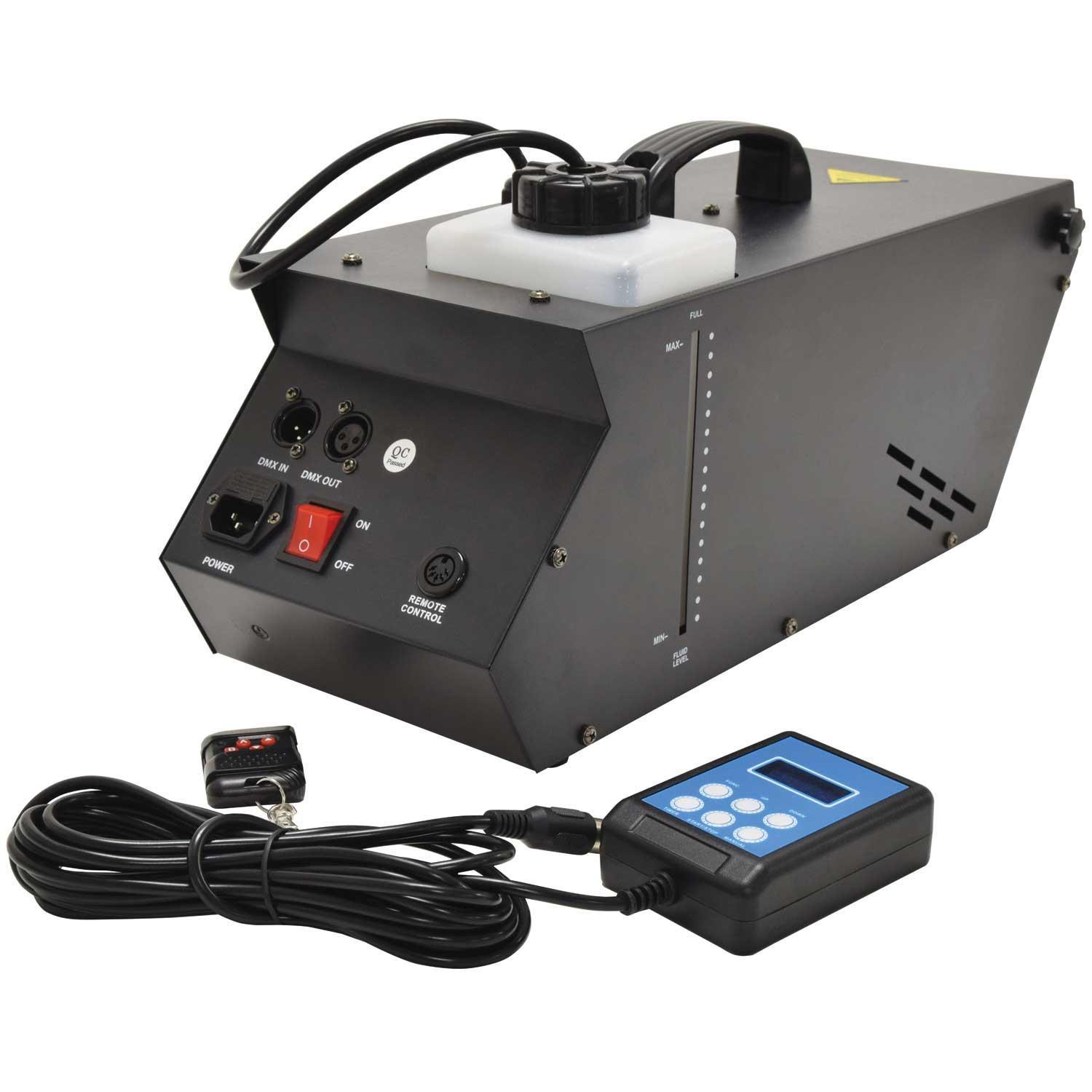

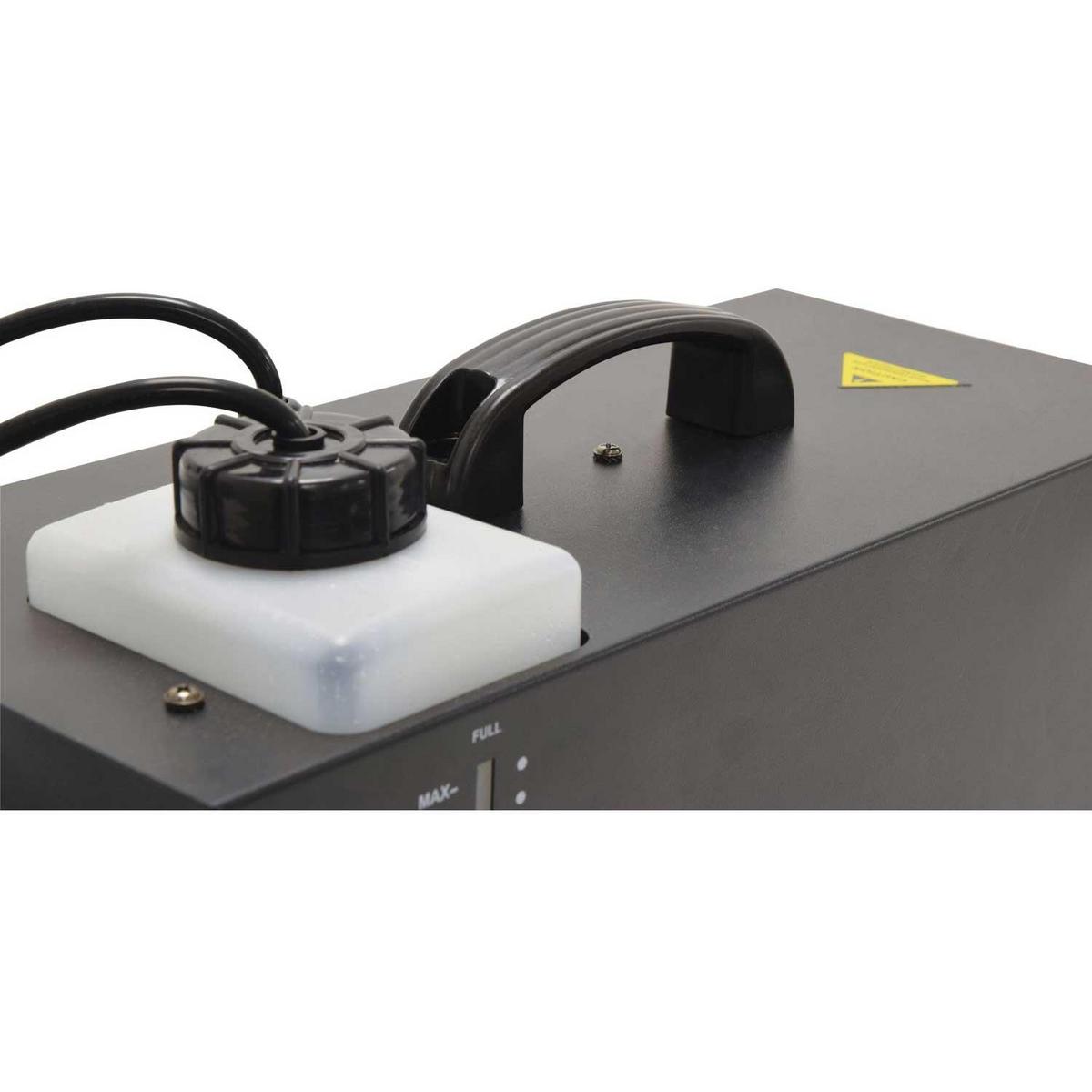

Engineered for reliability and ease of use, the HZ-800 features a robust metal chassis, an easily removable fluid tank and a wired controller with LCD display for precise output adjustment. A convenient fluid-level window allows quick monitoring, while the included 433MHz keyfob-style wireless remote provides hands-free activation. The unit integrates seamlessly into DMX-controlled lighting systems, making it perfect for professional environments.
| Specification | Details |
|---|---|
| Power Rating | 800W |
| Haze Output | Approx. 12,000 cu.ft/min (340m³/min) |
| Wired Controller | LCD display with output control |
| Wireless Remote | 433.92MHz keyfob-style RF remote |
| DMX Control | 2-channel DMX (output and fan) |
| Warm-Up Time | 3–5 minutes |
| Fluid Capacity | 1.2 litres, removable tank |
| Power Supply | 220–240V AC, 50/60Hz (IEC) |
| Fuse Rating | 5A |
| Dimensions | 485 × 195 × 230mm |
| Weight | 4.9kg |
The QTX HZ-800 delivers a consistent, fine haze that enhances lighting effects without creating dense fog, ensuring stage visibility and sharp beam definition. With rapid output, quiet operation and flexible control options, it suits DJs, venues, theatres and production companies. The removable fluid tank and intuitive controls make operation simple even during busy live events.
Q: How long does the haze machine take to warm up?
A: The HZ-800 is ready to operate in approximately 3–5 minutes.
Q: Can I control it wirelessly?
A: Yes, the included 433MHz RF keyfob remote allows wireless on/off control.
Q: Does it work with DMX?
A: Yes, it features a 2-channel DMX mode for output and fan speed control.
Q: Is the fluid tank removable?
A: Yes, the 1.2L tank can be detached for easy refilling and cleaning.
Q: How much haze does it output?
A: Approximately 12,000 cu.ft (340m³) per minute, ideal for mid-to-large spaces.
