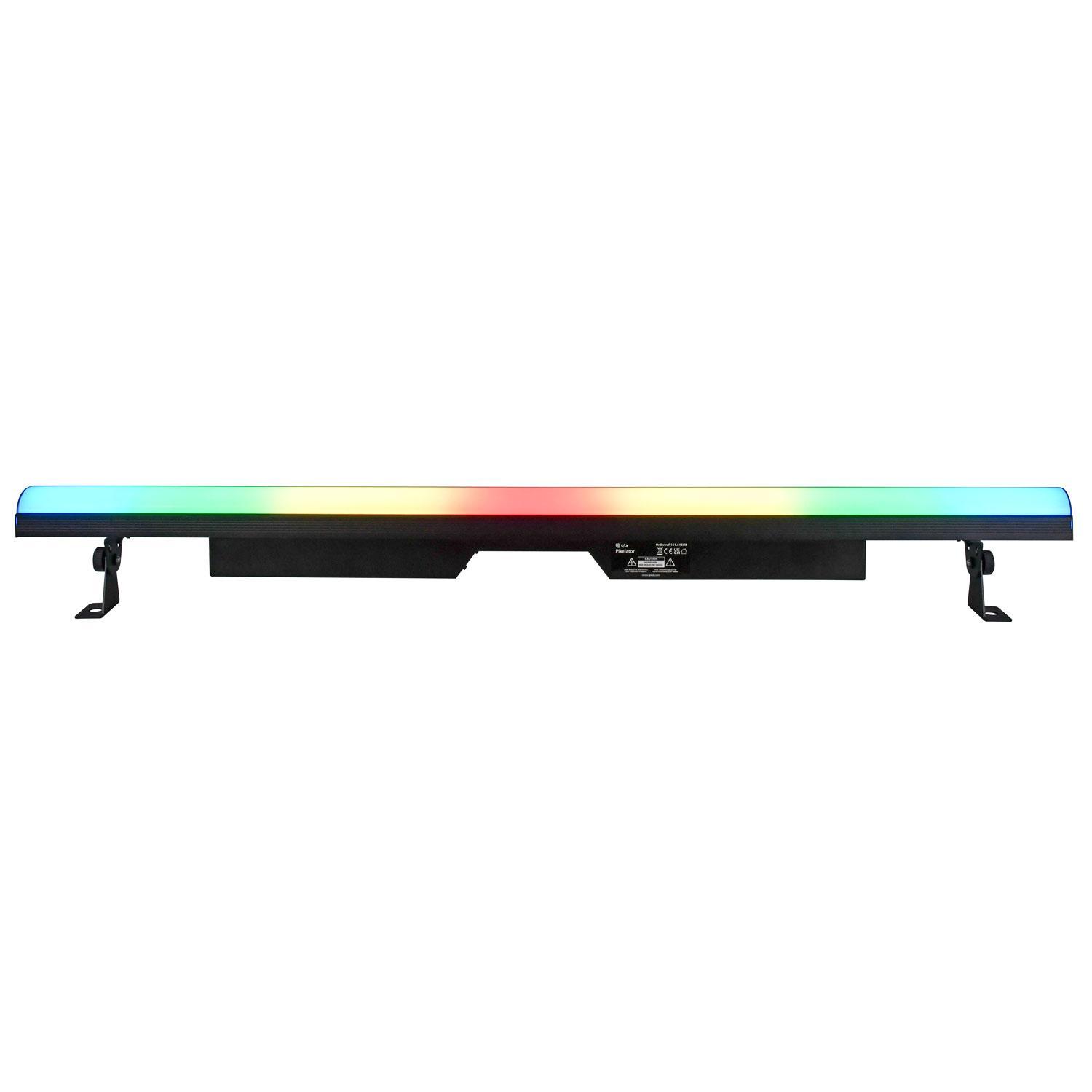

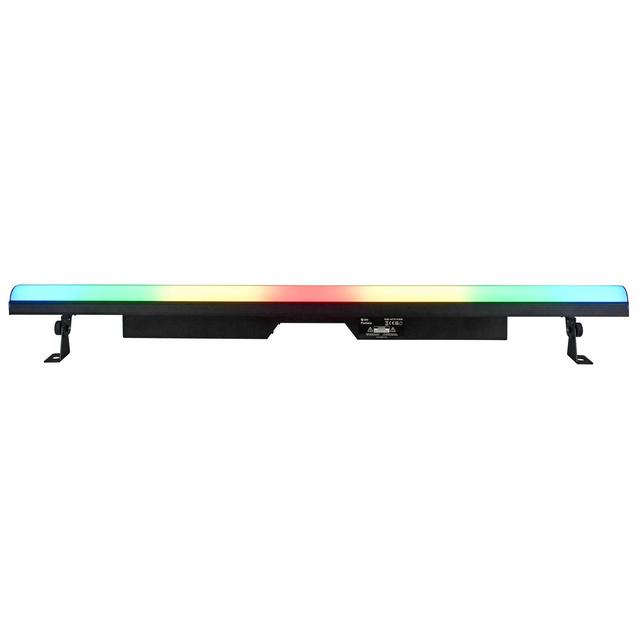

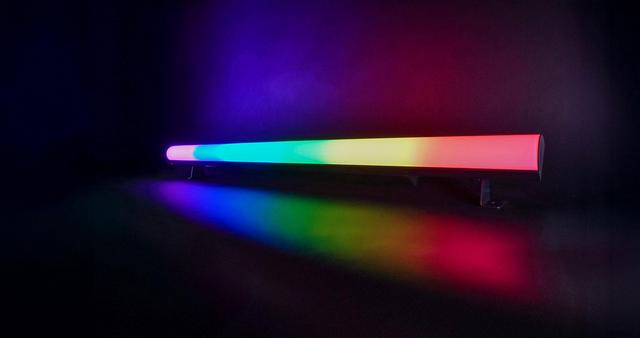

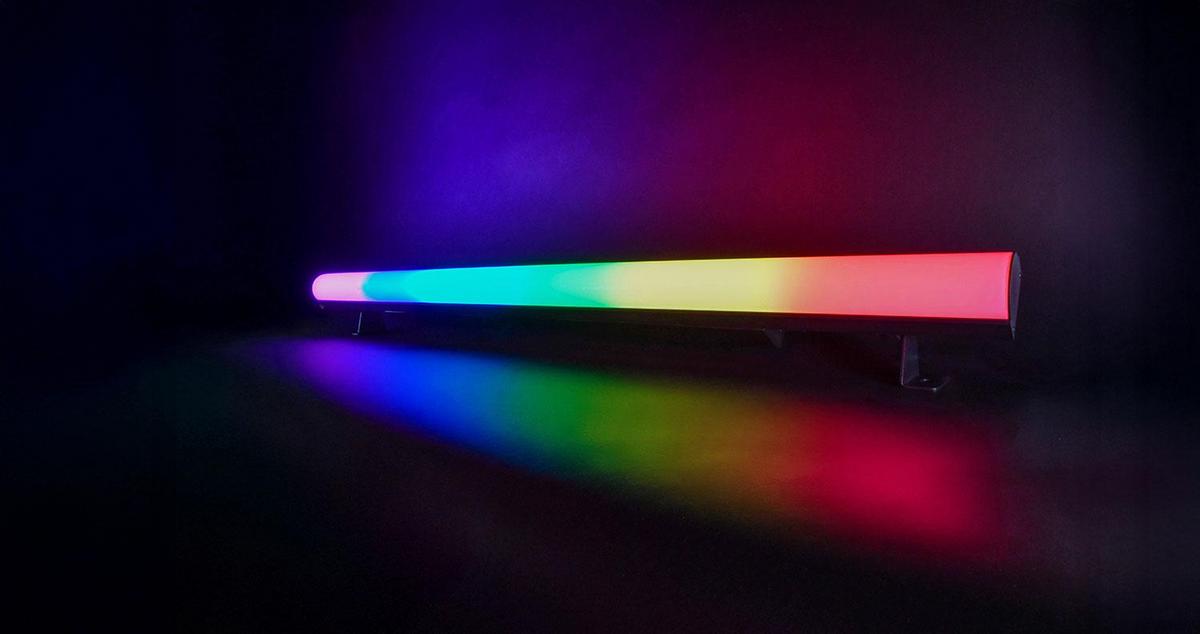

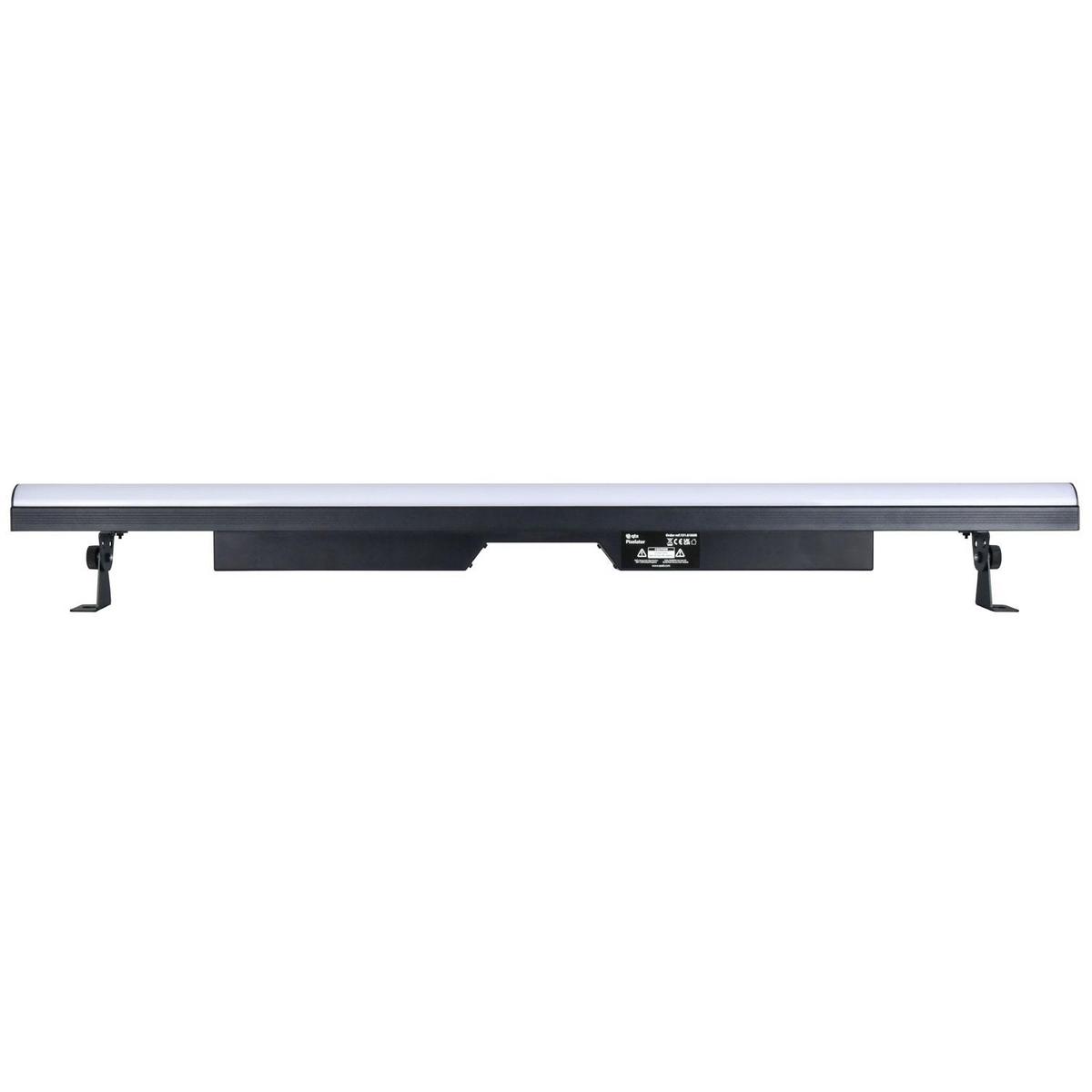

The Pixelator 144-LED Pixel Effects Bar delivers a vibrant and versatile lighting solution for clubs, events, stages, parties, and installations. Equipped with 144 high-output RGB SMD 5050 LEDs, it produces rich washes and pixel-mapping chase effects across a wide area. Operable in standalone auto and sound-active modes or via DMX control, the Pixelator offers creative lighting flexibility in a compact, easy-to-install package.

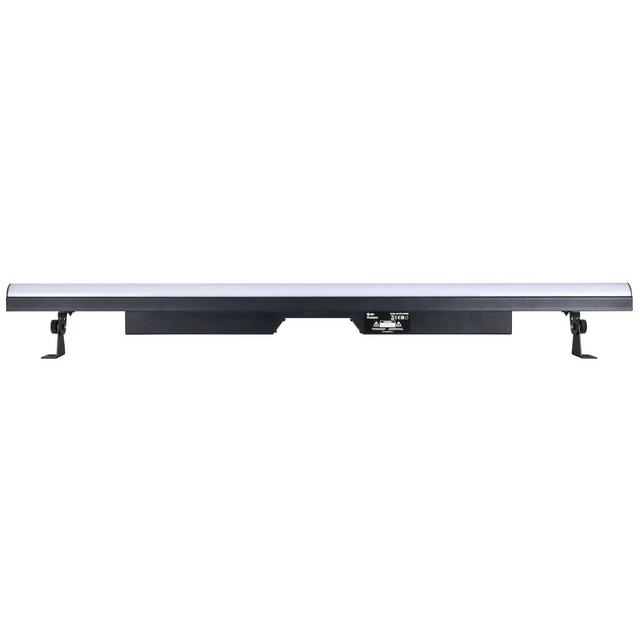

The bar features a robust housing with twist-lock power connections and dual mounting brackets, allowing for hanging, truss-mounting, or free-standing use. Its 1010 mm length and slim profile make it easy to integrate into existing lighting rigs, DJ setups, or installation venues. The unit is lightweight (≈ 1.54 kg) yet durable, making it convenient for both mobile and fixed installations.
| Specification | Details |
|---|---|
| LED Type | 144 × RGB SMD 5050 LEDs |
| Power Consumption | 60W |
| Power Supply | 110–240 V AC, 50/60Hz |
| DMX Channels | 3, 5, 8, 36 or 40 selectable |
| Operating Modes | Static colour, Auto, Sound-active, Master/Slave, DMX |
| Beam / Viewing Angle | 90° |
| Mounting Options | Hanging/truss mount or free-standing (brackets included) |

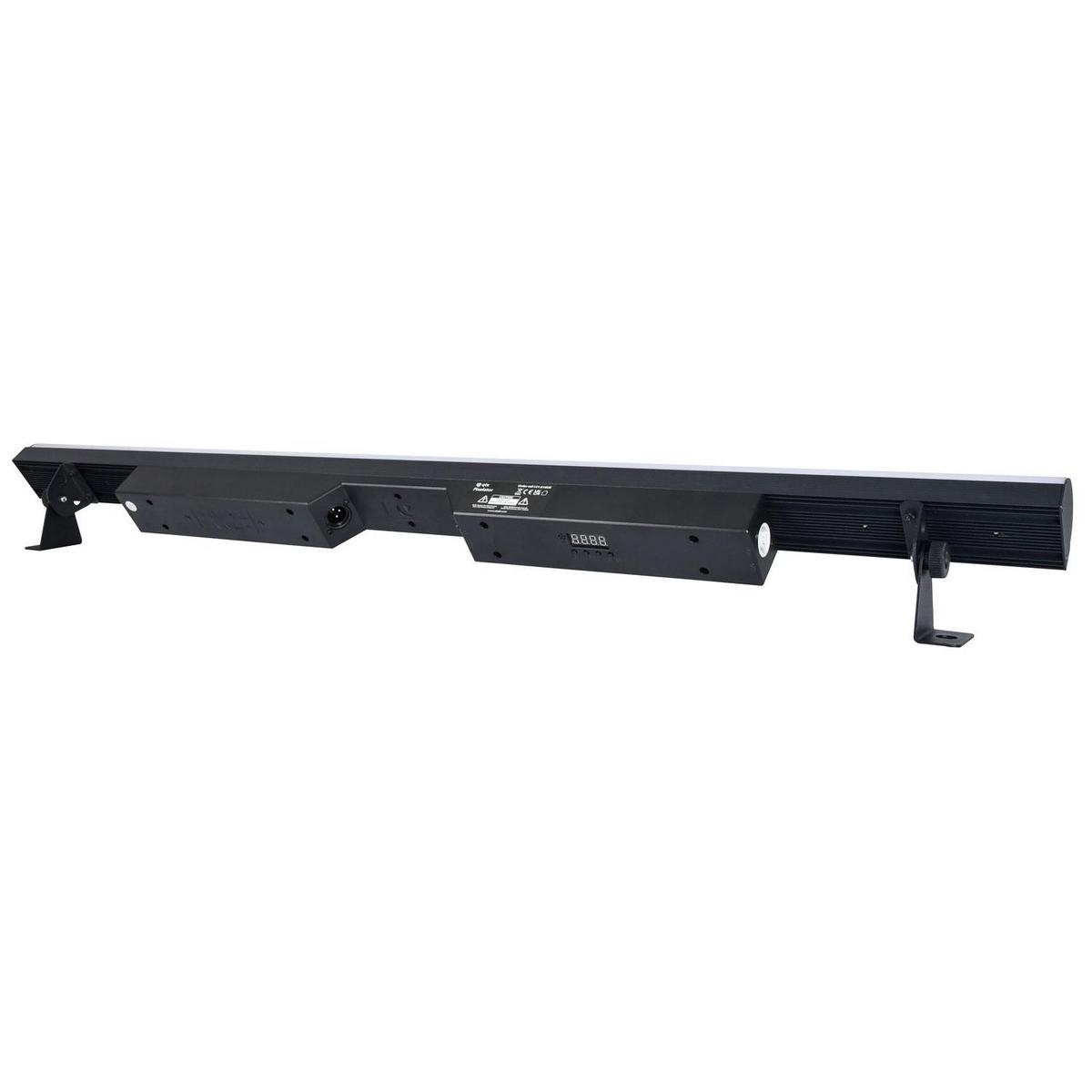

| Connections | Twist-lock power in/out, 3-pin XLR DMX in/out |
| Dimensions (H × W × D) | 60 × 80 × 1010 mm |
| Weight | ≈ 1.54 kg |
| Included Accessories | Power lead (twist-lock), dual mounting brackets, user guide |
The Pixelator 144-LED Effects Bar delivers bright, dynamic, and versatile lighting effects ideal for clubs, stages, DJs, events, and installations. Its strong LED output, flexible control modes (auto, sound-active, DMX), and master/slave chaining support both standalone and integrated lighting setups. Easy mounting, light weight, and professional power connections ensure quick and reliable installation — whether hung from truss, mounted on a wall, or placed on the floor.
Q: Does the Pixelator require an external controller?
A: Not necessarily. It includes built-in auto, show, and sound-active modes. For advanced control or synchronised multi-unit setups, DMX control can be employed.
Q: Can I link multiple units together?
A: Yes — units can be daisy-chained using the twist-lock power in/out and DMX in/out connections for coordinated multi-bar effects.
Q: Is it suitable for small venues or home use?
A: Absolutely — its 60W power draw and compact size make it suitable for small clubs, DJ booths, and event rooms, as well as larger venues when multiple units are combined.
