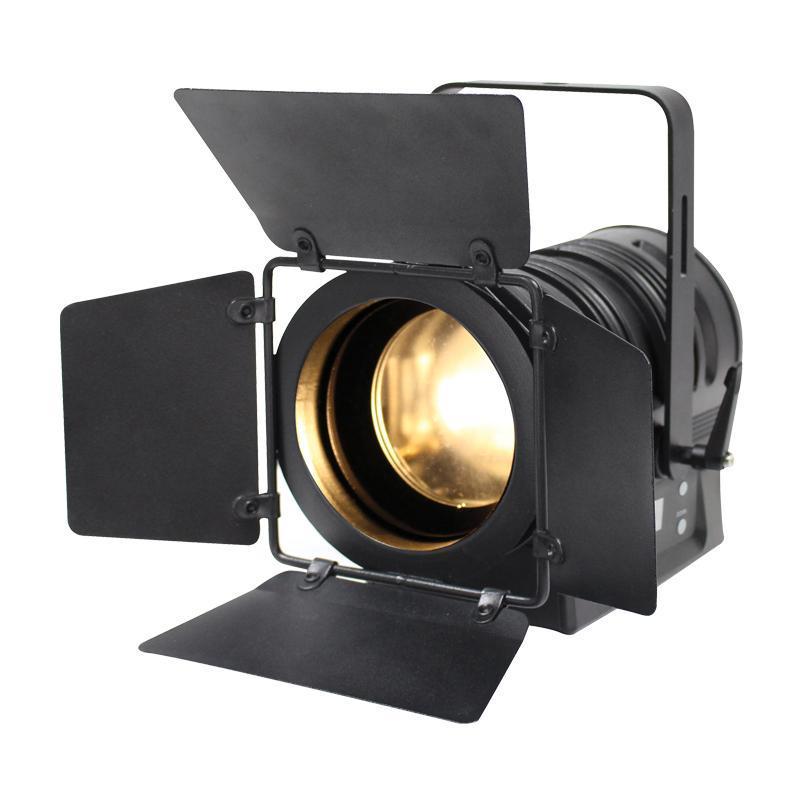

The Elumen8 MP60 LED Fresnel WW is a compact and robust stage lighting fixture, ideal for small stages, studios, and display lighting applications. Featuring a 60W warm white COB LED (3200K) and a convection-cooled design, it delivers smooth, flicker-free output with silent operation--perfect for noise-sensitive environments. The fixture provides a manually adjustable beam angle from 10 degrees to 50 degrees, offering versatile lighting solutions for a range of applications. With an intuitive control interface and comprehensive DMX/RDM support, the MP60 caters to both professionals and enthusiasts in need of dependable, professional-grade lighting.
Housed in a durable black casing, the MP60 is designed with convection cooling to ensure silent performance. It features a 4-button LCD interface for easy setting adjustments, and includes a filter frame and barn doors to shape and direct the light beam effectively. Its compact form factor (250 x 210 x 265mm) and lightweight construction (3.8kg) facilitate effortless handling and installation.
| Specification | Details |
|---|---|
| Power Source | 100~240V AC, 50/60Hz |
| Power Consumption | 70W |
| Light Source | 1 x 60W Warm White COB LED (3200K) |
| Beam Angle | 10 degrees-50 degrees (Manually Adjustable) |
| Luminous Intensity | 5475 Lux @ 2m (10 degrees), 1260 Lux @ 2m (50 degrees) |
| CRI | 91 |
| Refresh Rate | 1.8kHz |
| DMX Channels | 1 or 2 Selectable |
| Control Options | DMX, Manual, RDM |
| Dimming Curves | Linear, Square Law, Inverse Square Law, S-Curve |
| Cooling | Convection-Cooled |
| Connectors | PowerCON Input, 5-Pin XLR In/Out |
| Dimensions (H x W x D) | 250 x 210 x 265mm |
| Weight | 3.8kg |
The Elumen8 MP60 LED Fresnel WW delivers reliable, high-fidelity lighting with a warm white hue and a high CRI of 91. Its silent convection cooling makes it ideal for studios, theatres, and similar environments. Adjustable beam angles and versatile dimming options enable precise lighting control, while DMX and RDM compatibility ensures easy integration with existing setups.
Q: What is the beam angle range of the Elumen8 MP60 LED Fresnel WW?
A: The beam angle is manually adjustable between 10 degrees and 50 degrees, allowing for focused or wide light dispersion.
Q: Does the fixture support DMX control?
A: Yes, it supports both 1 and 2 channel DMX control modes, as well as RDM for remote device management.
Q: Is the fixture suitable for video recording environments?
A: Absolutely. With a refresh rate of 1.8kHz, it minimizes flicker, making it suitable for video applications.
Q: What accessories are included with the fixture?
A: It comes with a filter frame and barn doors, providing additional control over the light beam.
Q: How is the fixture cooled?
A: The MP60 uses a convection-cooled system, ensuring quiet operation without fans.
