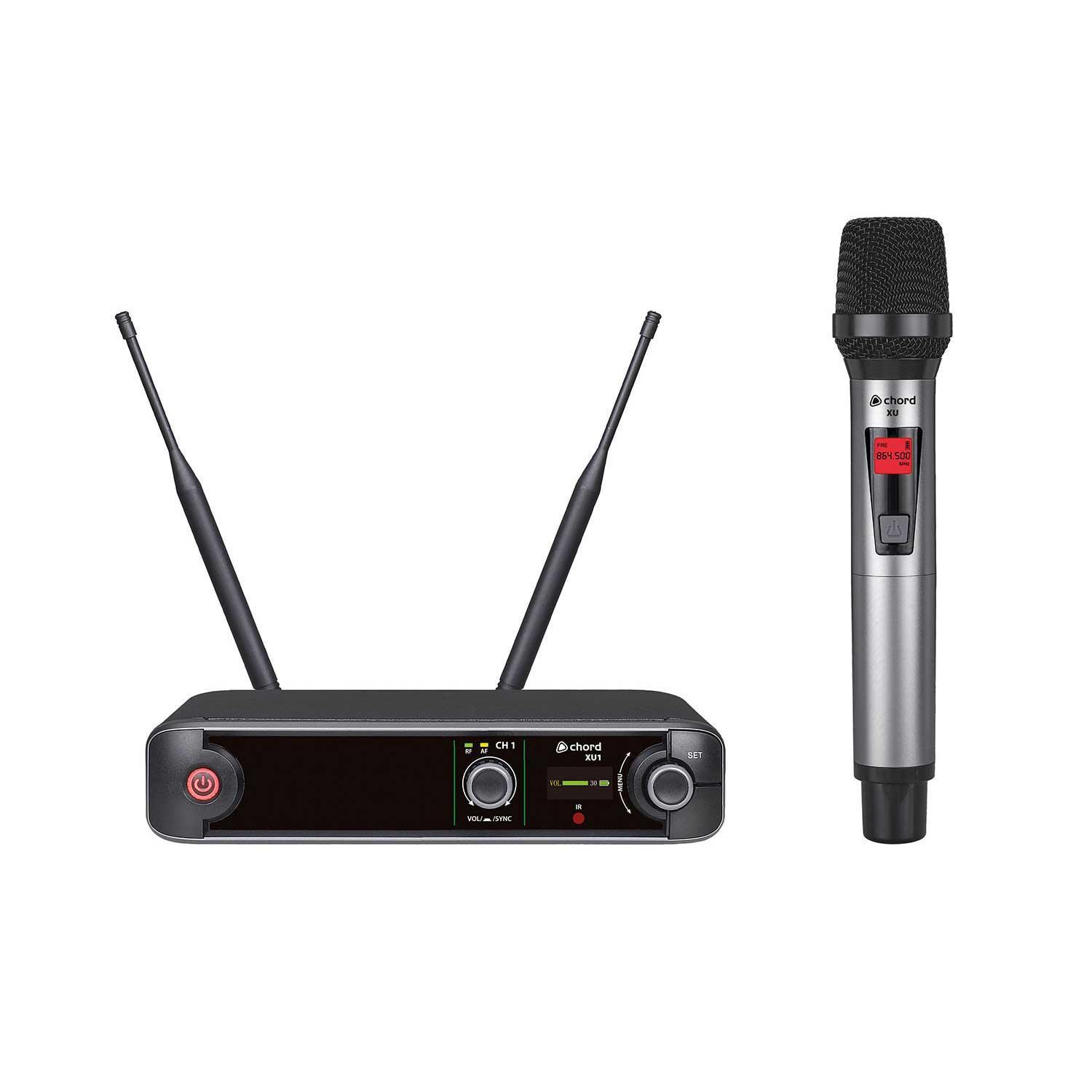

The Chord XU1-H UHF Wireless Microphone System is a compact, professional-grade solution designed for reliable and high-quality wireless audio. Featuring a true diversity receiver and premium handheld transmitter, it delivers stable performance for vocalists, presenters and instructors.
With intuitive controls, IR synchronisation and a clear TFT display, the XU1-H offers straightforward setup and dependable operation in a compact half-rack format.
The system uses true diversity technology with dual antennas and internal distribution to minimise signal dropouts and ensure stable wireless performance.

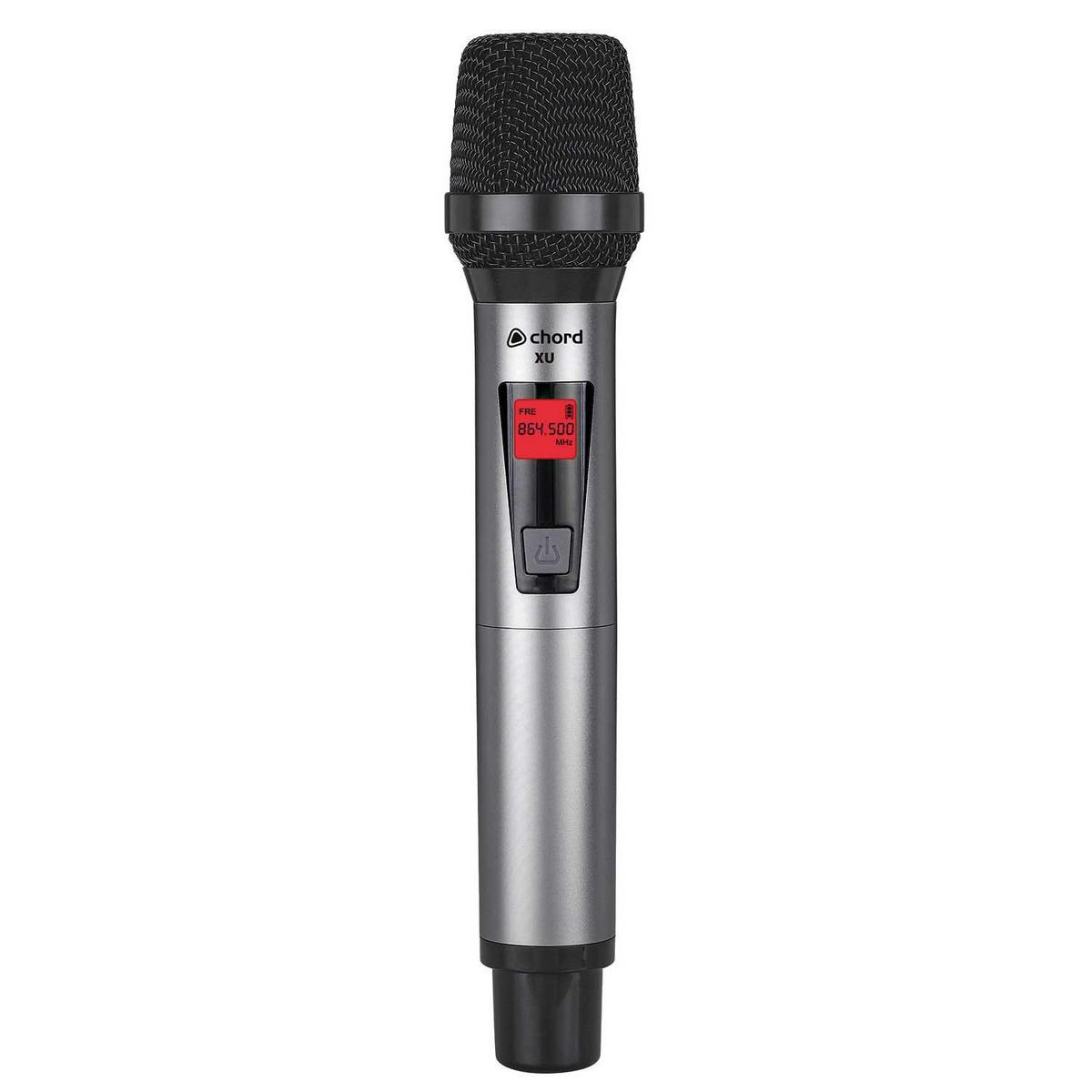

The included handheld microphone is designed for durability and performance, making it ideal for live use.
The XU1-H operates across licence-free UHF bands, offering flexibility and ease of use in UK and EU regions.

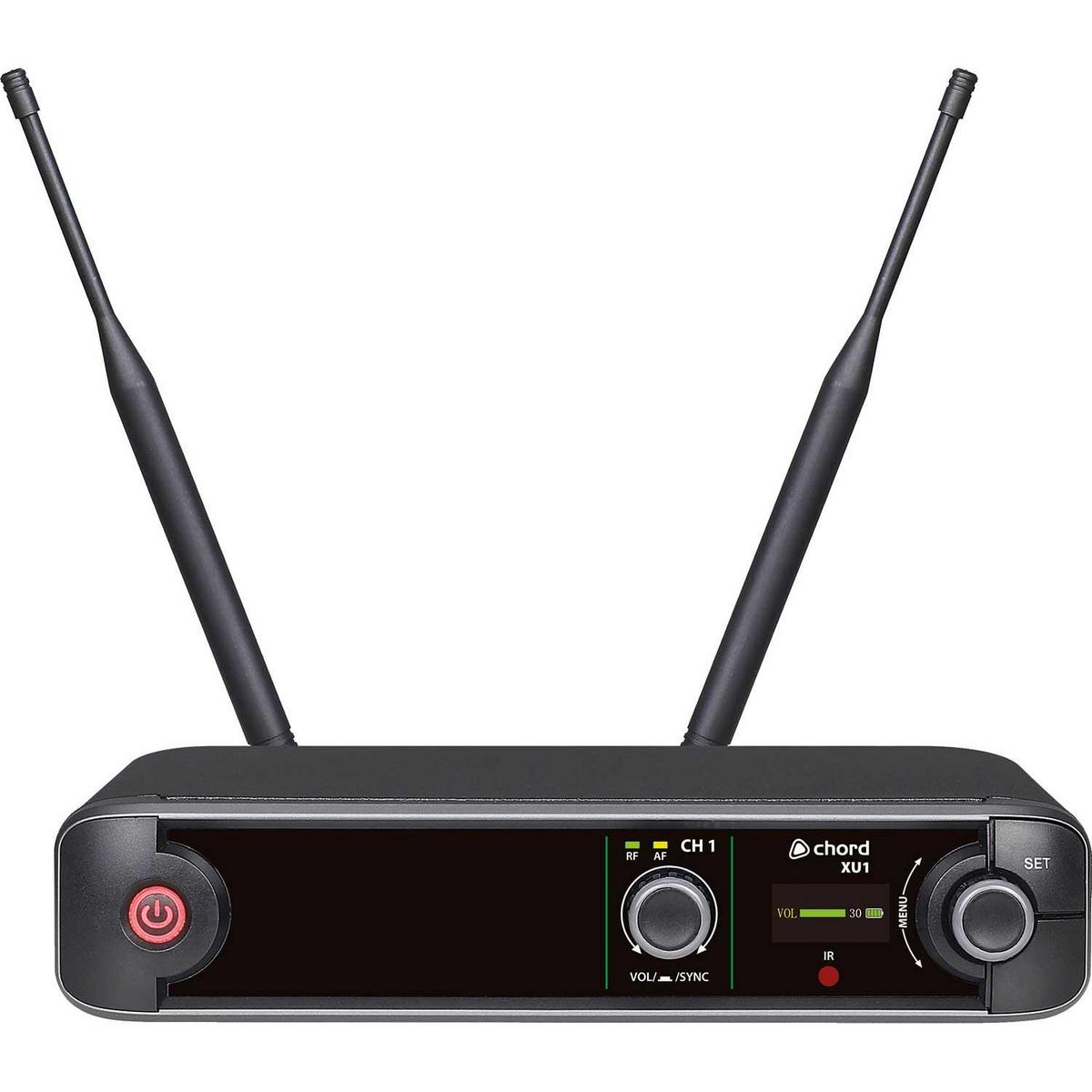

The receiver features a colour TFT display providing clear visibility of settings and signal levels for each channel.
Quick setup is achieved via IR sync, allowing settings to be transferred from the receiver to the transmitter instantly.

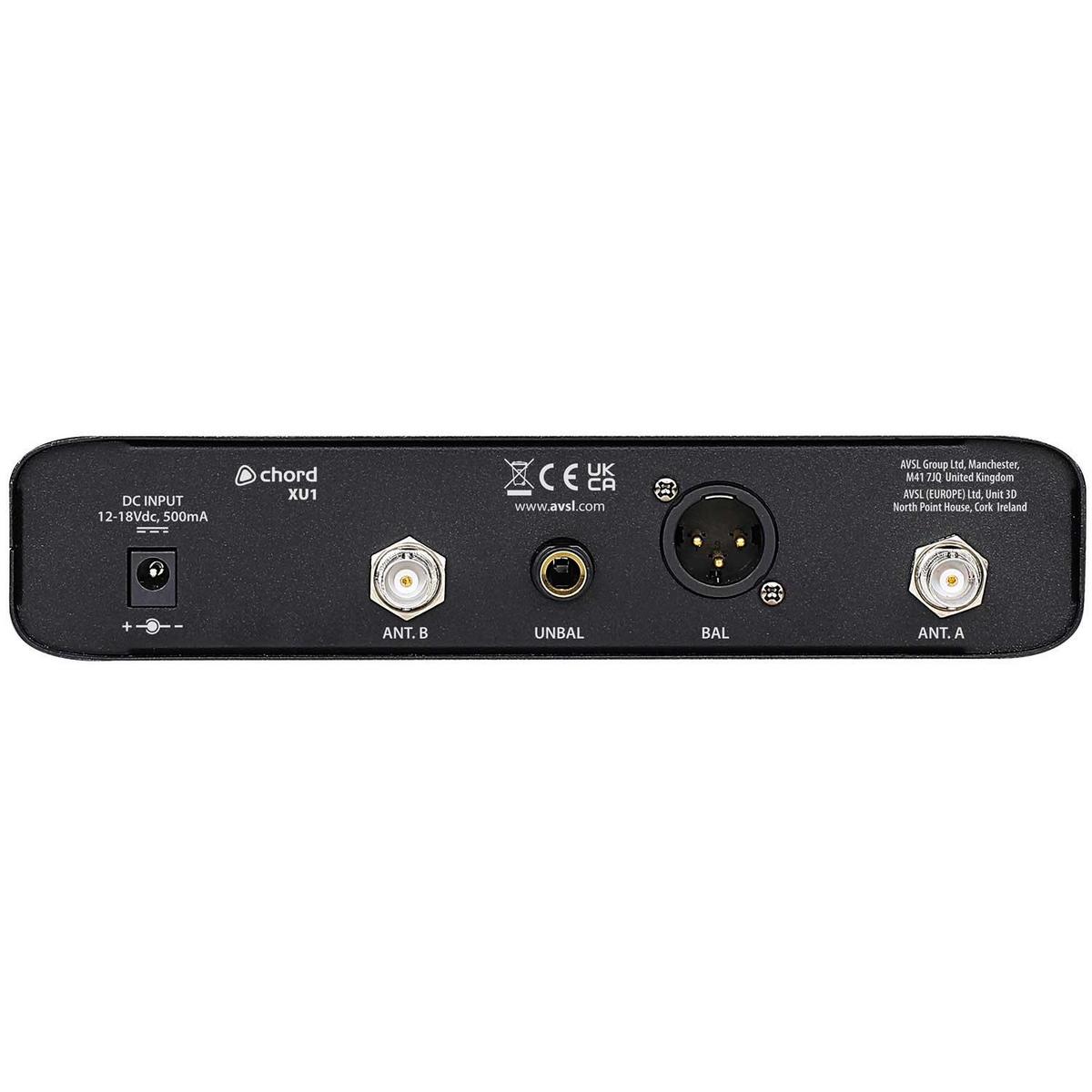

The system provides professional audio connectivity options for integration into a wide range of setups.
The half-width receiver is designed for efficient installation, with included hardware for rack mounting and antenna positioning.
| Specification | Details |
|---|---|
| System Type | UHF handheld wireless microphone system |
| Receiving Mode | True Diversity |
| Frequency Range | 823–832 MHz / 863–865 MHz |
| Selectable Frequencies | 10 groups, 9 channels per group |
| Wireless Range | Up to 60 m |
| Outputs | XLR (balanced), 6.3 mm jack (mixed) |
| Power Supply | 12–18 V DC, 500 mA (adapter supplied) |
| Transmitter Battery | 2 × AA |
| Receiver Dimensions | 205 × 205 × 44 mm |
| Receiver Weight | 755 g |
| Transmitter Dimensions | 258 × 47 mm Ø |
| Transmitter Weight | 246 g (no battery) |
The Chord XU1-H is ideal for live performances, presentations, fitness instruction, schools, houses of worship and conference environments where reliable wireless audio is essential.
Q: Is this system licence-free?
A: Yes, it operates on licence-free UHF frequencies in the UK and EU.
Q: Can it be rack mounted?
A: Yes, it includes hardware for mounting into a 1U rack space.
Q: What is the wireless range?
A: The system offers a wireless range of up to 60 metres under ideal conditions.
