The JTS CS-4 is a professional 4-channel automatic microphone mixer designed to simplify and optimise multi-microphone sound reinforcement systems. Engineered for fixed installations and scalable configurations, the CS-4 automatically manages microphone levels to deliver clear, consistent speech without the need for constant manual adjustment. It is ideally suited to corporate boardrooms, conference rooms, government buildings, houses of worship, and educational facilities.
Part of the highly flexible JTS CS Series, the CS-4 can be daisy-chained with an unlimited number of additional units, allowing system designers to build installations of virtually any size while maintaining reliable and intelligible audio performance.
Housed in a compact and robust metal enclosure, the CS-4 is designed for professional rack or desktop installation where reliability and long-term operation are essential. Each channel features individual gain control and switchable phantom power, ensuring compatibility with a wide range of condenser and dynamic microphones. Balanced XLR inputs and outputs provide clean, low-noise signal integrity throughout the system.

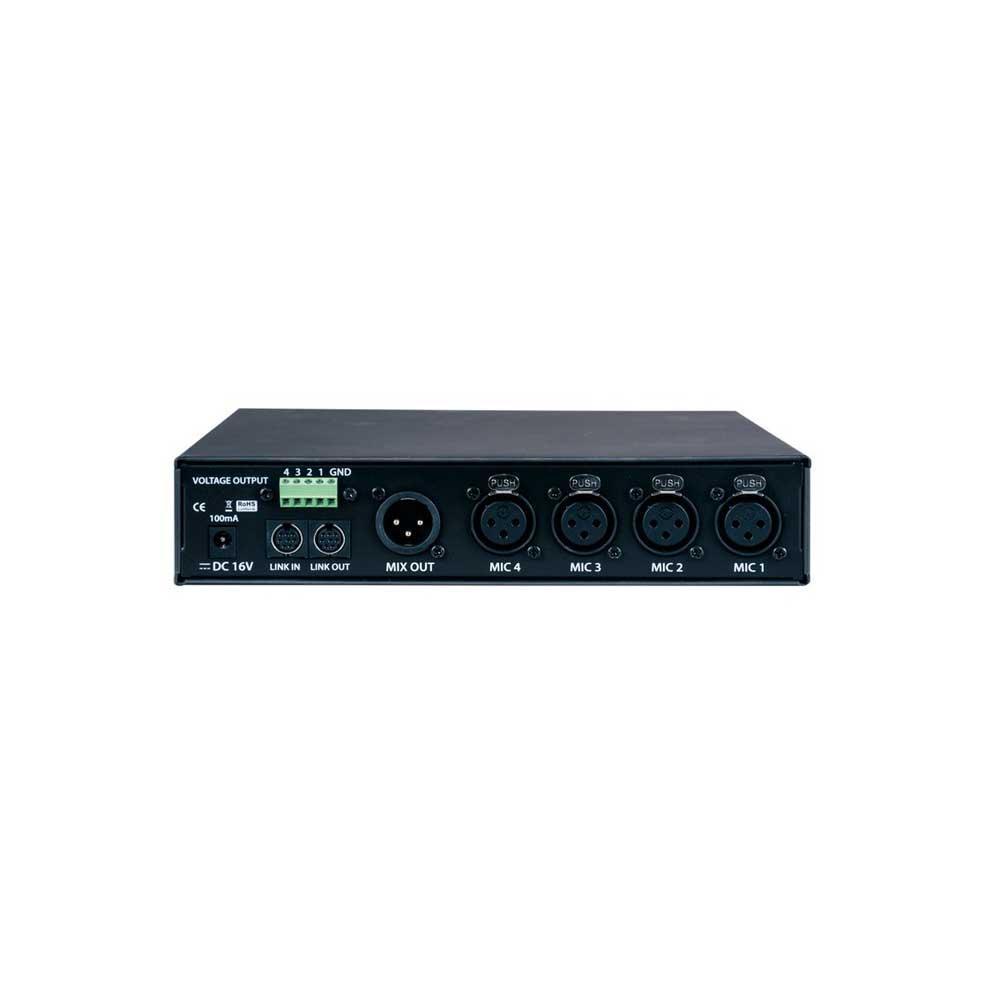

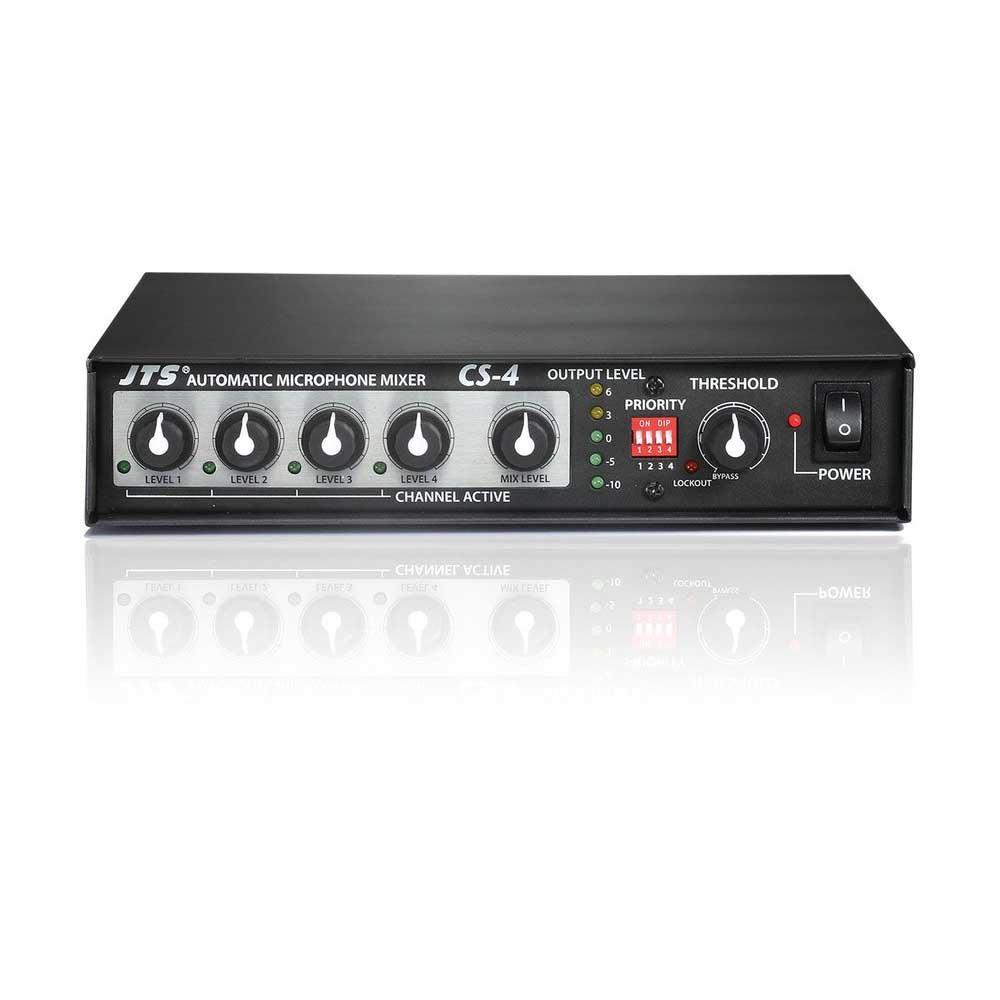

The intuitive front-panel layout allows installers and operators to configure the unit quickly, while rear-panel connectivity supports system expansion and external device control, such as speaker switching or camera triggering.
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| Frequency Response | 35 Hz – 20 kHz (±2 dB) |
| Signal-to-Noise Ratio | > 70 dB |
| Maximum Gain | ≥ 70 dB |
| Maximum Output Level | > +19 dB |
| Inputs | 4 × XLR (mic / line switchable) |
| Mic Input Impedance | 4.7 kΩ |
| Line Input Impedance | 20 kΩ |
| Outputs | XLR (mic / line selectable) |
| Mic Output Impedance | 300 Ω |
| Line Output Impedance | 200 Ω |
| Phantom Power | +12 V per channel |
| Control Voltage Output | +4 VDC ±0.3 V |
| Power Supply | 16 VDC, 100 mA (adapter included) |
| Power Consumption | 4.6 W |
| Dimensions (W × H × D) | 212 × 44 × 212 mm |
| Weight | 1.41 kg |
The JTS CS-4 delivers intelligent, hands-free microphone management that significantly improves speech clarity while reducing feedback in multi-microphone environments. Its automatic mixing logic ensures that only active microphones are opened, while the “last mic on” function preserves a natural sense of room ambience. With scalable expansion, flexible operating modes, and professional-grade audio performance, the CS-4 is an excellent choice for both small meeting rooms and large, complex installations.
Q: Can multiple CS-4 units be linked together?
A: Yes. The CS-4 supports daisy-chaining, allowing an unlimited number of units to be combined.
Q: Does the CS-4 support phantom-powered microphones?
A: Yes. Each channel provides switchable +12 V phantom power.
Q: What applications is the CS-4 best suited for?
A: It is ideal for boardrooms, conference rooms, classrooms, houses of worship, and government or corporate installations.
Q: Can it trigger external equipment?
A: Yes. A control voltage output is provided for triggering devices such as camera or speaker switching systems.
