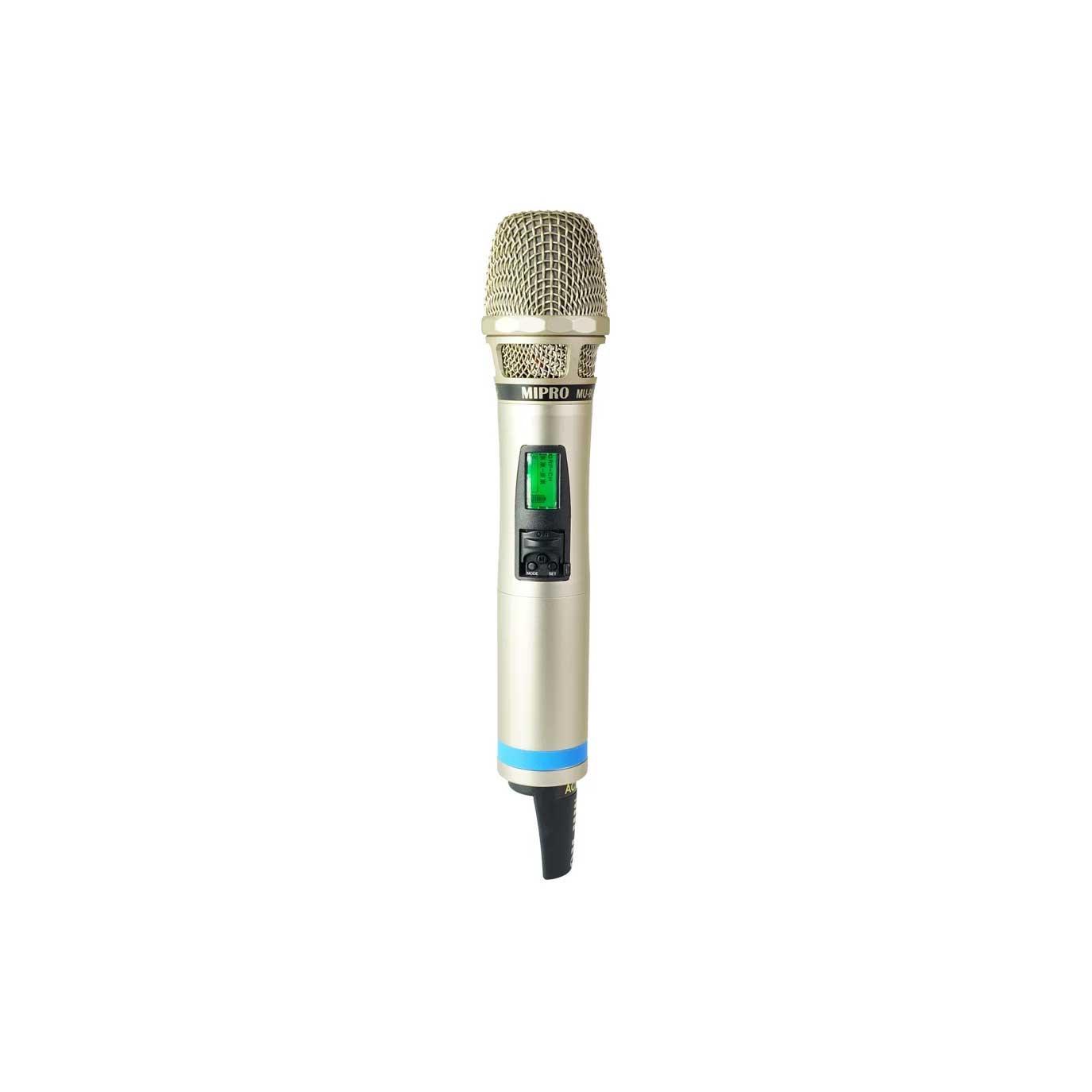

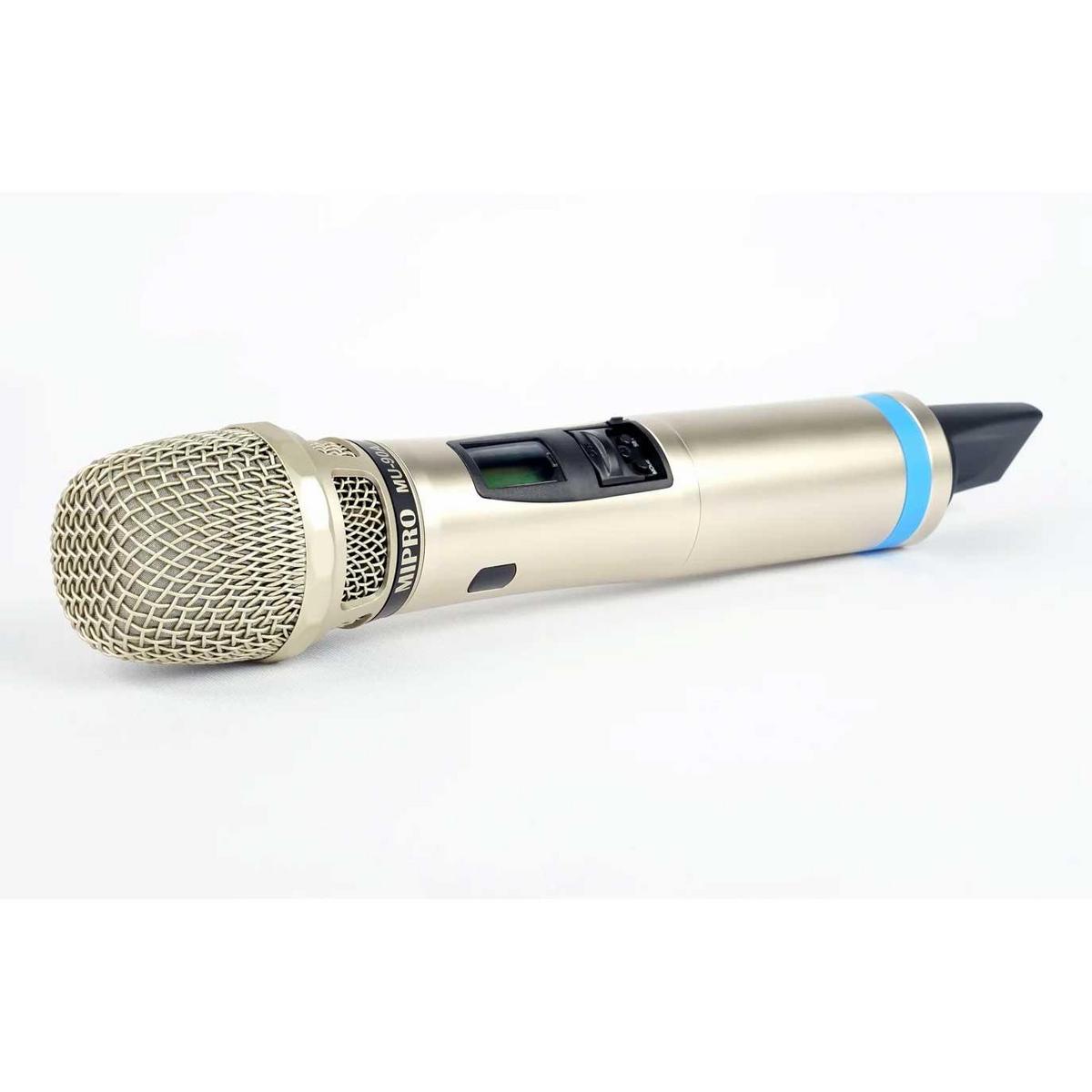

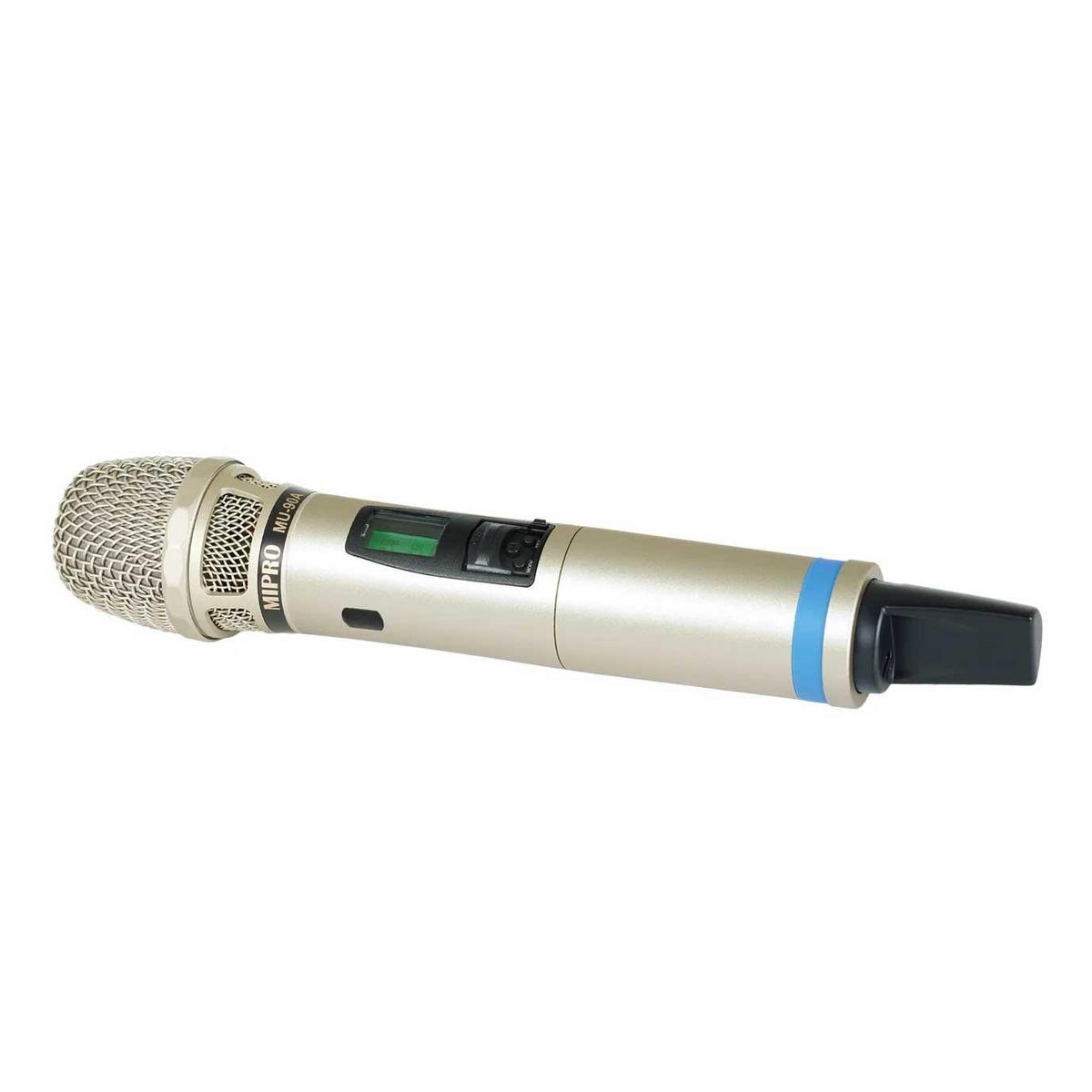

The MiPro ACT-800H is a high-end UHF digital wideband handheld transmitter designed to deliver professional-grade wireless performance for live stage, corporate presentation, and high-demand event applications. Built with a durable metal housing and engineered for ultra-low handling noise, it provides stable RF performance with 72 MHz wideband operation and secure 256-bit encryption. Featuring MIPRO’s patented multifunction control module and ACT™ frequency synchronisation, the ACT-800H supports interchangeable condenser and dynamic capsule modules, offering the flexibility required for a wide range of vocal styles and performance environments.
Constructed with an ergonomic champagne gold-finished metal housing, the ACT-800H delivers a comfortable, confident grip with a refined professional finish. Its rugged build is designed to withstand demanding stage conditions while maintaining minimal handling noise for cleaner vocal capture. The patented multifunction control module integrates the power switch, mute control, setting keys, LCD display, and a locking slider to prevent accidental adjustments during performance. A uniquely designed capsule structure includes a removable upper grille for easy cleaning and a threaded lower grille for enhanced protection against impact, rolling, pop noise, and stage wear.
| Specification | Details |
|---|---|
| Product Brand | MiPro |
| Model | ACT-800H |
| Product Type | UHF Digital Wideband Handheld Transmitter |
| Frequency Range | UHF 480–934 MHz (country dependent) |
| Bandwidth | 72 MHz |

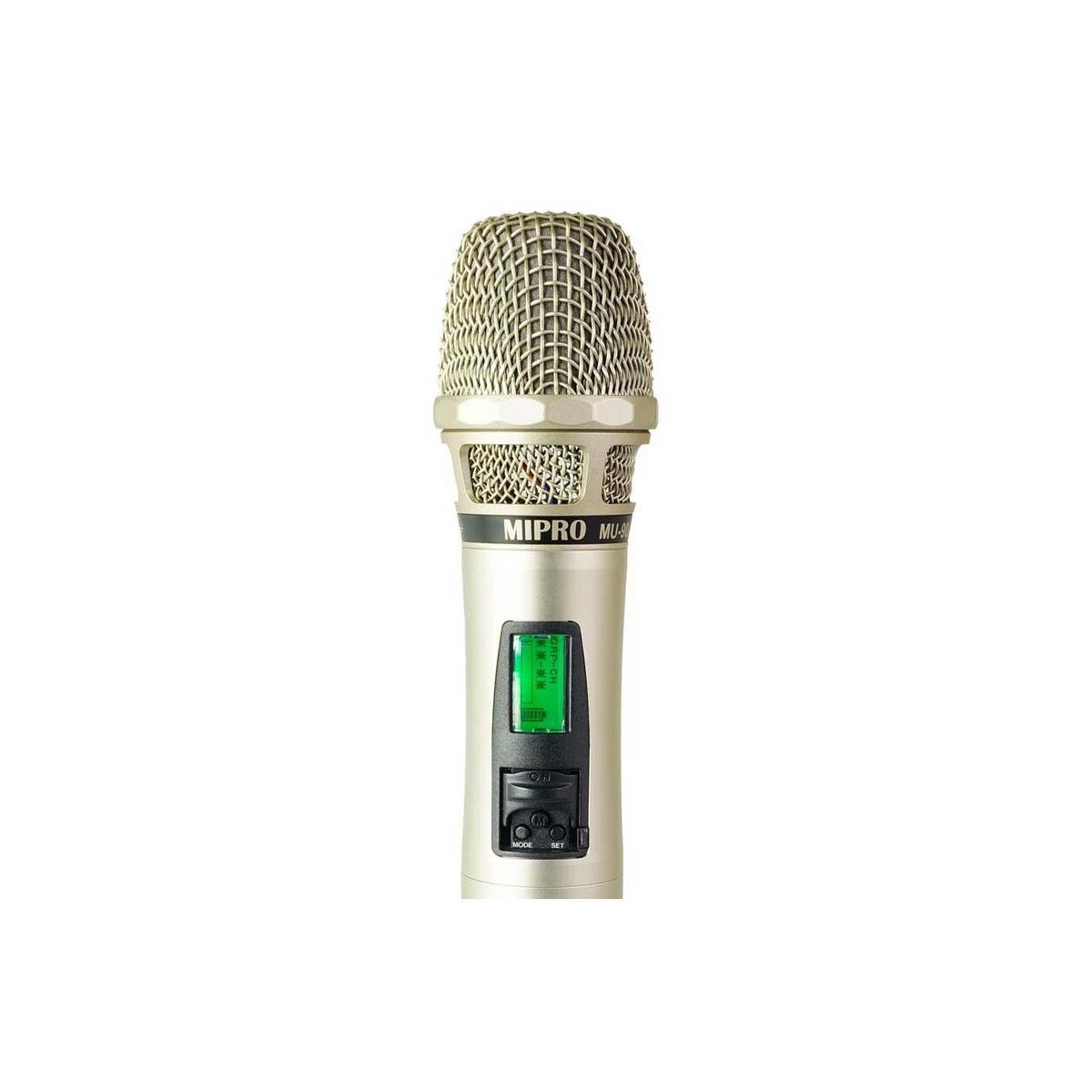

| Display | Backlit LCD displays channel, battery status, AF signal levels, and settings menu |
| Control Interface | ACT sync sensor, setting buttons, and mute button |
| Encryption | 256-bit |
| Mic Capsule Modules | MU-90A condenser or other compatible capsule modules |
| Audio Control | AF gain, low-cut filter, and AF limiter |
| Gain Setting | 0 dB to +6 dB / 3 dB per segment |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Power Supply | One 18500 Li-ion battery or two AA alkaline |

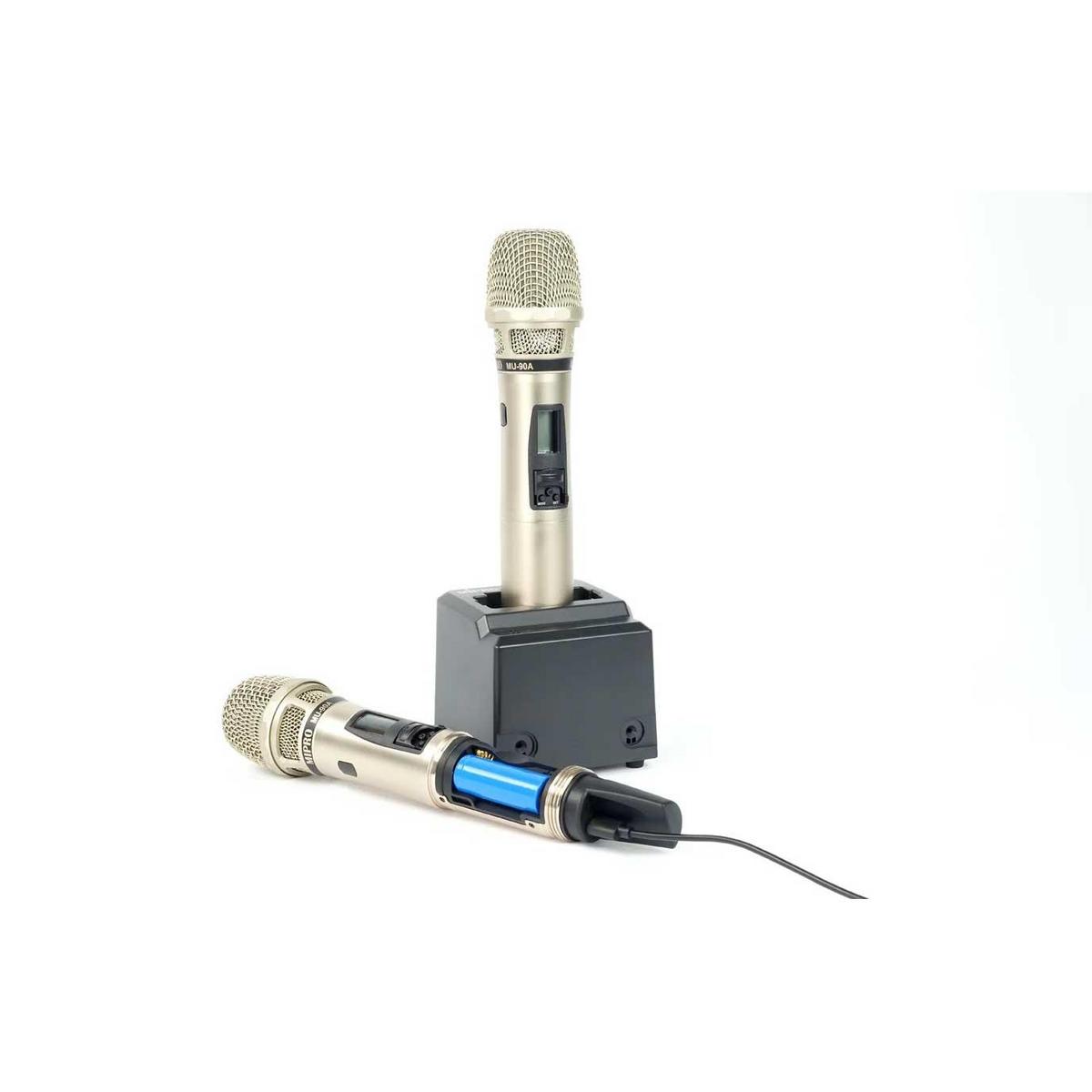

| Battery Charging | MP-800 / MP-820 charging dock or USB Type-C |
| Dimensions | 51 × 272 mm (Ø × L) |
| Weight | Approx. 331 g |
The MiPro ACT-800H is designed to deliver consistent, high-quality vocal performance in professional wireless environments where reliability and clarity are essential. Its wideband digital transmission and selectable RF power output support stable performance across varied venue conditions, while advanced onboard controls such as AF gain, low-cut filtering, and audio limiting help maintain clean sound and reduce unwanted noise or distortion. With fast ACT™ synchronisation, interchangeable capsule flexibility, and support for AA or rechargeable Li-ion power with USB-C charging, the ACT-800H offers a dependable workflow for touring, events, places of worship, and high-end AV installations.
Q: Is the MiPro ACT-800H compatible with ACT-800 Series receivers?
A: Yes, the ACT-800H is designed specifically for use with MiPro ACT-800 Series digital receivers for seamless performance and compatibility.
Q: What microphone capsule is included with the ACT-800H?
A: It comes standard with the MU-90A supercardioid condenser capsule module, and supports interchangeable capsule options.
Q: Can I use both rechargeable and standard batteries?

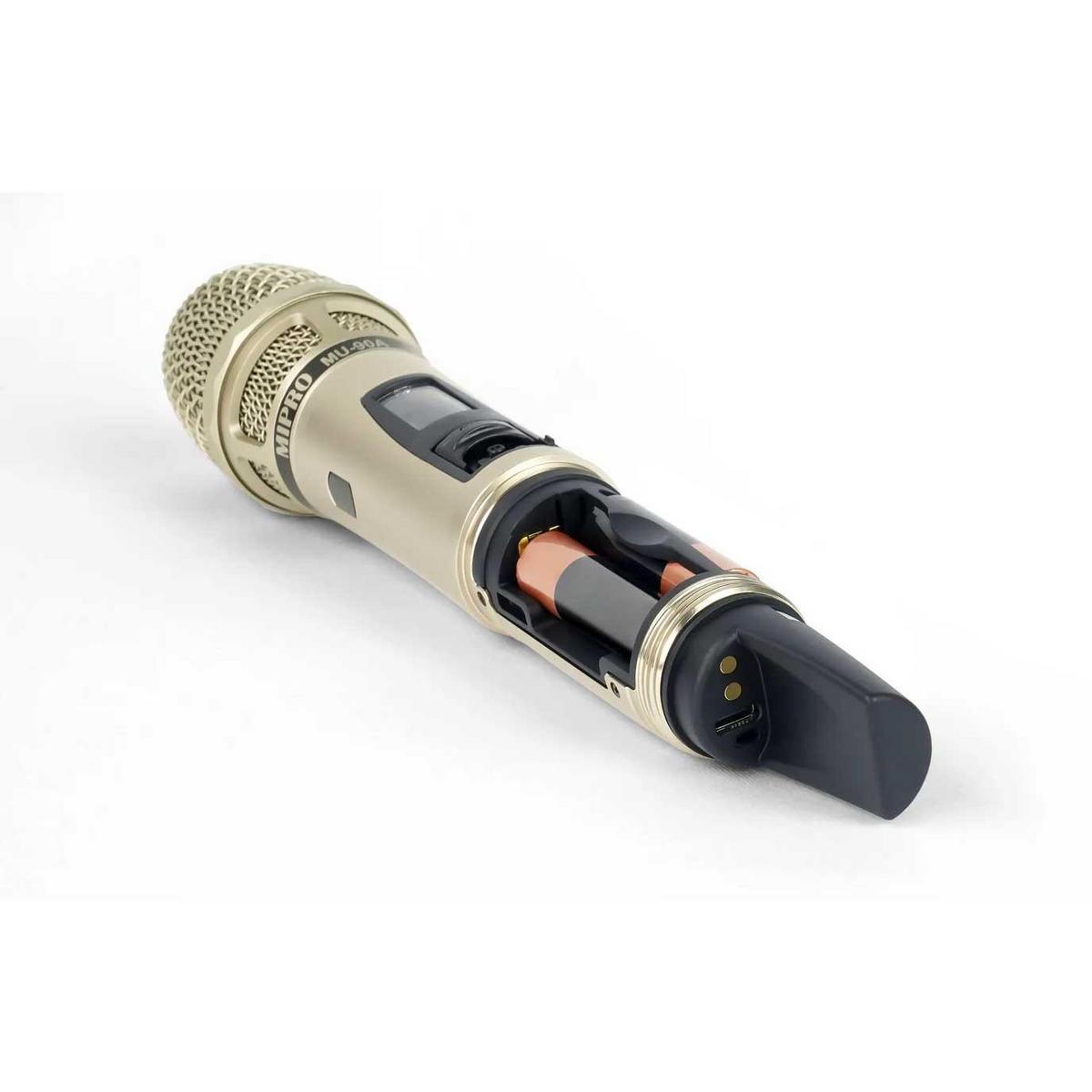

A: Yes, it supports one 18500 Li-ion rechargeable battery or two AA alkaline batteries using its dual-purpose battery compartment.
Q: Does the ACT-800H support fast frequency synchronisation?
A: Yes, it includes MIPRO’s ACT™ function for fast and accurate frequency synchronisation with compatible receivers.
Q: What audio controls are available on the transmitter?
A: The ACT-800H supports AF gain adjustment, a low-cut filter, and an AF limiter for optimised vocal performance and signal control.
