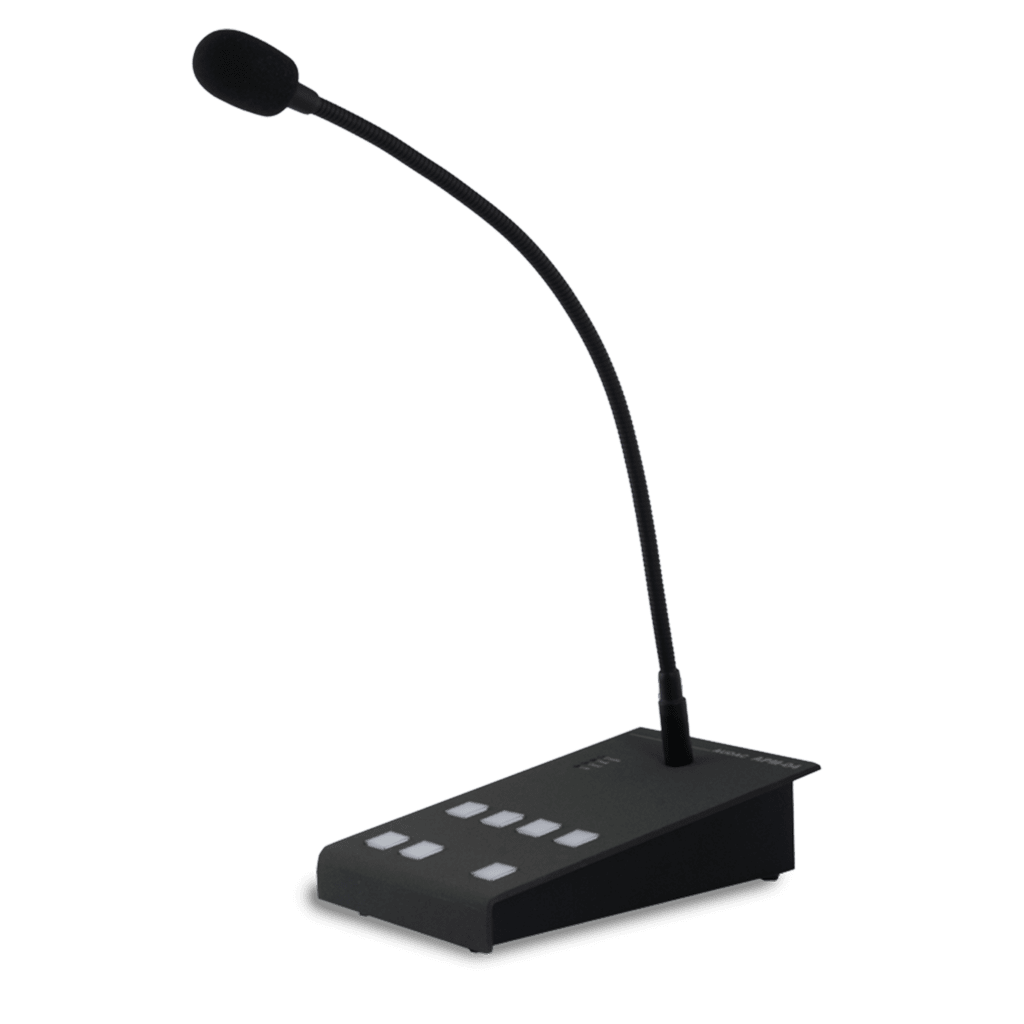

Audac AMP104MK2 4 Zone Digital Paging Microphone

The APM104 is a digital paging microphone for 4 zones which is equipped with a condenser element with cardioid characteristic, mounted on a 30 cm gooseneck. By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel, to ensure the speaker that the message is clear and audible in all situations. The console has 4 zone selection buttons and three standard buttons with preassigned functions: PTT (Push To Talk), select all and clear. The functions can be freely programmed by using the APM configuration software. In combination with the AUDAC ARU relay groups, the APM paging consoles offer a wide range of possibilities.

Specifications:

• Polar Pattern Cardioid (unidirectional)
• Sensitivity (1W/1m) -42 dB
• Indicators 3 Colours illuminated push button
• Level & status indication LED’s
• Internal storage 10 minutes audio or messages spread over max 30 files
• Connectors RJ45 (data + Power)
• Connection standard TIA/EIA T568B
• Buttons 4 x programmable zone/function
• 1 x PTT (push-to-talk)
• 1 x select & clear all
• Microphone Type Back electret condenser
• Gooseneck length 350 mm
• Frequency Response (± 3 dB) 100 Hz - 20 kHz
• Power Consumption 4.8 W (max.)
• Supply 24 V DC (min. 16V DC)
• Max. cable length Without external PSU 113 m
• With external PSU 300 m
• Dimensions 120 x 55 x 190 mm (W x H x D)
• Weight 1.350 kg
• Data protocol RS-485
• Audio protocol Analogue
• Digital (configurable)
• Colours Grey metallic front panel
• Construction Steel
• Required cabling Analog UTP CAT5E
• Digital UTP CAT6
• Accessories Included Windscreen (MWS05/B)
• Optional ARJ03P junction box
• CP45ARJ RJ45 junction plate
• PSD24x external Power supply
