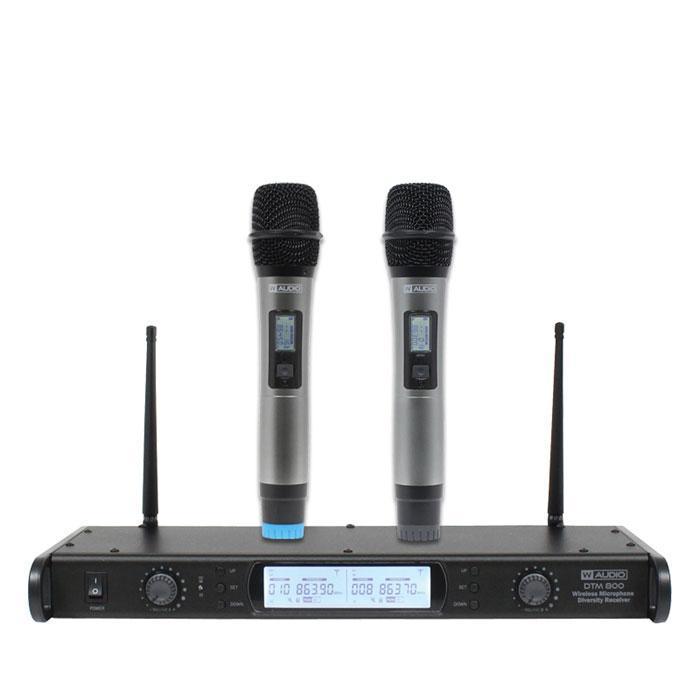

The DTM 800H V2 is a professional twin handheld UHF wireless microphone system designed for performers, presenters, and venues requiring clear audio, stable wireless connectivity, and robust construction. Operating in the Channel 70 licence-free band (863.0-865.0 MHz), the system provides 20 selectable frequencies with true diversity reception, ensuring excellent RF stability. Supplied with two handheld microphones, a full-width rack-mountable receiver, and all necessary accessories, the DTM 800H is a reliable solution for stage, corporate, and live sound environments.

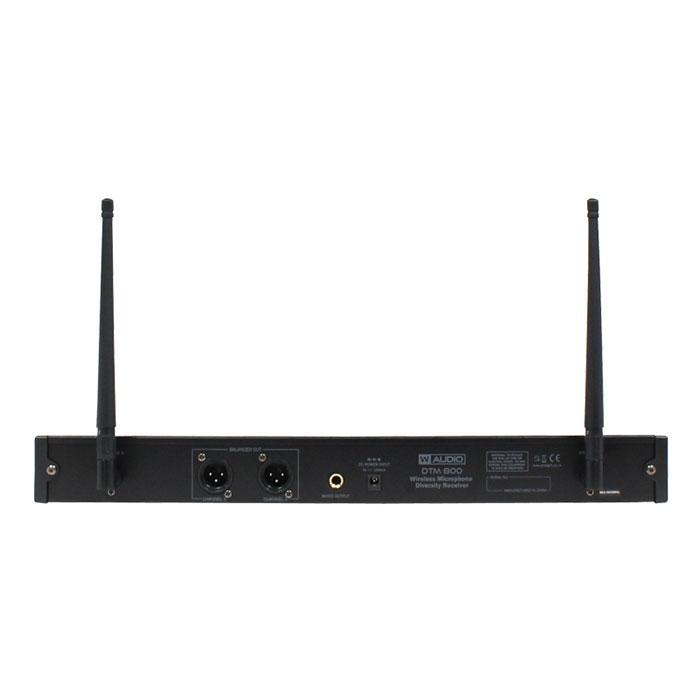

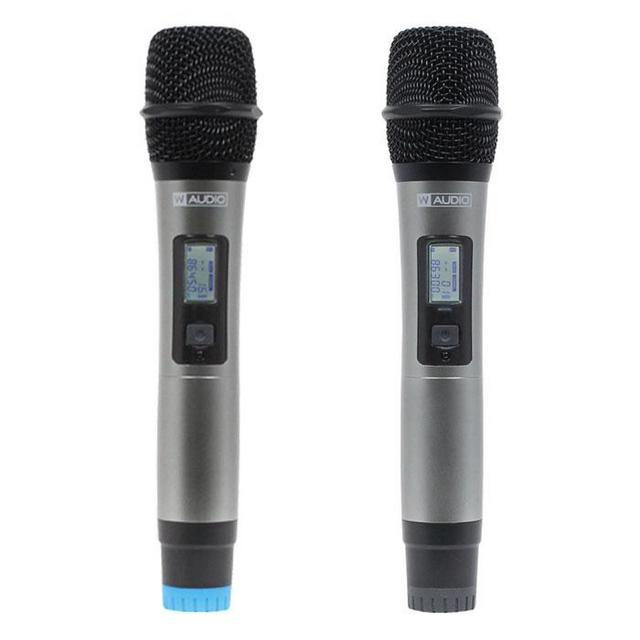

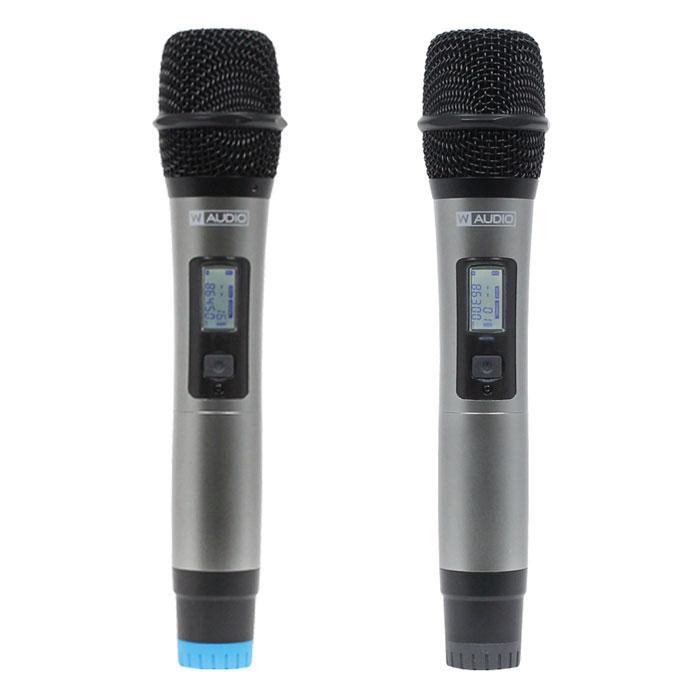

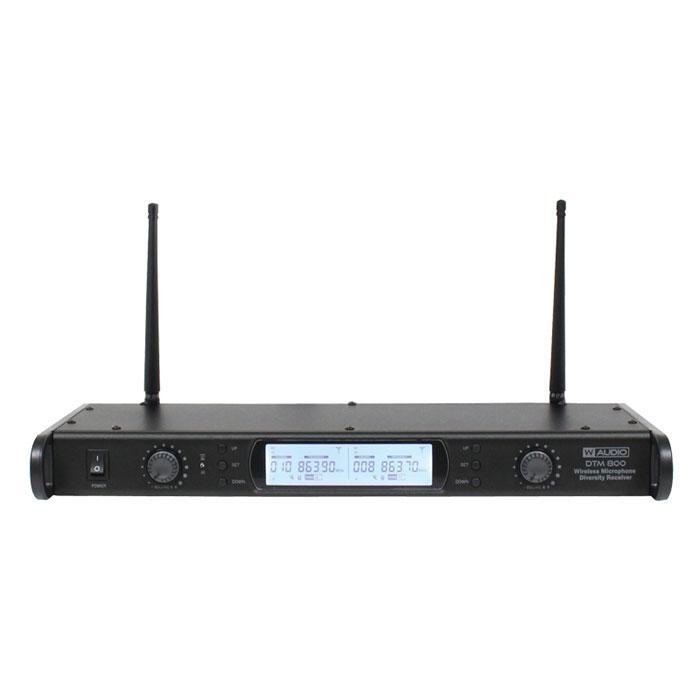

Engineered for professional touring and installation use, the system includes a full-width 19" rack-mountable receiver with a large LCD display showing RF level, AF level, channel, and frequency. The handheld transmitters feature a durable metal body and a rugged yet ergonomic design for ease of use. The removable BNC antennas allow easy integration into antenna distribution systems, while the balanced and unbalanced outputs ensure compatibility with a wide range of mixers and PA systems.
| Specification | Details |
|---|---|
| Frequency Range | 863.0-865.0 MHz (Channel 70, licence-free) |
| Selectable Frequencies | 20 |
| Frequency Response | 40 Hz-15 kHz |
| Dynamic Range | 96 dB |
| Audio Output Level | 400 mV |
| Outputs | Balanced XLR (per channel), unbalanced mixed output |
| Receiver Power Supply | 9-12 V DC (adaptor supplied) |
| Receiver Dimensions | 50 × 420 × 210 mm |
| Microphone Dimensions | 260 × 50 × 50 mm |
| Microphone Power | 2 × 1.5 V AA batteries (not supplied) |
| Included Accessories | 1 × receiver, 2 × handheld microphones, PSU, audio cable, user manual |
The DTM 800H V2 delivers clear, natural audio with a wide frequency response, ensuring accurate vocal reproduction for singers and speakers. Its true diversity receiver guarantees stable wireless operation, even in challenging RF environments. Setup is straightforward thanks to the IR sync feature and automatic frequency scanning. With its rugged construction and rack-mountable receiver, this system is built for the demands of live performance, conferences, and professional installations.
Q: Is the DTM 800H licence-free in the UK?
A: Yes, it operates in the Channel 70 (863-865 MHz) band, which is licence-free in the UK.
Q: How many microphones are included?
A: The package includes two handheld wireless microphones.
Q: Can I use multiple systems at the same time?
A: Yes, up to two DTM 800H V2 systems can be used simultaneously without interference.
Q: How do I sync the microphones to the receiver?
A: The system includes IR sync functionality for quick and easy frequency matching.
Q: What type of outputs does the receiver have?
A: Each channel has its own balanced XLR output, plus there is a mixed unbalanced output for simplified connections.
