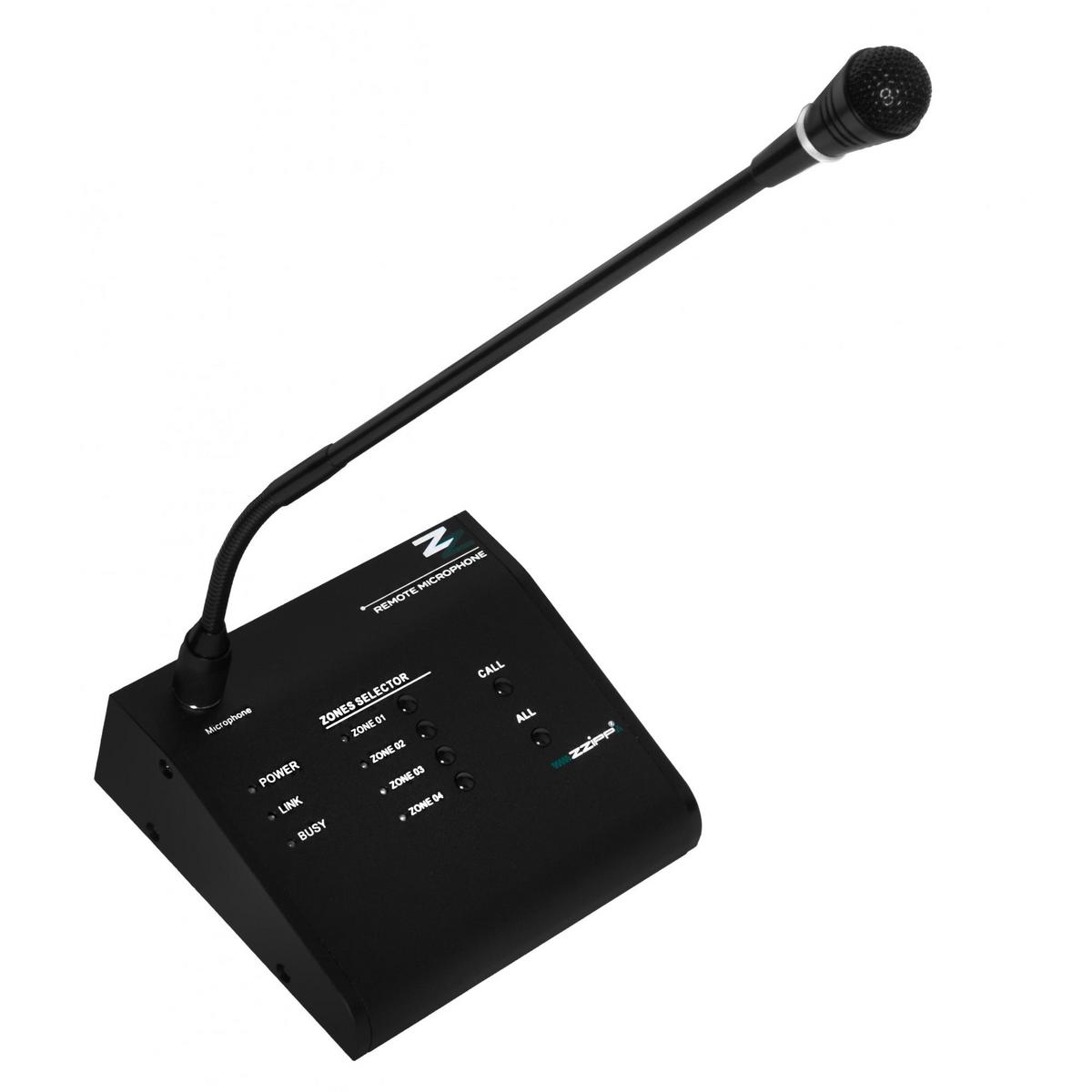

The ZZONE4000MC is a professional 4-zone paging microphone designed for seamless integration with ZZONE4xxPA series amplifiers. Ideal for environments such as commercial establishments, educational institutions, and large venues, it facilitates clear and effective audio announcements across multiple zones.

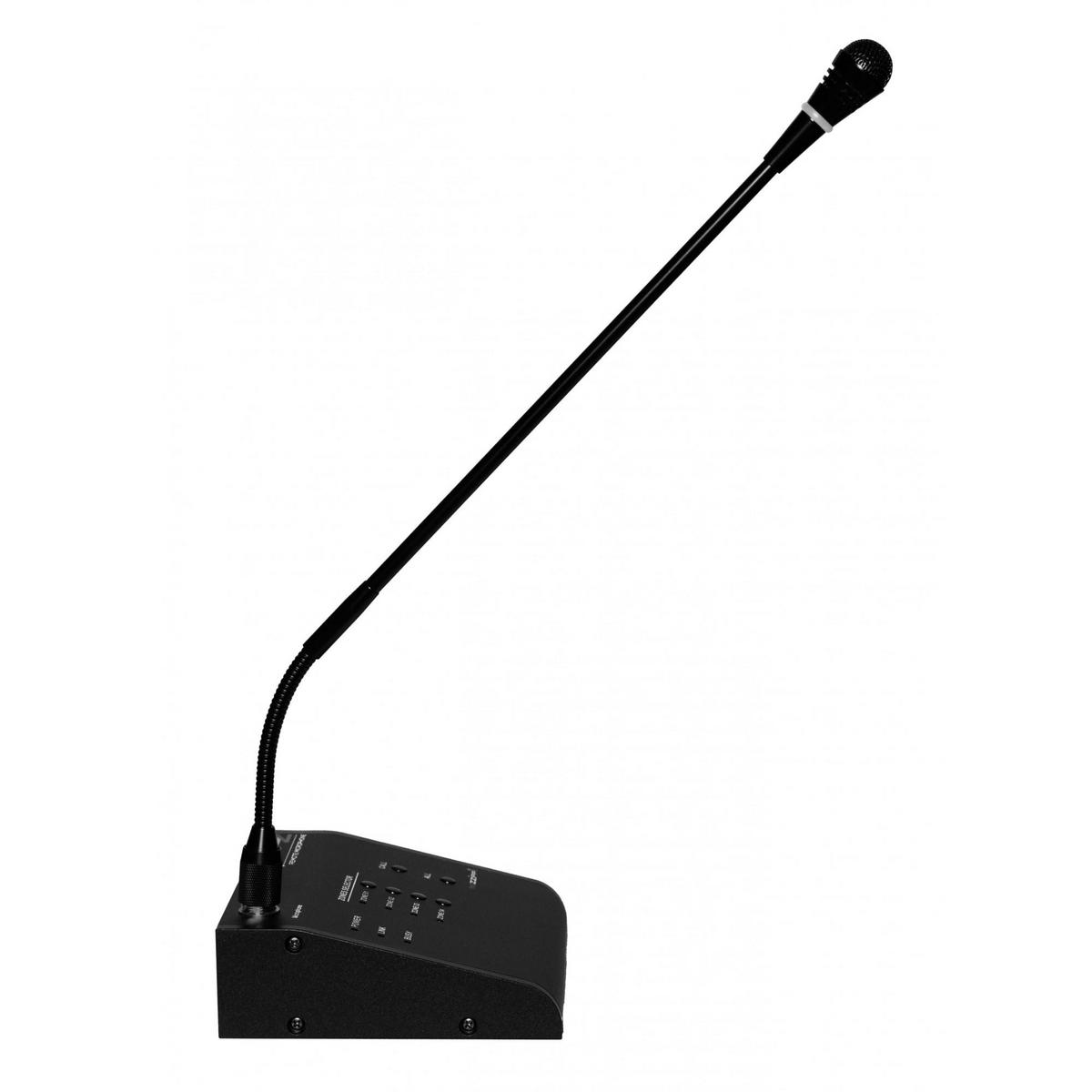

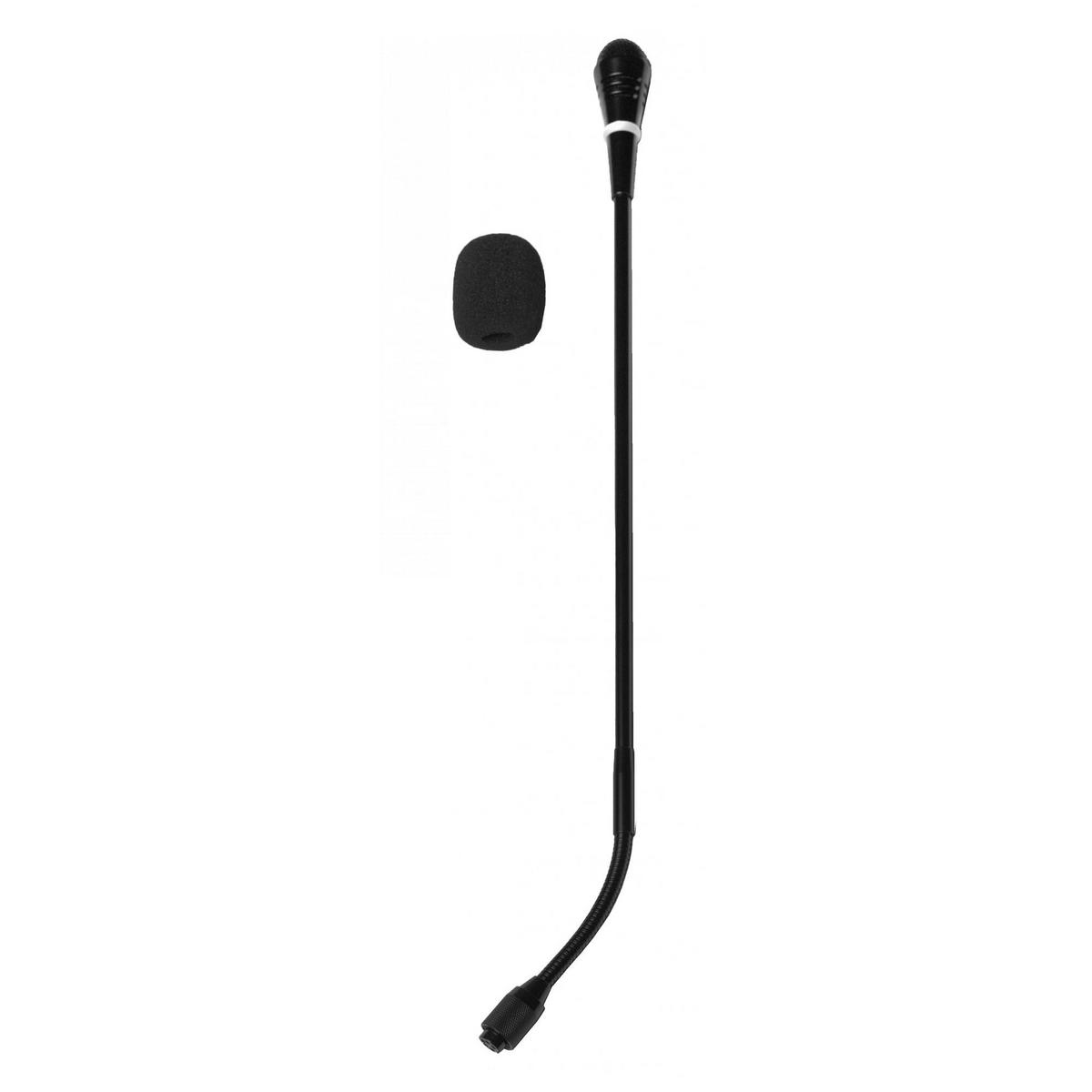

Featuring a robust construction, the ZZONE4000MC is built to withstand daily use in demanding settings. The 47.5 cm microphone boom ensures comfortable positioning, while the included windscreen minimises unwanted noise, ensuring clear communication. Its compact dimensions (17.2 x 5.4 x 15 cm) and lightweight design (0.8 kg) make it both portable and unobtrusive.
| Specification | Details |
|---|---|
| Connections | CAT6 Cable, max length 300 m |
| Power Supply | Direct power supply from amplifier |
| Microphone Boom Length | 47.5 cm |
| Inputs | Aux LINE |
| Windscreen | Included |
| Dimensions (W x H x D) | 17.2 x 5.4 x 15 cm |
| Weight | 0.8 kg |

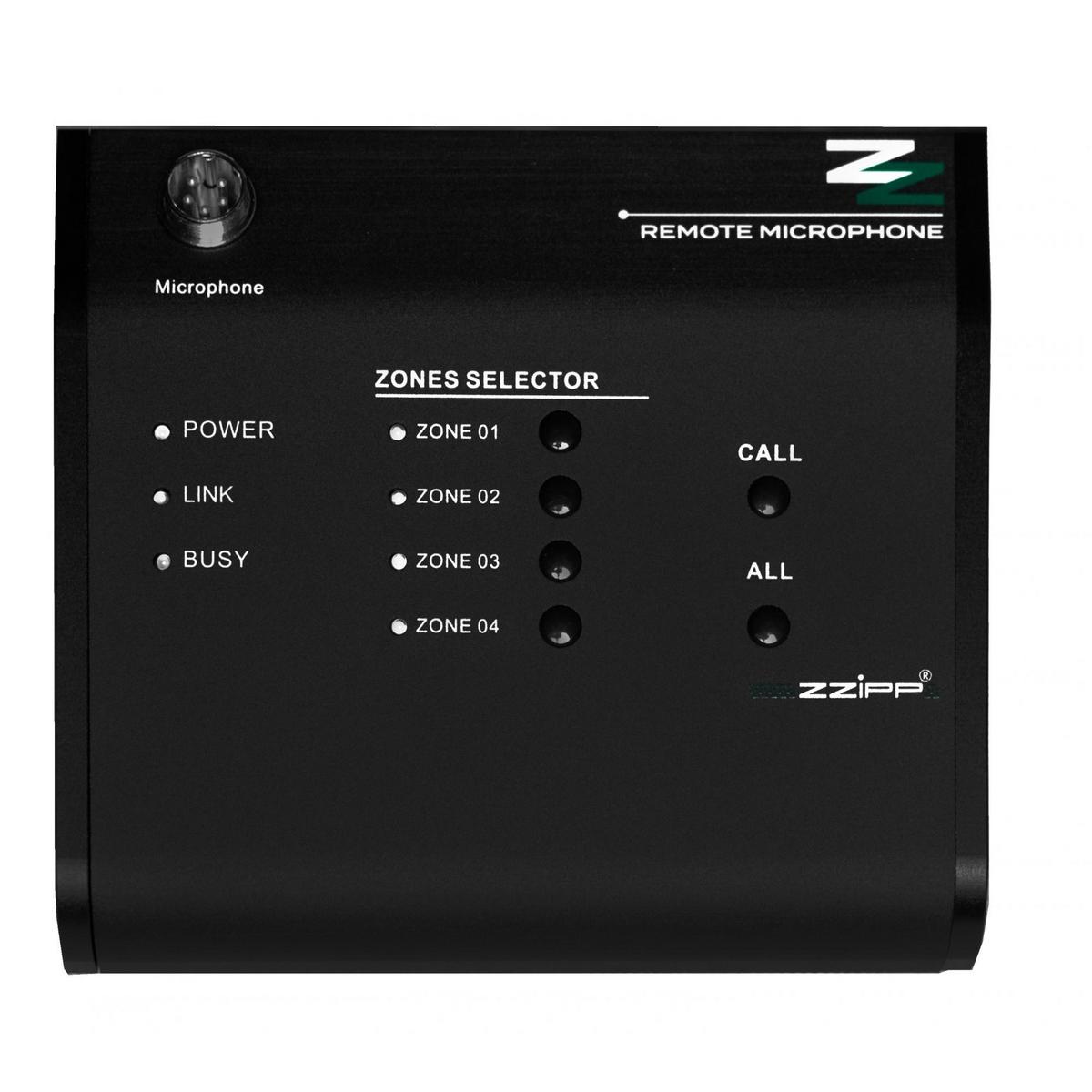

The ZZONE4000MC delivers clear and reliable audio transmission, making it suitable for both small- and large-scale paging applications. Its user-friendly controls make operation simple, while the durable build ensures longevity even in high-traffic environments. Connecting up to four remote microphone units to a single amplifier enhances scalability for growing audio requirements.
Q: How does the ZZONE4000MC connect to the amplifier?

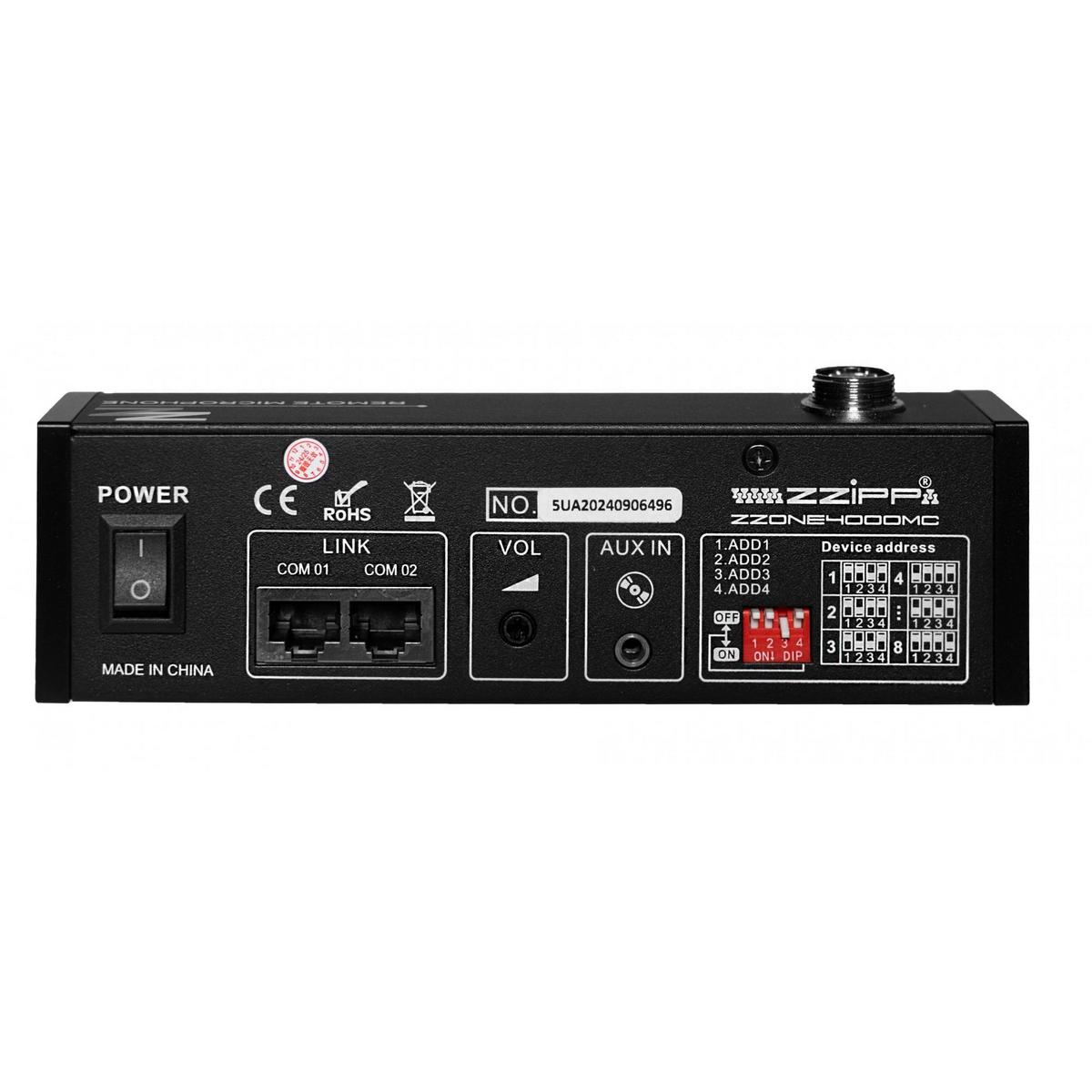

A: The microphone connects to the amplifier using a standard CAT6 cable, supporting lengths up to 300 metres.
Q: Does the ZZONE4000MC require an external power source?
A: No, it receives power directly from the amplifier, eliminating the need for additional power supplies.
Q: Can multiple ZZONE4000MC microphones be used simultaneously?
A: Yes, each amplifier can support up to four ZZONE4000MC units, allowing for multiple paging stations.
Q: Is there a chime function before making announcements?
A: Yes, the microphone includes an integrated chime sound that plays before announcements to alert listeners.
Q: What type of external audio sources can be connected to the ZZONE4000MC?
A: The microphone features an Aux LINE input for connecting various external audio sources, such as media players.
