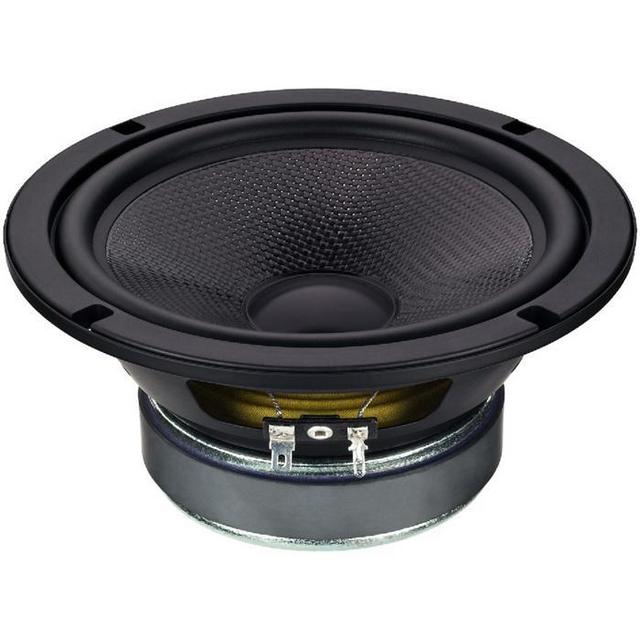

SP-6/108PRO PA Woofer 6.5" 100W 8 Ohm

Professional bass-midrange speaker for PA and HiFi. Carbon fibre cone to deliver high quality sound.

Features:

• 16.5 cm (6.5") professional bass-midrange speaker for PA and hi-fi
• High-quality carbon fibre cone
• Excellent sound and dynamic characteristics
• Heat-resistant voice coil wound on the inside and outside
• Low frequency response and low distortion, but nevertheless of a high efficiency
• Very well-suited for combination with the dome DT-300 and the waveguide WG-300
• Ideally suited for small PA systems and PA applications in adjoining areas
• Proven to be very reliable in hi-fi, PA and monitor applications

Specification:

• Impedance (Z) - 8 Ω
• Resonant frequency (fs) - 44 Hz
• Max. frequency range - f3-4,500 Hz
• Music power - 150 WMAX
• Power rating (P) - 100 WRMS
• SPL (1 W/m) - 92 dB
• Suspension compl. (Cms) - 0.97 mm/N
• Moving mass (Mms) - 13.14 g
• Mech. Q factor (Qms) - 4.28
• Electr. Q factor (Qes) - 0.35
• Total Q factor (Qts) - 0.32
• Equivalent volume (Vas) - 25.5 l
• DC resistance (Re) - 5.74 Ω
• Force factor (BxL) - 7.46 Tm
• Voice coil induct. (Le) - 0.43 mH
• Voice coil diameter - 30 mm
• Voice coil former - Kapton
• Linear excursion (XMAX) - ± 3 mm
• Eff. cone area (Sd) - 137 cm2
• Magnet weight - 570 g
• Weight - 1.4 kg
