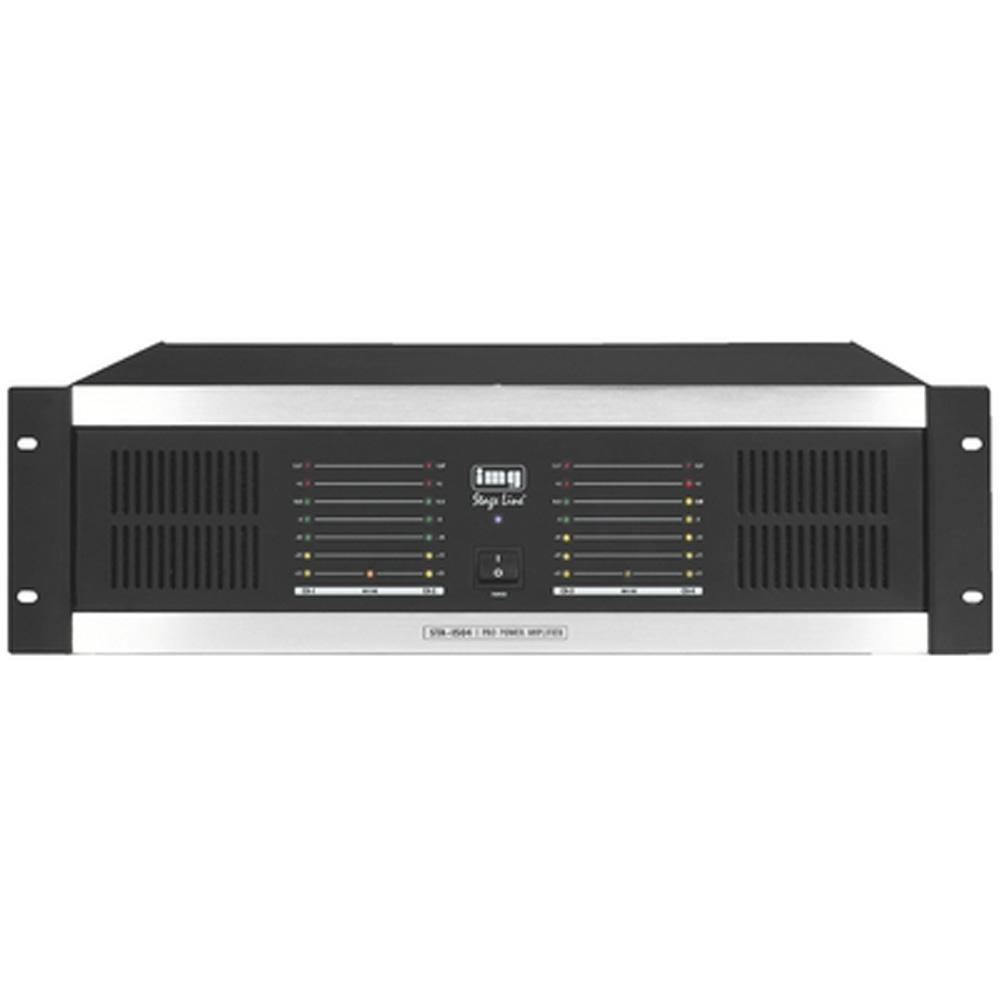

STA-1504 4-Channel PA Amplifier with Integrated Limiter


£349.00 inc vat
£290.83 ex vat
delivery time Want it Saturday, 28th May?
Order within -:- and choose Saturday delivery


  • Balanced inputs
  • High-pass filter, low-pass filter can be switched on additionally for each channel
  • Tamper-resistant level adjustment on the rear side
  • 8Ω bridge operation possible
  • LED VU meter and LED indication for overload (clip) for each channel
  • Soft start
  • Ground lift switch
  • Speaker switch-on delay
  • Fan-cooling
  • Protected against short circuit, overheating and DC voltage overlay at the outputs

Technical Data:

  • Output Power(RMS Power):
    • Stereo 4Ω: 4 x 160WRMS
    • Stereo 8Ω: 4 x 100WRMS
    • 8Ω bridge operation: 2 x 320WRMS
    • Max. power: 900WMAX

  • General Information:
    • Inputs: 0.7V/20kΩ
    • Frequency range: 12-60,000Hz/-1.5dB
    • S/N ratio: > 80dB
    • Crosstalk attenuation: > 60dB
    • THD: < 0.1%
    • Power supply: 230V~/50Hz/1,200VA
    • Admiss. ambient temp.: 0-40 °C
    • Dimensions: 482x132x310mm, 3RS
    • Weight: 16kg

  • Connections:
    • 4 x XLR, bal.
    • 4 x screw terminal
  • In stock In stock For fast dispatch
    3 year(s) warranty 3 Year Warranty On this product
