Monacor PA-40120 4-Zone PA Amplifier 4 x 120W
#17.3220
This item is available. Please contact us for pricing and ordering. 01371 879 000 or [email protected]

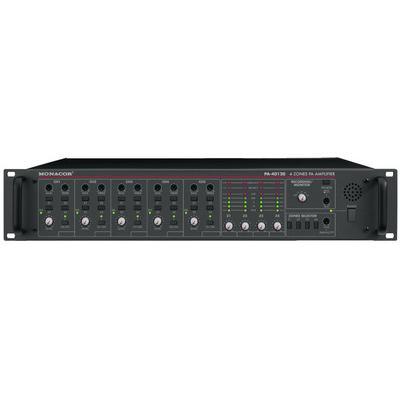

Monacor PA-40120 4-Zone PA Amplifier 4 x 120W
The Monacor PA-40120 4-Zone PA Amplifier comes with 4 active 120W ouputs and is designed for setting up a multi-zone PA system. A switch allows each of the 5 inputs to be assigned to one of the 4 outputs. Thus, it is possible to reproduce varying programmes in different areas. Another advantage is that an announcement in one area will not interrupt the programme in another area. With the optional zone-paging microphone PA-4000RC, the amplifier can be extended to a 4-channel PA system. In combination with the fireman's microphone PA-4000FMP with integrated voice memory, e.g. an acoustic alarm system can be set up in schools.
Features:
- 4 x 120WRMS
- 4 zones, can be controlled individually
- 3 mic/line inputs and 2 line inputs
- Built-in adjustable monitor speaker
- Chime and siren can also be activated via external momentary push-button
- Bass, treble and master controls, level display via LEDs, controlled fan
- Phantom power for electret microphones
- Connection for microphone PA-4000PTT
- Connections for 4 PA fireman's microphones PA-4000FMP
- Mains operation and 24V emergency power operation
Technical specifications:
- Output power 4 x 120WRMS 4 x 170WMAX
- Mic/line 1-3 2.5mV/5kΩ, 0.3V/15kΩ 0.3V/15kΩ
- Speakers 4 x 4Ω, 4 x 70V/100V
- Preamplifier 0.775V/200Ω
- Record 0.775V/3kΩ
- Frequency range 45-20,000Hz
- Bass ±10dB/100Hz
- Treble ±10dB/10kHz
- Mic > 70dB, A-weighted
- Line > 90dB, A-weighted
- THD < 1%
- Admiss. ambient temp. 0-40 °C
- Power supply 230V˜/50Hz/1,500VA,
- 24V DC current /40A
- Dimensions 482x90x377mm, 2RS
- Weight 22.1kg
- Mic/line 3 x 6.3mm/XLR (combo)
- Line 2 x RCA L/R
- Push-to-talk microphone 1 x RJ-45
- Emergency 4 x RJ-45
- Chime mom. push-button screw terminals
- Preamplifier 4 x screw terminal
- Speakers 4 x screw terminal
- Monitor 1 x 6.3mm jack
- Record 1 x RCA L/R
- 230V˜ mains cable
- 24V DC current screw terminals
