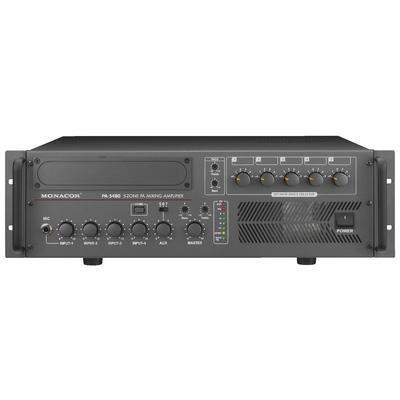

PA-5480 5-Zone Mono Mixing Power Amplifier 480WRMS

The PA-5480 5-Zone Mono Mixing PA Power Amplifier 1 Channel features a controlled fan, bass, treble and master controls and a level display via LEDs. The amplifier has phantom power for electret microphones and features insertions for various functions that are available at option.

Features:

• 1 x 480WRMS
• 5 zones, can be controlled individually
• Chime, howling sound, automatic mute; chime and siren can also be activated via external momentary push-button
• Bass, treble, and master controls, level display via LEDs, controlled fan
• Insertions for various functions are available at option
• Phantom power for electret microphones
• Connection for microphone PA-5000PTT PA Desk Microphone (Push-To-Talk)
• Automatic alarm announcement with insertion Timer Module (available at option)
• Mains operation or 24V emergency power operation

Technical specification:

• Output power - 480WRMS, 680WMAX
• Mic 1 - 2.5mV/2kohms
• Mic/line 2-4 - 2.5mV/2kohms, 0.3V/200kohms
• Line 5-7 - 0.3V/5kohms
• Preamplifier - 0.775V/10kohms
• Speakers - 100V/70V Line
• Preamplifier - 0.775V/100ohms
• Frequency range - 55-16,000Hz
• Tone control
• Bass - ±10dB/100Hz
• Treble - ±10dB/10kHz
• S/N ratio
• Mic - > 70dB
• Line - > 80dB
• THD - < 1%
• Admiss. ambient temp. - 0-40 °C
• Power supply - 230V~/50Hz/1,500VA, 24V DC current /40A
• Dimensions - 482x133x352mm, 3RS
• Weight - 20kg
• Mic/line - 2 x 6.3mm/XLR (Combo), 1 x 6.3mm jack
• Line - Screw terminals, 3 x RCA L/R
• Zone paging microphone - Screw terminal
• Push-to-talk microphone - Screw terminal
• Preamplifier - 1 x 6.3mm jack
• Chime mom. pushbutton - Screw terminals
• Preamplifier - 1 x 6.3mm jack
• Speakers - Screw terminals
• Power supply - 230V~ 3-pin AC jack
• 24V DC current - Screw terminals
