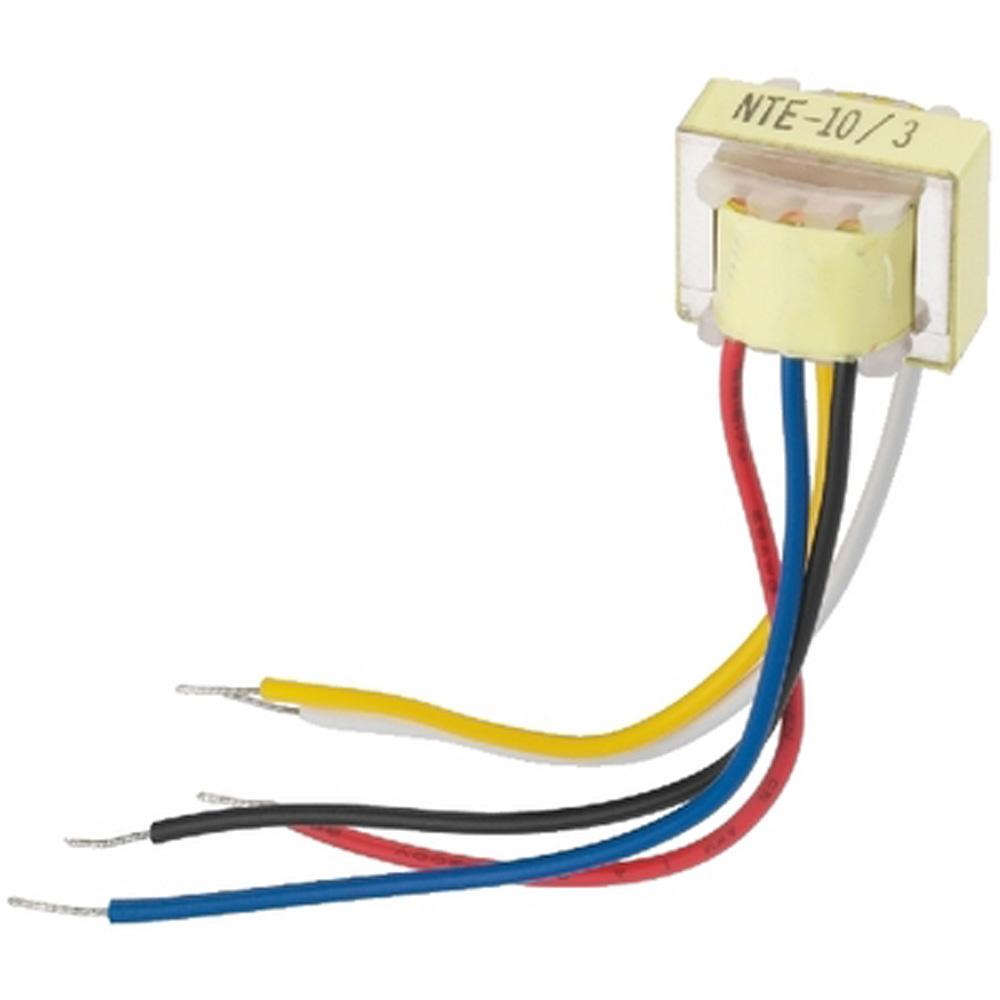

NTE-10/3 Audio Transformer 1:3/1:10 For Microphone Signals

The NTE-10/3 Audio Transformer 1:3/1:10 For Microphone Signals, from NEAUTRIK, features galvanic isolation to avoid and eliminate hum loops. The transformer is very compact and unshielded so respective shielding measures are required when installing unshielded transformers.

Features:

• Very compact design, e.g. also suitable for the installation into connector housings
• Unshielded version with bare wire connections (70mm)
• Wideband version
• Balance adjustment
• Galvanic isolation to avoid/eliminate hum loops
• Suitable e.g. for level matching, can be used for the connection of wireless microphone receivers to line inputs
• Max. input voltage: 350mV/380mV (1% THD/50Hz)

Technical specification:

• Frequency range: 20-20,000Hz

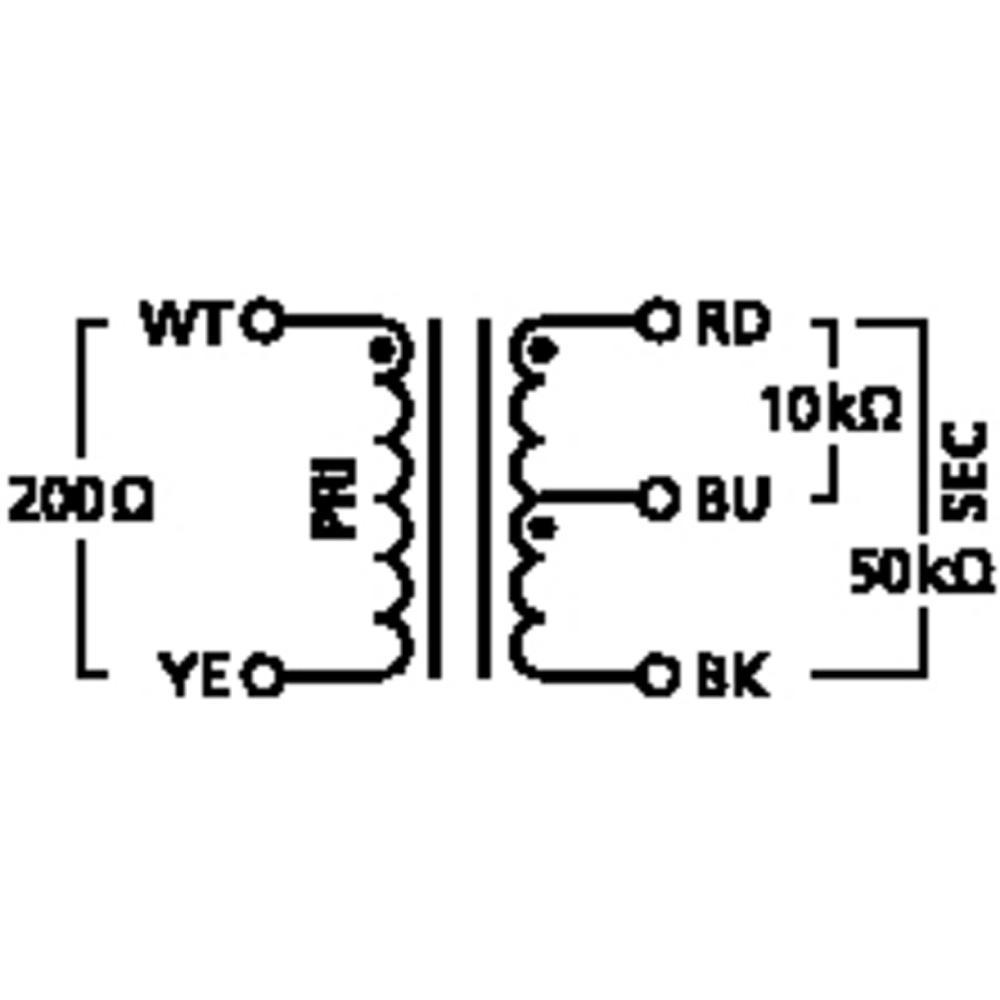

• Inputs: 200Ω
• Outputs: 10kΩ/50kΩ
• Transmission ratio: 1:3/1:10
• Admiss. ambient temp.: -
• Dimensions: 14x11x12mm, (w/o cable)
• Weight: 4g
