IMG Stageline C-RAY/8 Column PA System 800W with Extension and Bag

#25.5630

IMG Stageline C-RAY/8 Column PA System 800W

The C-Ray/8 from IMG Stageline is a Compact, Powerful, Portable Column PA System which represents excellent value for money.

Great for Solo Entertainers, Parties, Mobile DJ's and if you manage a venue, the C-Ray/8 can be used as a portable system or form part of a compact fixed installation.

The C-Ray/8 has a built in 4-Channel Mixer with DSP function which continuously checks the output and adjusts compression and equalisation accordingly.

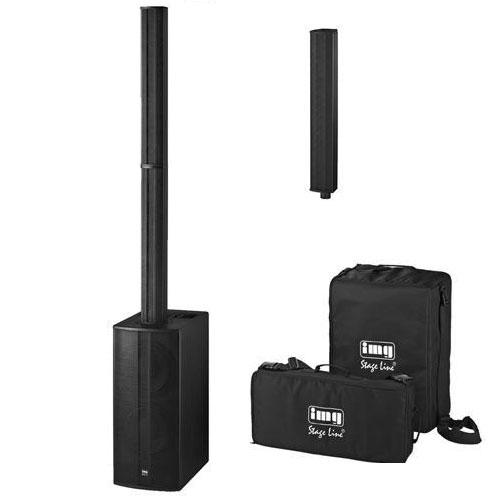

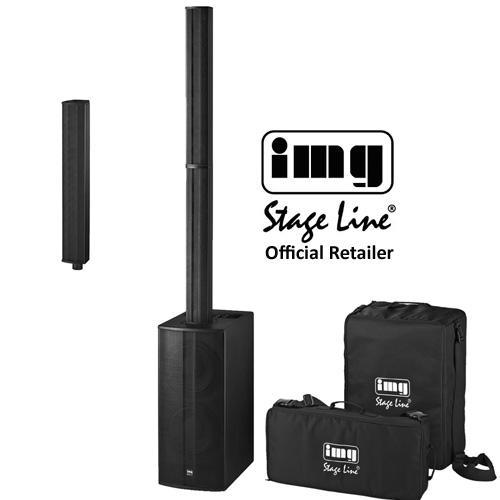

The C-Ray/8 comes in 3 Parts. The Subwoofer Section houses the guts of the system and contains 2 x 8" Bass Drivers, Mixer section plus the D-Class Power Amplifier Module. The Other 2 Sections are the Column Arrays which twist and click neatly into place on top of the Subwoofer. They collectively contain 12 x 3"Drivers and 2 x 1" Tweeters. There is also a extension available at an option to raise the Primary Column Sections Higher. (C-Ray/8EXT - Included) Transportation bag also included.

Features:

  • Compact full range system with bass-reflex subwoofer and two column modules
  • 2 x 20 cm (8") bass speaker, 12 x 7.6 cm (3") full range speaker + 2 x 2.5 cm (1") tweeter in a closed cabinet
  • 2-channel class D amplifier system with 2 x 200 WRMS
  • DSP-controlled functions for crossover network, equalizer and limiter
  • Sound pressure at nominal power: 115 dB, music: 118 dB, peak: 122 dB
  • 4-channel mixer
  • Continuously adjustable sound characteristics
  • Mono selector switch
  • Indication of signal, limiter and clip
  • Feed-through outputs, rec out and mix output
  • High-quality wooden cabinet with protective metal grille
  • No cables, components attached via twist-and-lock mechanism

Technical Specification:

  • Frequency range 50-20,000 Hz
  • Amplifier power DSP-controlled 400 WRMS (200+200) bass: 200 W
  • mid-high range: 200 W
  • Inputs 1 x line in L/R, bal. 1 x mic, bal. 1 x comb. 1 x aux
  • SPL (1 W/1 m) 95 dB
  • Max. rated SPL 115 dB at nominal power RMS
  • Admiss. ambient temp. 0-40 °C
  • Power supply 230 V˜/50 Hz/510 VA
  • Dimensions (WxHxD) 250x1,730x400 mm
  • Weight 23 kg
  • Connections 2 x XLR/6.3 mm comb. (line L/R) 1 x XLR/6.3 mm comb. (mic) 1 x XLR/6.3 mm comb. (comb.) 1 x RCA (aux L/R) 1 x RCA (rec out L/R) 1 x 3.5 mm jack (aux L/R) 1 x XLR, par. out, 1 x XLR, MIX out
  • Other features DSP-controlled limiter
