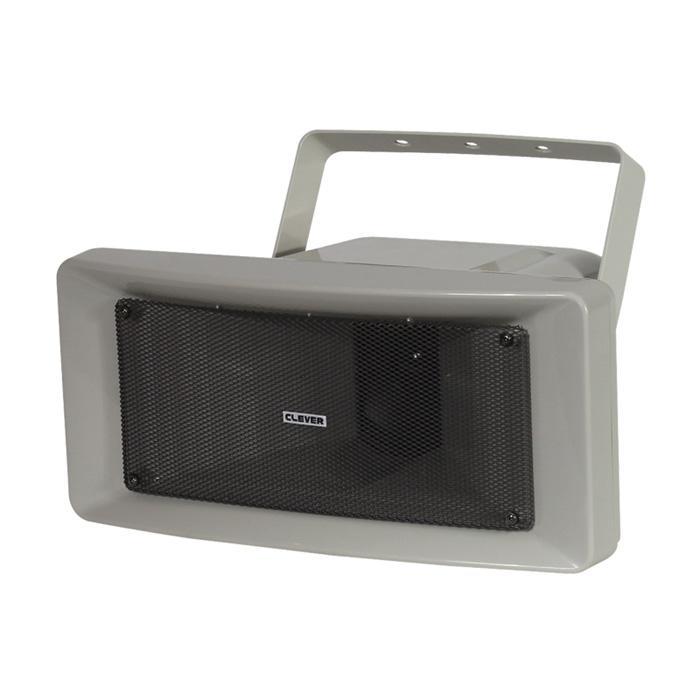

The Clever Acoustics SP 30 is a robust 100V line music horn speaker, engineered for clear voice announcements and background music in expansive outdoor environments. Its wide frequency response and high sound pressure level (SPL) make it ideal for installations in sports grounds, industrial sites, transport hubs, and public areas requiring dependable, weather-resistant sound reinforcement.
Constructed from durable ABS plastic, the SP 30 is designed to withstand harsh outdoor conditions. Its IP66 rating ensures protection against dust and powerful water jets, making it suitable for year-round outdoor use. The speaker includes an adjustable mounting bracket, allowing for flexible installation and optimal sound coverage.
| Specification | Details |
|---|---|
| Power Source | 100 V / 70 V line |
| Power Taps @ 100V | 15 W, 30 W |
| Power Taps @ 70V | 7.5 W, 15 W |
| Impedance | 330 Ω (30 W), 670 Ω (15 W) |
| Frequency Response | 300 Hz - 18 kHz |
| Sensitivity (1 W/1 m) | 113 dB (±3 dB) |
| Maximum SPL | 128 dB |
| Driver | 5" full-range |
| Dispersion Angle | 110 degrees x 90 degrees |
| Enclosure Material | ABS plastic |
| IP Rating | IP66 |
| Dimensions (W x H x D) | 370 x 175 x 275 mm |
| Weight | 3.1 kg |
| Mounting | Adjustable bracket included |
| Connections | Flying leads (Black: COM, Green: 15 W @ 100 V, White: 30 W @ 100 V) |
The SP 30 delivers clear and intelligible audio, making it suitable for both speech and background music applications. Its high sensitivity ensures effective sound projection over large areas, while the wide dispersion angle provides uniform coverage.
Q: Is the SP 30 suitable for indoor use?
A: While designed for outdoor environments, the SP 30 can also be used indoors, particularly in large, open spaces requiring wide sound dispersion.
Q: Can the SP 30 be used with a 70V line system?
A: Yes, the SP 30 includes a built-in transformer with taps for both 100 V and 70 V line systems.
Q: What type of amplifier is required for the SP 30?
A: A 100 V or 70 V line amplifier matching the desired power tap (15 W or 30 W) is recommended for optimal performance.
Q: How is the SP 30 mounted?
A: The speaker comes with an adjustable mounting bracket, allowing for secure installation on walls or poles.
Q: Is the SP 30 compliant with safety standards?
A: Yes, the SP 30 is RoHS compliant and designed to meet relevant safety and performance standards for commercial audio equipment.
