The Audac XMP44 is a highly adaptable modular audio source designed for professional AV installations in corporate offices, educational institutions, retail spaces, hospitality venues, and houses of worship. It offers exceptional flexibility by supporting up to four simultaneous audio sources through its SourceCon? interface card slots, ensuring crystal-clear audio reproduction and seamless integration into multi-zone setups.

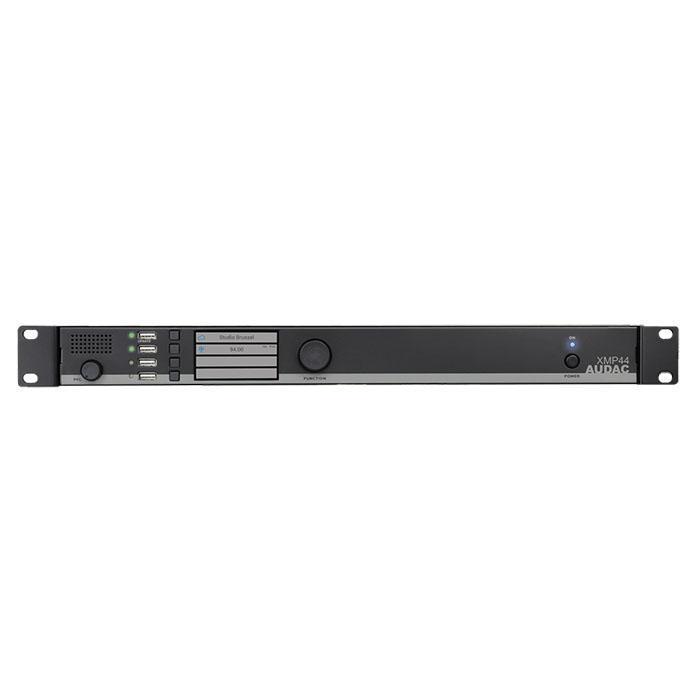

Housed in a robust 19-inch, 1U steel chassis, the XMP44 is built for durability and efficient rack integration. Its front panel features a 2.8" TFT graphical display, complemented by a Scroll-Push? rotary dial and four tactile pushbuttons, facilitating intuitive navigation and control. The inclusion of an integrated PFL (Pre-Fade Listen) speaker with dedicated volume control allows for on-the-fly audio monitoring without additional equipment.
| Specification | Details |
|---|---|
| Power Source | 110 ~ 240 V AC / 50 ~ 60 Hz |
| Power Consumption | 2 W (without modules installed) |
| Module Slots | 4 x SourceCon? interface card slots |
| USB Interfaces | 4 x Front-panel USB ports (one per module) |
| Control Interfaces | Front panel, RS-232, TCP/IP, Web (HTML5), AUDAC Touch? app |
| Display | 2.8" TFT graphical LCD |
| Monitoring | Integrated PFL speaker with dedicated volume control |
| Frequency Response | 20 Hz - 20 kHz (±3 dB) |
| Operating Temperature | 0 degrees-40 degreesC at 95% humidity |
| Dimensions (W x H x D) | 482 x 44 x 330 mm |
| Weight | 3.4 kg |
| Construction | Steel chassis |
| Colour | Black |
The XMP44 delivers high-fidelity audio across multiple zones, ensuring consistent performance in diverse applications. Its modular design allows for easy customisation and scalability, adapting to evolving audio requirements. The user-friendly interface, combined with remote control capabilities via the AUDAC Touch? app and web interface, offers seamless operation for both technical staff and end-users.
Q: What types of modules are compatible with the XMP44?
A: The XMP44 supports various SourceCon? modules, including FM tuners, DAB/DAB+ tuners, internet radio tuners, voice file interfaces, and more.
Q: Can I control the XMP44 remotely?
A: Yes, the system can be managed remotely via the AUDAC Touch? app, RS-232, TCP/IP, or the integrated HTML5 web interface.
Q: Is the XMP44 compatible with Dante? networks?
A: Yes, with the optional ANX44X module, the XMP44 can integrate into Dante?/AES67-enabled networks for high-quality audio transmission over Ethernet.
Q: Does the XMP44 support simultaneous operation of all modules?
A: Absolutely, all four modules can operate concurrently, providing a compact multi-source solution.
Q: Is there a built-in monitoring feature?
A: Yes, the XMP44 includes an integrated PFL speaker with dedicated volume control for pre-listening to each output.
