Overview

The Cloud DCM-1 is a professional 8-zone audio mixer designed for flexible multi-zone sound installations. Combining analogue signal paths with digital control, it offers powerful routing capabilities without the need for a PC, making it ideal for contractors and installers.

With extensive input options, remote control capability and advanced paging features, the DCM-1 provides a highly adaptable solution for commercial and public address systems.

Multi-Zone Audio Control

The DCM-1 allows independent control and routing of audio across 8 zones, making it perfect for complex installations.

• 8 configurable audio zones
• Flexible signal routing per zone
• 4 definable zone group options

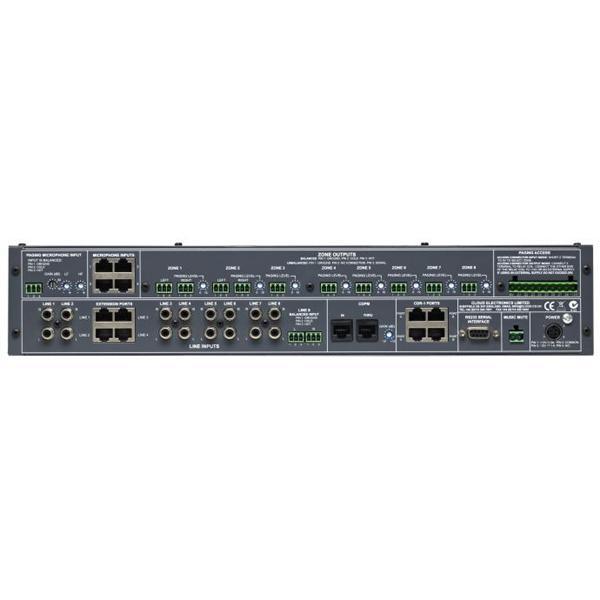

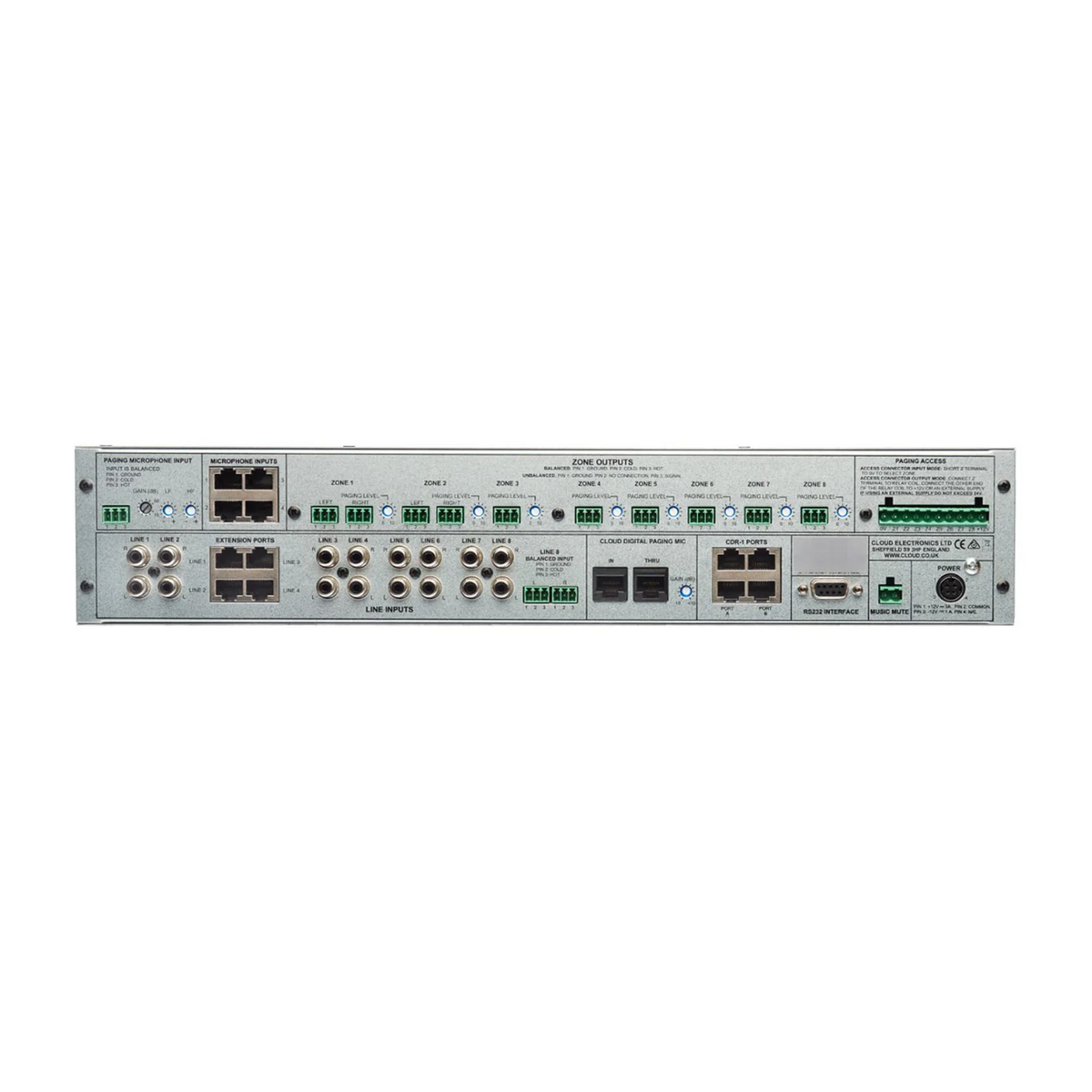

Extensive Input & Output Options

Designed for versatility, the DCM-1 supports multiple line and microphone inputs with balanced outputs for professional integration.

• 8 stereo line inputs (1 balanced)
• 8 balanced line outputs (2 stereo + 6 mono)
• 4 ports for optional line input modules (LE-1)
• 4 ports for optional mic input modules (ME-1)

Advanced Paging & Priority Control

The system includes comprehensive paging functionality with programmable priority and override logic.

• Paging microphone input for all zones
• Programmable priority override logic
• Contact closure zone selection
• Configurable line priority per zone

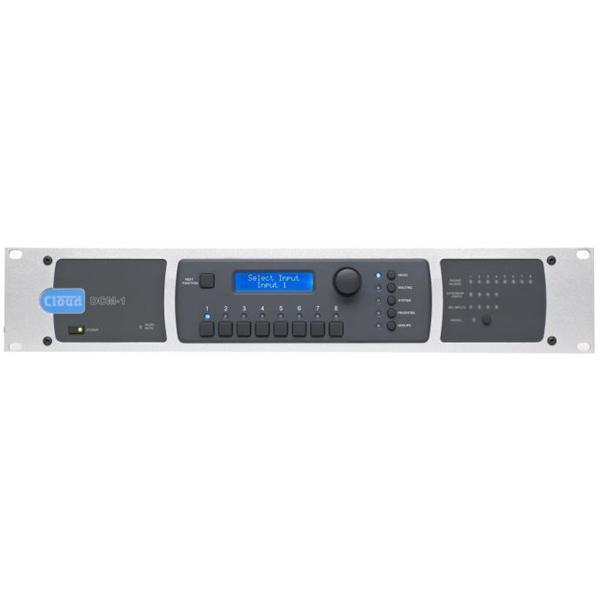

Remote Control & Integration

The DCM-1 supports multiple remote control options, allowing convenient system management from different locations.

• Compatible with LCD digital remote controllers
• Remote EQ adjustment
• RS232 interface for AMX / Crestron integration
• Optional GUI setup via PC (not required for operation)

High-Quality Audio Performance

Built with professional-grade components, the DCM-1 ensures clean, reliable audio performance across all zones.

• Frequency response: 20Hz - 20kHz (±1 dB)
• Low distortion: <0.05%
• High signal-to-noise ratio: -90 dB (line)
• 3-band EQ on line inputs

Expandable System Design

Optional input modules expand system capabilities, making the DCM-1 suitable for a wide range of installations.

• LE-1 line input modules
• ME-1 microphone input modules
• BE-1 Bluetooth input module support

Installer-Friendly Design

The DCM-1 is designed for easy installation and integration into professional rack systems.

• Standard 2U 19" rack mount format
• Analogue I/O for simple wiring
• No PC required for setup

Key Features

• 8-zone digitally controlled audio mixer
• 8 stereo line inputs and 8 balanced outputs
• Advanced paging with priority override
• Remote control compatibility
• RS232 integration for control systems
• Expandable with optional input modules
• High-quality audio performance
• Rack mountable (2U)

Specifications

Applications

The Cloud DCM-1 is ideal for hotels, offices, shopping centres, schools, leisure facilities and public buildings requiring flexible multi-zone audio distribution and paging control.

Q&A

Q: Does this require a PC to operate?
A: No, the DCM-1 can be fully operated without a PC, though optional software is available for setup.

Q: Can I control it remotely?
A: Yes, it supports multiple remote controllers and integration with control systems via RS232.

Q: Is it suitable for paging systems?
A: Yes, it includes advanced paging features with priority override and zone selection.
