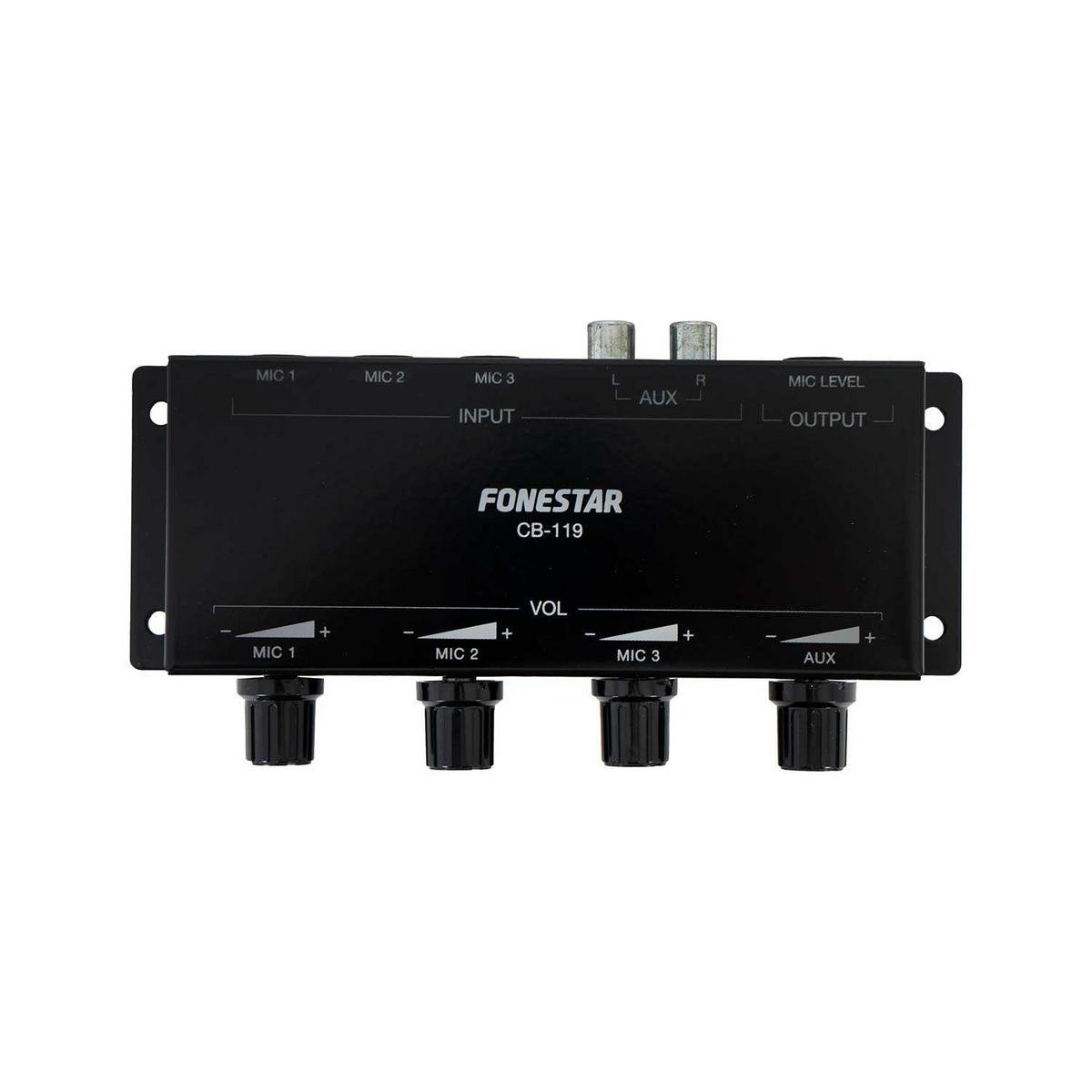

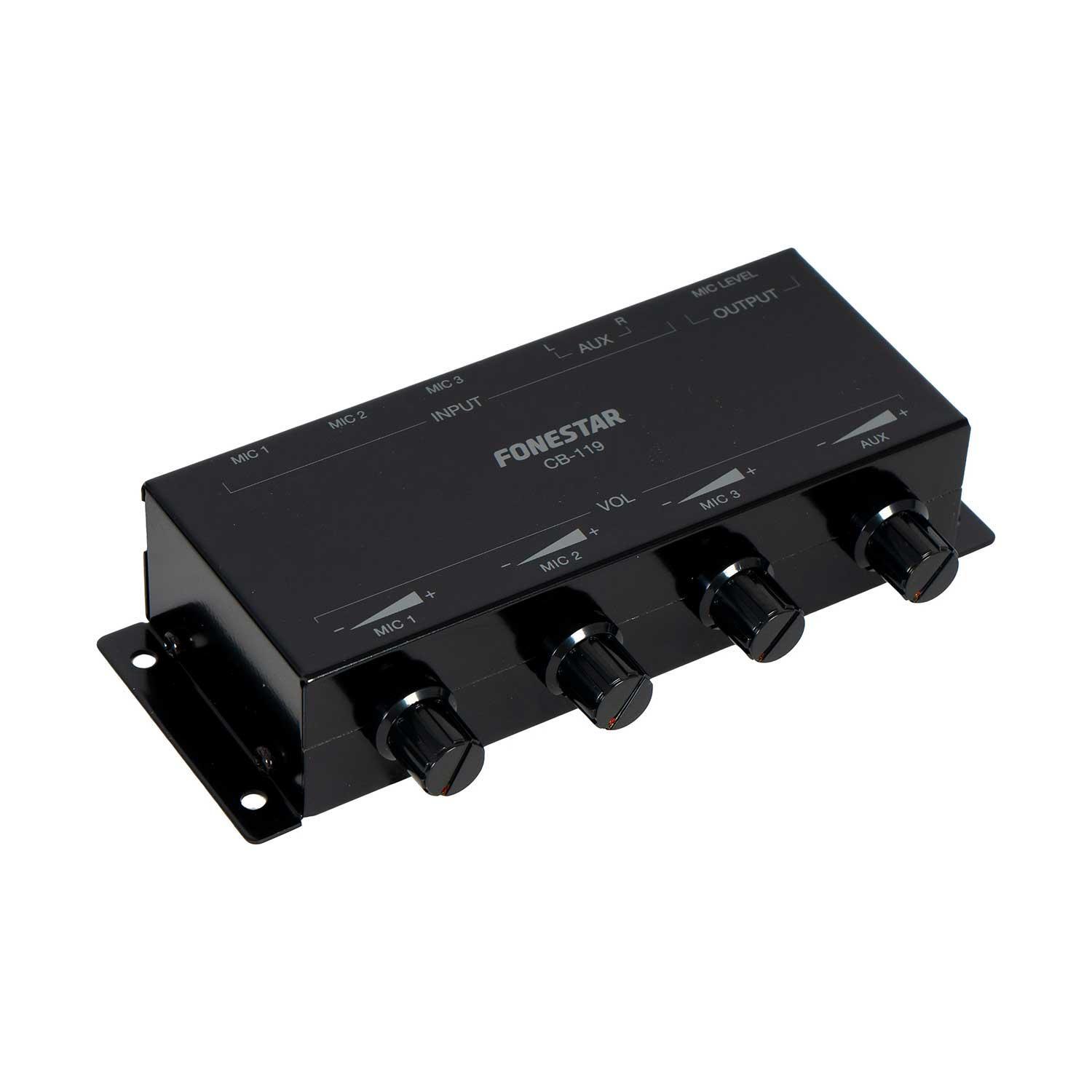

The Fonestar CB-119 is a compact, passive mono mixer designed for small-scale audio setups requiring multiple microphone inputs. It features three unbalanced microphone inputs and one auxiliary input, making it suitable for combining various sources into a single mic-level output. Whether used in conference rooms, educational settings, or simple live audio setups, the CB-119 offers clean routing without the need for external power.
Housed in a durable and lightweight enclosure, the CB-119 measures just 145 x 31 x 76 mm and weighs only 0.22 kg. Its simple, straightforward layout makes it easy to use, even for non-technical users. The included 6.3 mm mono audio cable provides immediate out-of-the-box connectivity to compatible systems.
Key Features:
Specifications:
| Specification | Details |
|---|---|
| Type | Passive Mono Microphone Mixer |

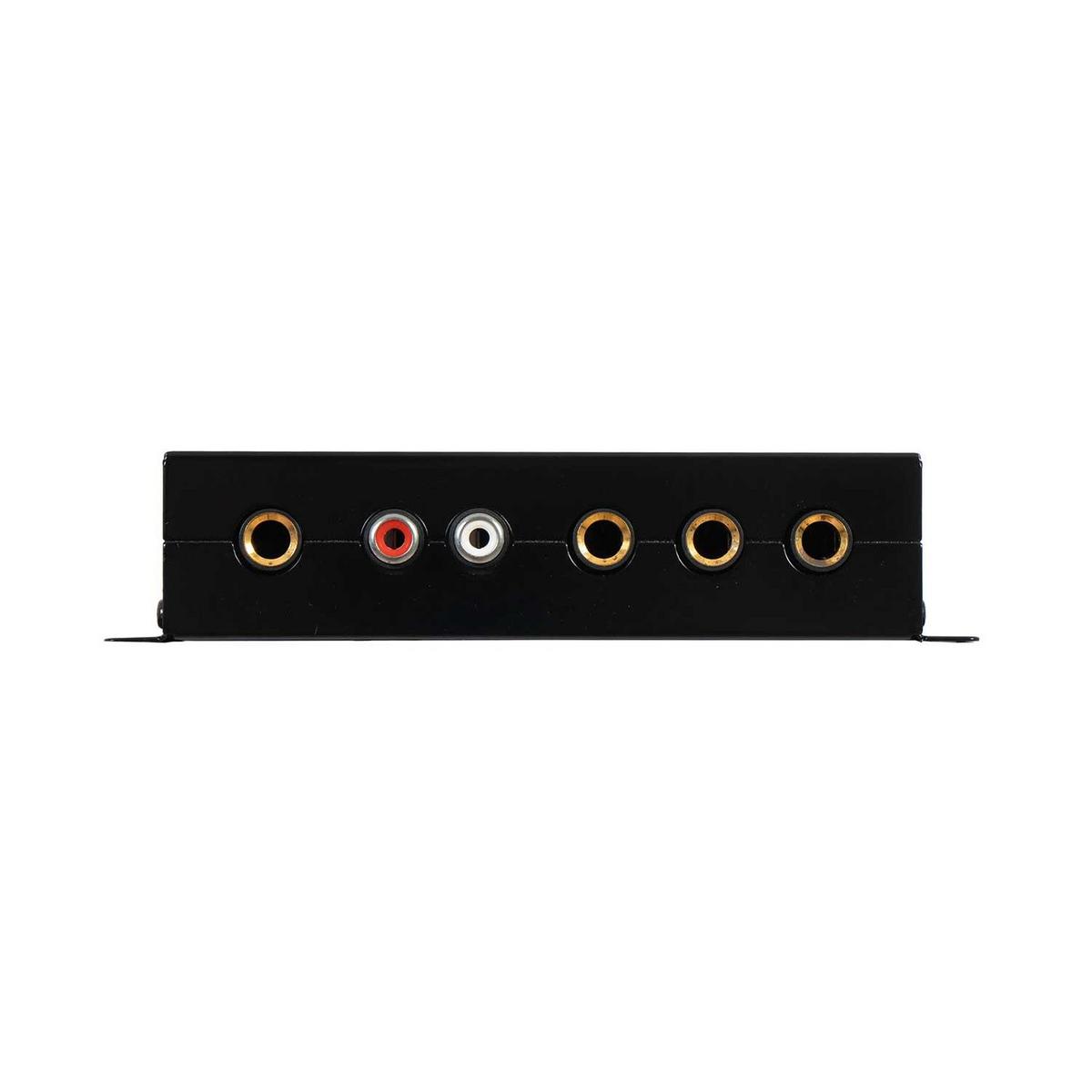

| Inputs | 3 x Unbalanced Mic (6.3 mm jack), 1 x Aux (2 x RCA) |
| Output | 1 x Unbalanced Mic Output (6.3 mm jack) |

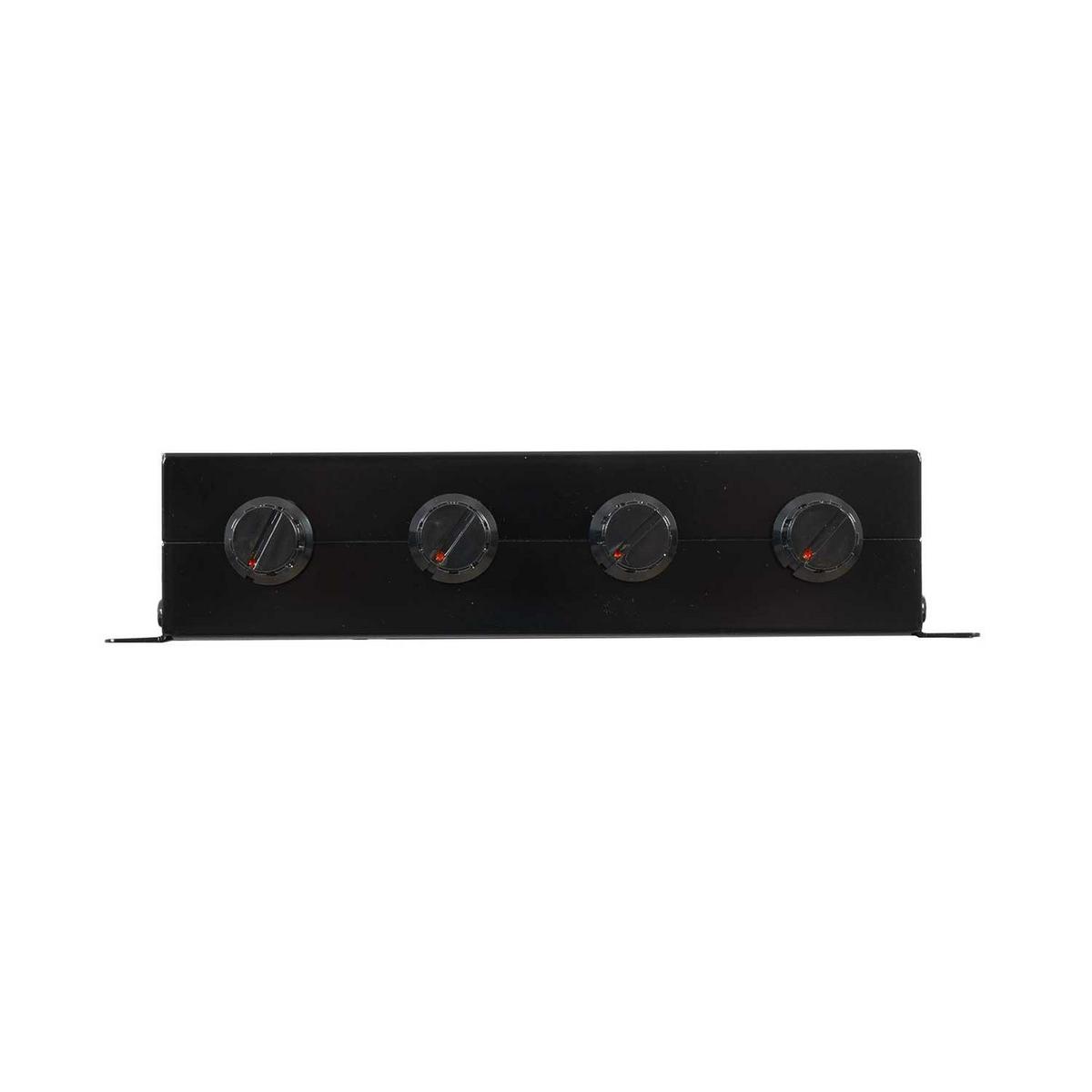

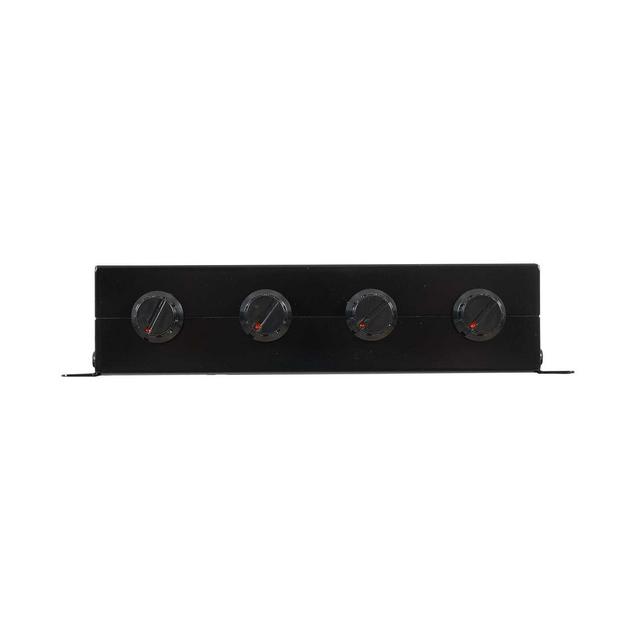

| Controls | Input volume control |
| Dimensions | 145 x 31 x 76 mm |
| Weight | 0.22 kg |
| Accessories Included | 1.8 m Audio Cable (6.3 mm mono plug to 6.3 mm mono plug) |
The Fonestar CB-119 provides uncomplicated audio routing. Ideal for users who require basic microphone mixing with minimal gear, its passive design ensures fewer failure points and no power requirements. The inclusion of an audio cable ensures immediate setup and usability across a variety of applications.
Q&A Section
Q: Does the CB-119 require power to operate?
A: No, it is a passive unit and does not require batteries or external power.
Q: What kind of audio inputs can I connect?
A: It accepts 3 unbalanced microphones (6.3 mm jack) and 1 auxiliary source via RCA.
Q: Can I connect this to a standard mixer or PA system?
A: Yes, the mic-level output (6.3 mm jack) can connect directly to compatible microphone inputs.
Q: What accessories are included?
A: A 1.8 m audio cable with 6.3 mm mono plugs is included in the box.
