The Audac MTX88 is a versatile 8-zone audio matrix system designed for professional audio installations in environments such as hotels, corporate spaces, educational facilities, and houses of worship. It offers seamless distribution of multiple audio sources to distinct zones, catering to both background music and public address requirements.

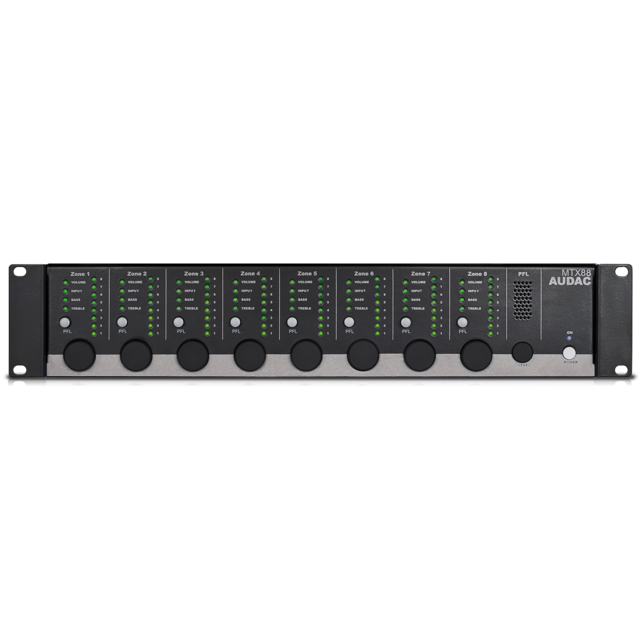

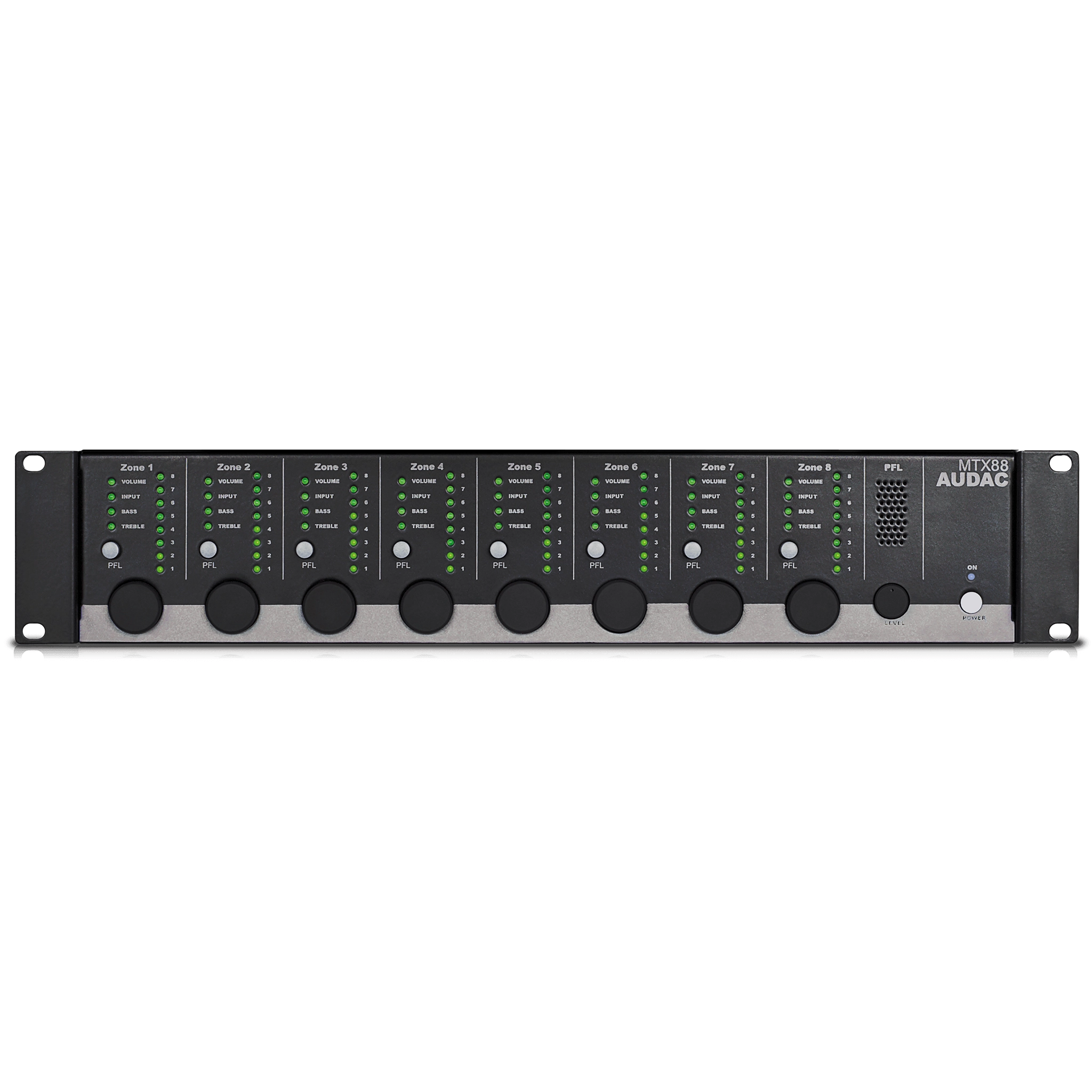

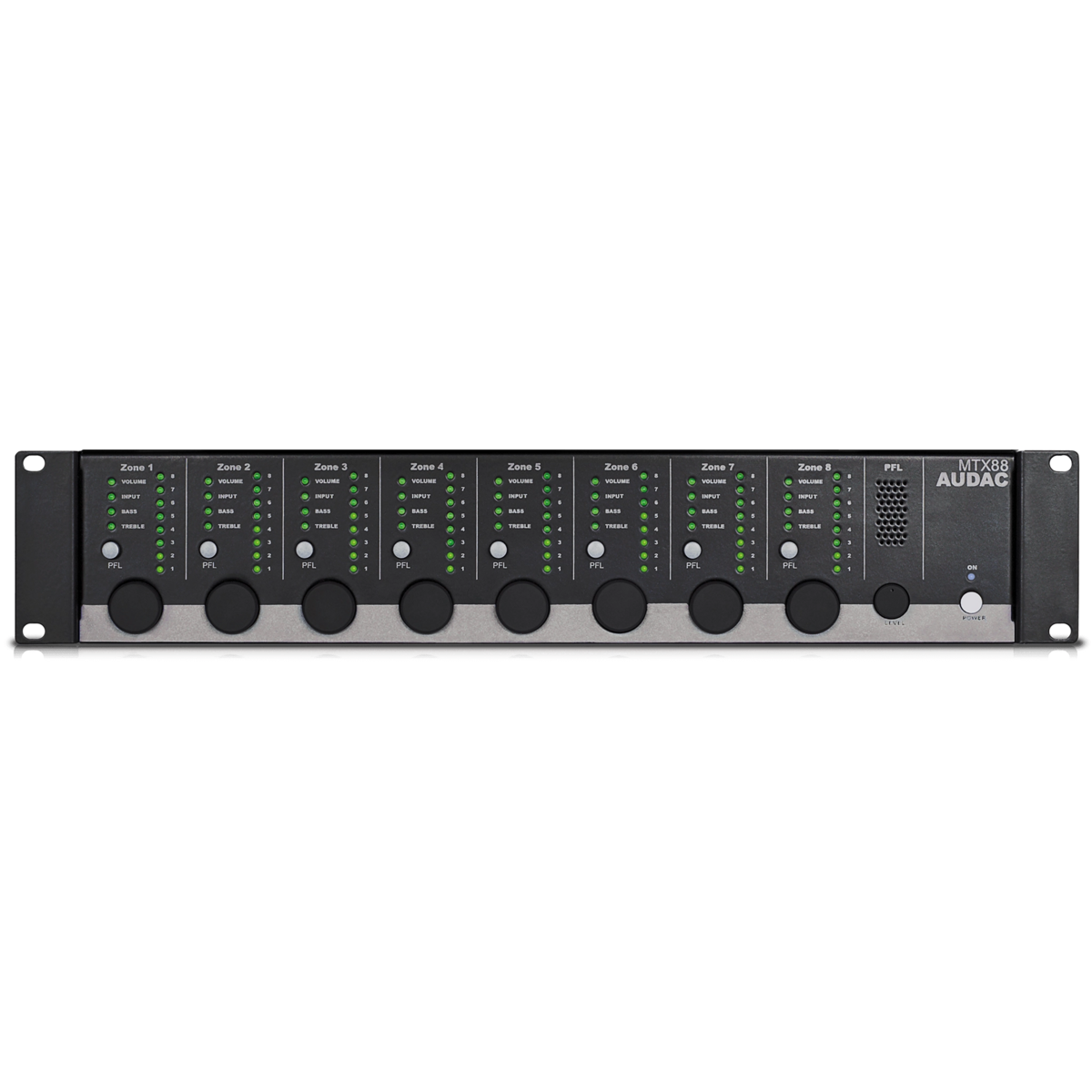

Constructed with a robust 19-inch, 2U steel chassis, the MTX88 ensures durability and reliability for rack-mounted setups. The front panel features intuitive rotary controls with LED indicators for each zone, facilitating straightforward configuration and monitoring. Additionally, a built-in PFL (Pre-Fade Listen) speaker allows users to preview audio channels directly from the unit without the need for external equipment.

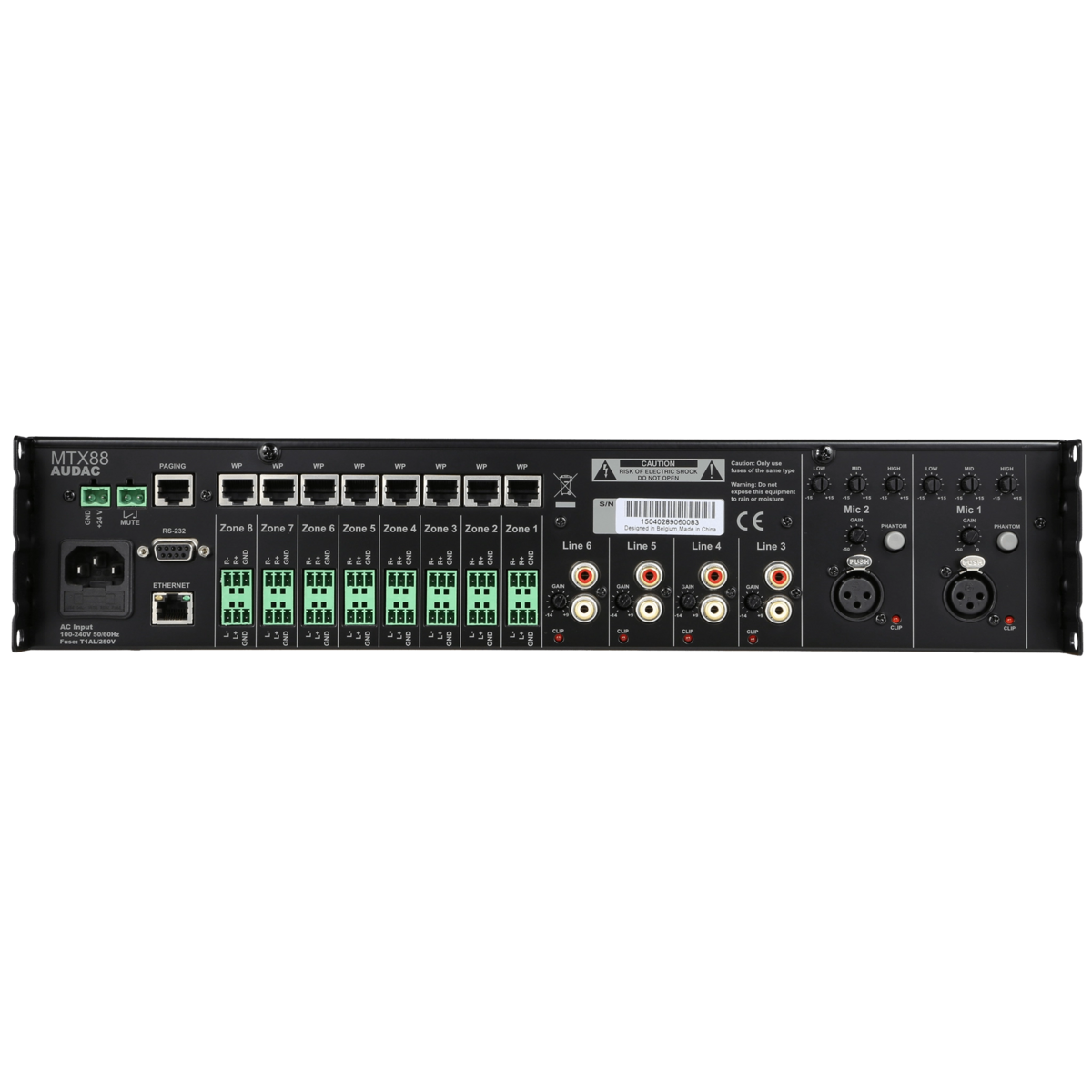

| Specification | Details |
|---|---|
| Microphone Inputs | 2 x Balanced XLR, Sensitivity: 0 dBV ~ -50 dBV, Phantom Power: 15 V DC |
| Line Inputs | 4 x Stereo Unbalanced RCA, Sensitivity: -14 dB ~ +9 dB |
| Wall Panel Inputs | 8 x RJ45 connectors |
| Outputs | 8 x Stereo Balanced Line (3-pin Euro Terminal Block) |
| Frequency Response | 20 Hz - 20 kHz (±3 dB) |
| Control Interfaces | Front panel, RS-232, TCP/IP (RJ45), Wall panel (RS-485), AUDAC Touch? app |
| Power Supply | 100 ~ 240 V AC / 50 ~ 60 Hz; 24 V DC (emergency power) |
| Power Consumption | 12 W |
| Dimensions (W x H x D) | 482 x 88 x 335 mm |
| Weight | 5.0 kg |
The MTX88 delivers high-quality audio distribution with minimal distortion, ensuring clear and reliable sound across all zones. Its user-friendly interface, combined with flexible control options, makes it suitable for both technical operators and end-users. The system's scalability and integration capabilities allow it to adapt to various installation sizes and requirements.
Q: Can the MTX88 handle both microphone and line-level inputs simultaneously?
A: Yes, the MTX88 is equipped with two balanced microphone inputs and four stereo line-level inputs, allowing simultaneous use of multiple audio sources.
Q: Is it possible to control the MTX88 remotely?
A: Absolutely. The MTX88 can be controlled via its web-based interface, the AUDAC Touch? app available for smart devices, or through RS-232 and TCP/IP protocols for integration with automation systems.
Q: Does the MTX88 support emergency power operation?
A: Yes, the unit includes a 24V DC power connection to maintain operation during mains power outages, ensuring continuous audio distribution in critical situations.
Q: Are there optional accessories for wall-mounted control?
A: AUDAC provides compatible wall panels (e.g., MWX series) that allow remote zone control, source selection, and volume adjustments.
Q: What type of environments is the MTX88 best suited for?
A: The MTX88 is ideal for commercial installations, including retail spaces, restaurants, corporate offices, and educational institutions that require multi-zone audio distribution.
