TXA-110 1 Channel 35W UHF Portable PA With Handheld Microphone

#17.2420H

TXA-110 1 Channel 35W UHF Portable PA With Handheld Microphone

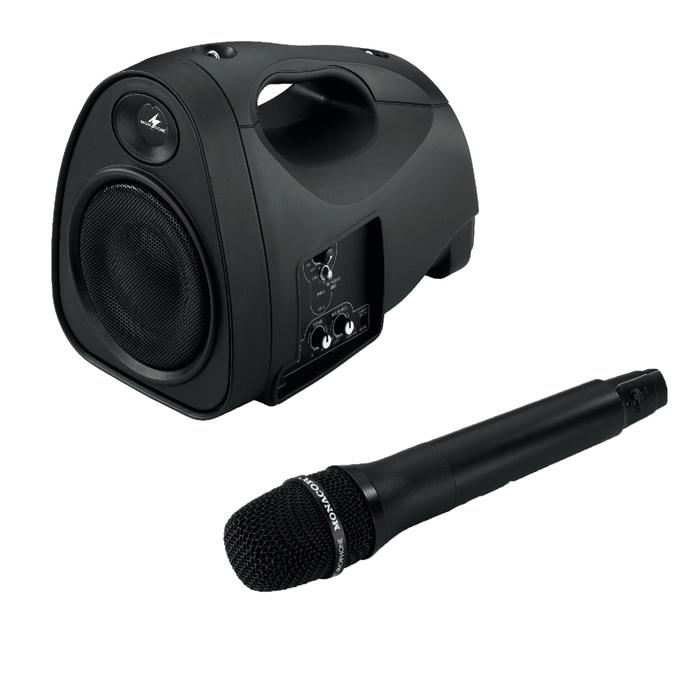

The TXA-110 Portable PA System Contains two elements. The TXA-110 is the 35W PA Unit with Built in Multi Frequency Wireless Receiver on Band DR70 (License Free) and the TXA-100HT, which is the corresponding Wireless Hand Held Transmitter.

Together they make a fantastic, lightweight and portable solution for presentations with excellent voice clarity and a super 3 year warranty.

Features:

  • Ideally suited for mobile applications, e.g. at sales events, lectures
  • Robust plastic housing of compact size with carrying handle and carrying strap
  • Operation via built-in rechargeable lead gel battery 12V/2.7Ah (operating time: up to 3 hours) or supplied switch-mode PSU
  • Integrated automatic charging of rechargeable battery
  • 1 wireless microphone channel with 16 selectable UHF frequencies (863- 865MHz) and volume control
  • 1 microphone input via 6.3mm mono jack, 1 line input via 3.5mm mono jack, common volume control and tone control
  • 1 mix output via 3.5mm mono jack
  • 9mm ( 3/8 ') stand thread, can be mounted onto a speaker stand with standard diameter with stand adapter EBH-48 (available at option)
  • Supplied with practical protective shoulder bag which can stay on during operation

    Technical Specifications:

  • Output power 50WMAX/36WRMS
  • Frequency Response 60-15,000Hz
  • Wireless Frequency 863-865MHz (De-Regulated CH70)
  • Approximate Wireless Operational Range 30m
  • Mic inputs 10mV
  • Line inputs 100mV
  • Mix output 560mV
  • Equalizer ±8dB/10kHz
  • Power Supply rech. batt. 12V/2.7Ah, 19V DC current /2.6A via suppl. PSU 100-240V˜/50-60Hz/180VA
  • Admiss. ambient temp.0-40 °C
  • Dimensions 160x210x290mm
  • Weight 4.2kg

    Microphone

    Hand-held Microphone with integrated Multi-Frequency Transmitter, with UHF PLL technology. Matching the portable amplifier systems TXA-110 and TXA-120.

  • Dynamic microphone cartridge, cardioid characteristic 16 selectable UHF frequencies (863-865MHz)- License Free on DR70
  • Battery status indication
  • Transmitting power: < 10mW (EIRP)
  • Power supply via 2 x 1.5V battery AA size (not supplied)

    Technical Specifications:

  • Microphones Carrier frequency 863-865MHz
  • Audio frequency range 50-18,000Hz
  • Frequency stability ±0.005%
  • Dimensions 50mm x 255mm
  • Weight 290g



This item has been discontinued Item has been discontinued
3 year(s) warranty 3 Year Warranty On this product
Need help? Need Any Help? Ask a question
Delivery Free UK Delivery
Returns Hassle-free returns mean that you can shop in confidence that if you need to return an item, it's easy.
