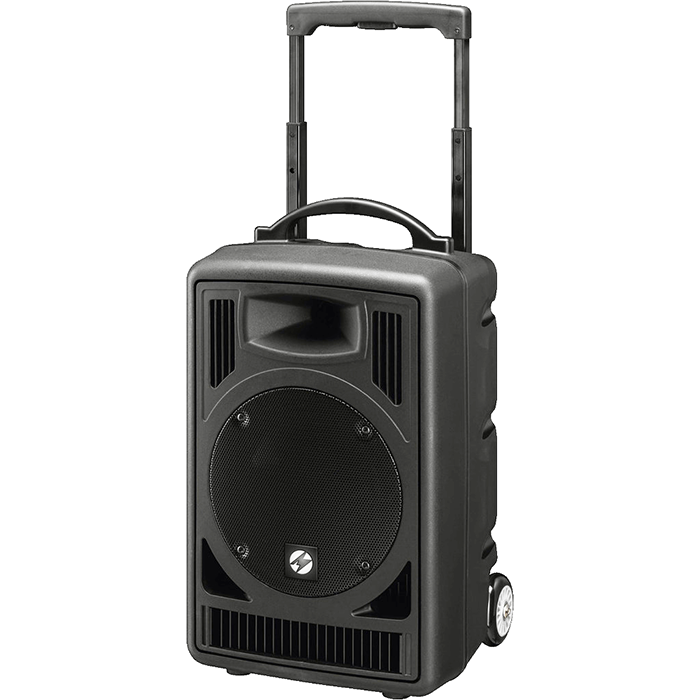

The TXA-822CD is a premium all-in-one portable PA system designed for demanding professional applications. Equipped with dual UHF multi-frequency wireless receivers, an integrated CD player, Bluetooth, SD and USB media playback, and a built-in wireless transmitter, this unit offers exceptional versatility and expandability. Ideal for mobile events, lectures, and public speaking engagements, it delivers powerful and clear sound while offering wireless connectivity to additional PA units.
Engineered for mobility and performance, the TXA-822CD boasts a robust housing with a 2-way speaker system capable of delivering high-fidelity audio. It includes a slot-in CD player with anti-shock protection, USB and SD playback, and a retractable handle for easy transport. Designed for professional use, it features secure wireless operation on licence-free frequencies, with automatic battery charging, providing up to 5 hours of untethered use.
| Specification | Details |
|---|---|
| Output Power | 80 W max / 50 W RMS |
| Frequency Range | 70 - 16,000 Hz |
| Carrier Frequency | 863.1 - 864.9 MHz (16 channels) |
| Operating Range | Approx. 30 m (line of sight) |
| Input Sensitivity | Mic: 6 mV, Line: 130 mV |
| Equaliser | Bass: ±15 dB / 100 Hz, Treble: ±10 dB / 10 kHz |
| Media Inputs | CD, USB, SD card, Bluetooth |
| Audio Inputs | XLR/6.3 mm combi mic, RCA stereo line, 6.3 mm mic jack |
| Audio Outputs | RCA stereo line out |
| Power Supply | 230 V AC / 50 Hz / 130 VA or 2 × 12 V / 4.5 Ah rechargeable batteries |
| Operating Time | Approx. 5 hours (depending on usage) |
| Dimensions | 305 × 510 × 265 mm |
| Weight | 13.7 kg |
| Ambient Temperature | 0 - 40 degreesC |
The TXA-822CD stands out for its flexibility and professional-grade features. Dual wireless receivers allow multiple presenters to operate simultaneously, while the integrated transmitter and media player support both simple and complex AV setups. Its long battery life, broad media compatibility, and robust build make it an ideal portable system for corporate, educational, or community events.
Q: How many wireless microphones can I use with the TXA-822CD?
A: The system supports two simultaneous wireless microphones, one for each built-in receiver. Compatible transmitters include TXA-800HT (handheld) and TXA-800HSE (headset).
Q: Can I wirelessly link this unit to other PA systems?
A: Yes, the built-in transmitter allows wireless linking to other TXA-820 or TXA-1020 units, ideal for multi-room or large venue use.
Q: What media formats are supported?
A: CD playback, USB and SD card files, Bluetooth streaming, and analogue inputs are all supported.
Q: Is it easy to transport?
A: Yes, it features a sturdy design with a retractable handle and optional tripod compatibility for convenient setup and mobility.
Q: Is a licence required to use the wireless functions?
A: No, the system operates on deregulated Channel 70 (863-865 MHz), which is licence-free in the EU.
