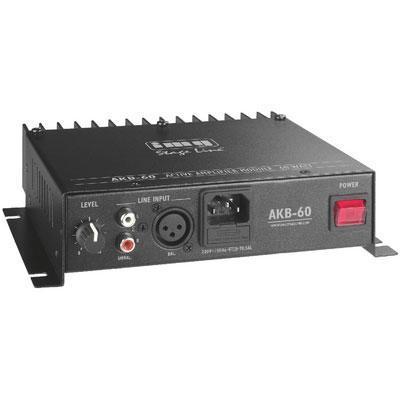

AKB-60 Compact Active PA Module

consisting of a preamplifier, a power amplifier and a mains supply unit. Speaker systems can easily be extended to active speaker systems. Just screw the module onto the rear side of the speaker cabinet and connect the speaker connection cable to the speaker input.

Inputs:

1 x XLR, balanced, jack/2 x RCA, unbalanced

Outputs:

Speaker cable for connecting 4-8Ω speaker systems

Other features:

Level control, short-circuit proof, protected against overheating

Technical Specification

• RMS output power 45WRMS 30WRMS
• Music output power 60WMAX 40WMAX
• THD < 0.01%
• Intermodulation -
• Output impedance 4-8Ω
• Frequency range 15-50,000Hz
• Power bandwidth -
• Input impedance 20kohm bal., 11kohm unbal.
• Input voltage 0.4V S/N ratio > 80dB
• Quiescent current -
• Power supply 230V~/50Hz/90VA
• Recommended heat sink (min.) -
• Req. panel cutout -
• Dimensions 212x190x52mm
• Weight 1.5kg
