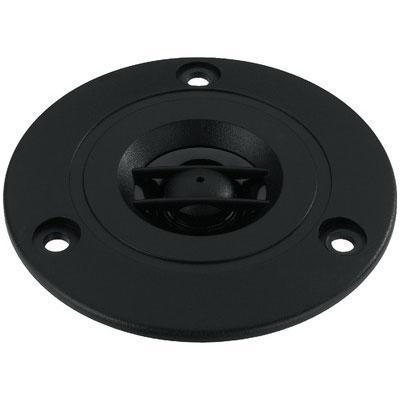

Number One DT-74/8 Miniature HiFi tweeter, 30W Max. 8ohm

#10.2070

£19.00 inc vat
£15.83 ex vat
delivery time Want it tomorrow?
Order within -:- and choose Saturday delivery
Miniature HiFi tweeter, 30W Max 8ohm

11mm dome with diffuser, extra high efficiency, very brilliant sound similar to some ribbon tweeters, suitable for HiFi and Public Address.

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 2kHz
  • Max. frequency range fx-18kHz
  • Rec. crossover freq. (12dB) 5kHz
  • Music power 30WMAX
  • Power rating 15WRMS
  • SPL (1W/1m) 98dB
  • Voice coil diameter 11mm
  • Magnet diameter 45.5mm
  • Mounting cutout Ø 50mm
  • Mounting depth 24mm
  • Dimensions Ø 74mm
  • Weight 0.115kg
