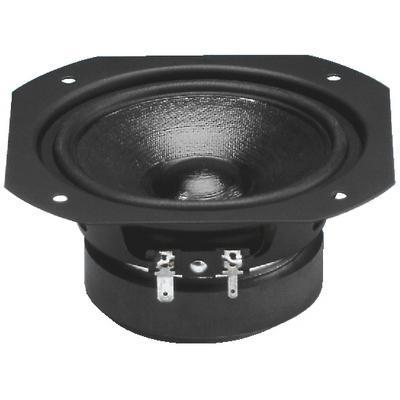

Number One MSH-115 4" HiFi Midrange Speaker 120W Max. 8 Ohm

#10.1840

£54.00 inc vat
£45.00 ex vat
delivery time Want it tomorrow?
Order within -:- and choose Saturday delivery
High-End Speaker Technology matching the SPH-... series, coated special cone with highly dampening dust cap and extra flat basket (does not have to be recessed!), top linearity, perfect mass-drive ratio with a wide bandwidth, HiFi for highest requirements.

Technical Specifications:

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 85Hz
  • Max. frequency range fx-10,000Hz
  • Rec. crossover freq. (fmax.) 300/5,000Hz
  • Music power 120WMAX (400-5,000Hz)
  • Power rating (P) 50WRMS
  • SPL (1W/1m) 89dB
  • Suspension compl. (Cms) 0.8mm/N
  • Moving mass (Mms) 4.5g
  • Mech. Q factor (Qms) 1.98
  • Electr. Q factor (Qes) 0.55
  • Total Q factor (Qts) 0.43
  • Equivalent volume (Vas) 4 l
  • DC resistance (Re) 6.3ohm
  • Voice coil induct. (Le) 0.3mH
  • Voice coil diameter 25mm
  • Voice coil former aluminium
  • Voice coil winding height 7mm
  • Air gap height 4mm
  • Linear excursion (XMAX) ±1.5mm
  • Eff. cone area (Sd) 55 cm2
  • Volume displacement (Vd) 8.25cm3
  • Force factor (BxL) 4.8Tm
  • Magnet diameter 72mm
  • Magnet weight 230g
  • Mounting cutout Ø 101mm
  • Mounting depth 55mm
  • Dimensions 115x115mm
  • Weight 0.6kg
  • Rec. net cabinet volume: (Closed) 2.5 - 5 l
