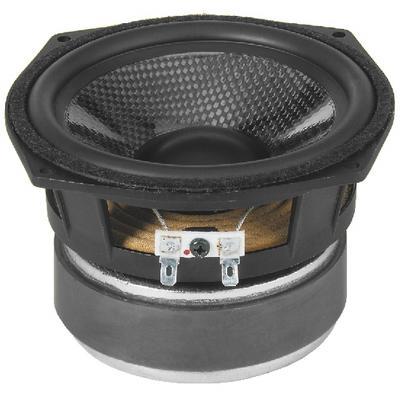

Number One SPH-135C Midrange speaker 5" 80W Max. 8ohm

#10.2310

£79.00 inc vat
£65.83 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery
Midrange Speaker

A high-end bass-midrange speaker frequently approved, parameters for deep bass reproductions, very long excursion, a speaker for very slim 2-way column speaker systems with an astonishing low fundamental bass and high level stability.

Technical Specification

  • Impedance (Z) 8Ω
  • Resonant frequency (fs) 40Hz
  • Max. frequency range f3-8,000Hz
  • Music power 80WMAX
  • Power rating (P) 50WRMS
  • SPL (1W/1m) 88dB
  • Suspension compl. (Cms) 1.35mm/N
  • Moving mass (Mms) 12g
  • Mech. Q factor (Qms) 4.48
  • Electr. Q factor (Qes) 0.43
  • Total Q factor (Qts) 0.39
  • Equivalent volume (Vas) 17 l
  • DC resistance (Re) 6Ω
  • Force factor (BxL) 6.5Tm
  • Voice coil induct. (Le) 0.75mH
  • Voice coil diameter 35.5mm
  • Voice coil former Kapton
  • Linear excursion (XMAX) ±3.5mm
  • Eff. cone area (Sd) 95cm2
  • Magnet weight 17.7oz.
  • Weight 1.5kg
