Number One SPH-135KEP Midrange Speaker 80W Max. 8ohm

#10.2410

£89.00 inc vat
£74.17 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery

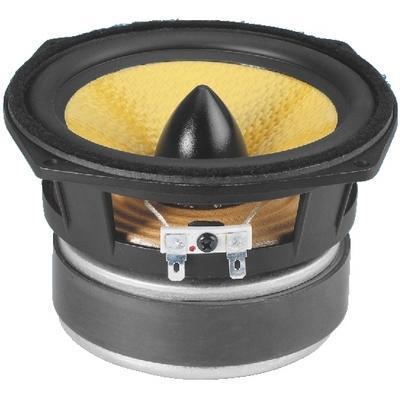

Midrange Speaker

With Kevlar cone and phase plug, a midrange speaker of the extra class which can also be used as a bass-midrange speaker in small bookshelf speaker systems providing a deep bass reproduction. However, an optimum sound source for the entire vocal range above 200Hz!

Technical Specification

  • Impedance (Z) 8Ω
  • Resonant frequency (fs) 45Hz
  • Max. frequency range f3-10,000Hz
  • Music power 80WMAX
  • Power rating (P) 50WRMS
  • SPL (1W/1m) 89dB
  • Suspension compl. (Cms) 1.23mm/N
  • Moving mass (Mms) 10g
  • Mech. Q factor (Qms) 5.54
  • Electr. Q factor (Qes) 0.32
  • Total Q factor (Qts) 0.30
  • Equivalent volume (Vas) 15.5 l
  • DC resistance (Re) 6Ω
  • Force factor (BxL) 7.5Tm
  • Voice coil induct. (Le) 0.75mH
  • Voice coil diameter 35.5mm
  • Voice coil former Kapton
  • Linear excursion (XMAX) ±3.25mm
  • Eff. cone area (Sd) 95cm2
  • Magnet weight 550g + 17g
  • Weight 1.52kg
