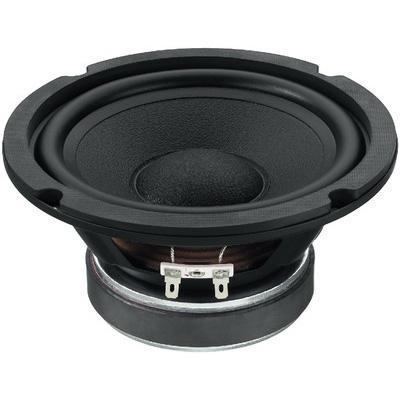

Number One SPH-170TC 6.5" Midrange Speaker 2x60W Max. 8ohm
#10.1440
£49.00 inc vat
£40.83 ex vat
Want it tomorrow?
Order within -:-
and choose Saturday delivery
Dual voice coil and polypropylene cone with good midrange attenuation, suitable for both very small subwoofers and high-power 2-way speaker systems. Klang+Ton 6/00 "A real big hit for that price!"
Technical Specification
- Impedance (Z) 2 x 8ohm
- Resonant frequency (fs) 33Hz
- Max. frequency range f3-5,000Hz
- Rec. crossover freq. (fmax.) 3,000Hz
- Music power 2 x 60WMAX
- Power rating (P) 2 x 40WRMS
- SPL (1W/1m) 88dB
- Suspension compl. (Cms) 1.38mm/N
- Moving mass (Mms) 16g
- Mech. resistance (Rms) 1.1kg/s
- Mech. Q factor (Qms) 2.98
- Electr. Q factor (Qes) 0.48
- Total Q factor (Qts) 0.41
- Equivalent volume (Vas) 31 l
- DC resistance (Re) 2 x 7.5ohm;/ 3.8ohm
- Voice coil induct. (Le) 2 x 0.6mH/ 0.6mH
- Voice coil diameter 25.5mm
- Voice coil former Kapton
- Voice coil winding height 10.5mm
- Air gap height 6mm
- Linear excursion (XMAX) ±2.25mm
- Eff. cone area (Sd) 127cm2
- Volume displacement (Vd) 28.6cm3
- Force factor (BxL) 5.2Tm
- Reference efficiency (No) 0.2%
- Magnet diameter 100mm
- Magnet weight 380g
- Mounting cutout Ø 142mm
- Mounting depth 82mm
- Dimensions Ø 166mm
- Weight 1.4kg
- Rec. net cabinet volume
- Closed
- 16 l
- Bass-reflex
- 36 l
In stock
Call for delivery times
