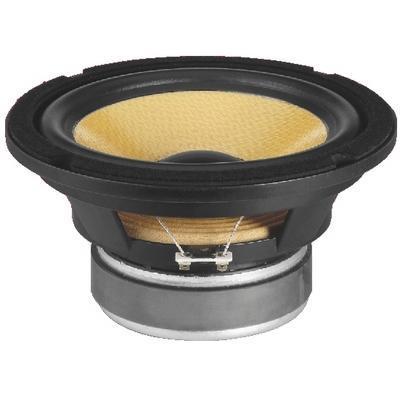

Number One SPH-200KE 8" Midrange Speaker 120W Max. 8ohm

#10.2370

£105.00 inc vat
£87.50 ex vat
delivery time Want it Tuesday, 30th Apr?
Order within -:- and choose next-day delivery
Midrange Speaker

With Kevlar cone and aluminium diecast basket for 3-way and 2-way combinations of highest quality. A well-approved and popular speaker with full range applications and an excellent bass reproduction in the entire HiFi range.

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 28Hz
  • Max. frequency range f3-4,500Hz
  • Music power 120WMAX
  • Power rating (P) 80WRMS
  • SPL (1W/1m) 90dB
  • Suspension compl. (Cms) 0.89mm/N
  • Moving mass (Mms) 37g
  • Mech. Q factor (Qms) 4.65
  • Electr. Q factor (Qes) 0.41
  • Total Q factor (Qts) 0.38
  • Equivalent volume (Vas) 54 l
  • DC resistance (Re) 6.2ohm
  • Force factor (BxL) 9.9Tm
  • Voice coil induct. (Le) 0.75mH
  • Voice coil diameter 50mm
  • Voice coil former Kapton
  • Linear excursion (XMAX) ±4.75mm
  • Eff. cone area (Sd) 207cm2
  • Magnet weight 840g + 50g
  • Weight 2.8kg
