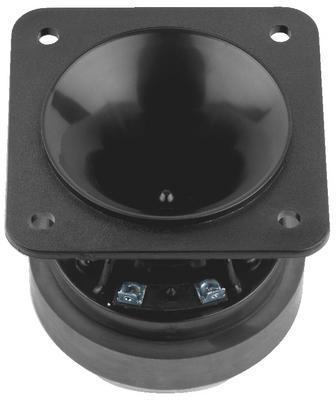

IMG Stageline HT-88 Horn Tweeter 100W Max. 8ohm
#10.3170
£28.80 inc vat
£24.00 ex vat
Horn tweeter, 100WMAX, 8ohm
Ferrofluid-cooled and dampened horn tweeters (except for HT-85PA) for universal PA applications.
Very linear and wide bandwidth radiation with good efficiency.
Technical Specification
- Impedance (Z) 8Ω
- Resonant frequency (fs) 2.5kHz
- Max. frequency range fx-18kHz
- Rec. crossov. frequ. (fmax.) (12dB/oct.) 4kHz
- Music power 100WMAX
- Power rating (P) 50WRMS SPL (1W/1m) 99dB
- Radiation angle (vert./hor.) 60°/60°
- Voice coil diameter 25mm
- Magnet diameter 80mm
- Mounting cutout Ø 82mm
- Mounting depth 75mm
- Dimensions 87x87mm
- Weight 650g
