IMG Stageline SP-15A/402PA PA Speaker, 800W Max. 400W RMS, 8ohm 15"

#10.4940

£169.00 inc vat
£140.83 ex vat
delivery time Want it Wednesday, 8th Dec?
Order within -:- and choose next-day delivery
Professional Speakers from IMG Stage Line

Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range: these speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models.

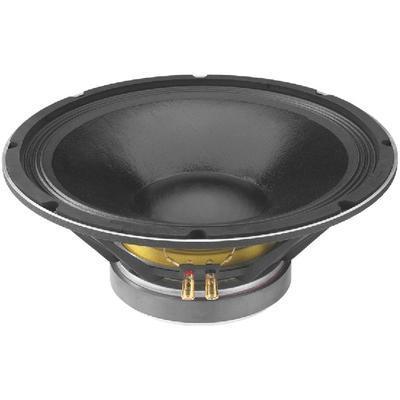

38cm (15") professional bass speaker of very high power capability and long excursion, diecast basket, water-repellent coated cone, very neat workmanship with a facing basket front, wide frequency response of high efficiency and an excellent deep bass reproduction, the drive system features a drilled pole core and an additional magnet for optimising the magnetic field and impedance linearisation. Very suitable for bass-reflex cabinets of medium size from 80 litres on. A very good speaker for all kinds of professional and semiprofessional PA applications.

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 36Hz
  • Max. frequency range f3-3,000Hz
  • Music power 800WMAX
  • Power rating (P) 400WRMS
  • SPL (1W/1m) 100dB
  • Suspension compl. (Cms) 0.22mm/N
  • Moving mass (Mms) 87g
  • Mech. Q factor (Qms) 7.45
  • Electr. Q factor (Qes) 0.33
  • Total Q factor (Qts) 0.31
  • Equivalent volume (Vas) 235 l
  • DC resistance (Re) 6.5ohm
  • Force factor (BxL) 19.9Tm
  • Voice coil induct. (Le) 0.9mH
  • Voice coil diameter 100mm
  • Voice coil former Kapton
  • Linear excursion (XMAX) 5mm
  • Eff. cone area (Sd) 881cm2
  • Magnet weight 2.3kg
  • Weight 8kg
