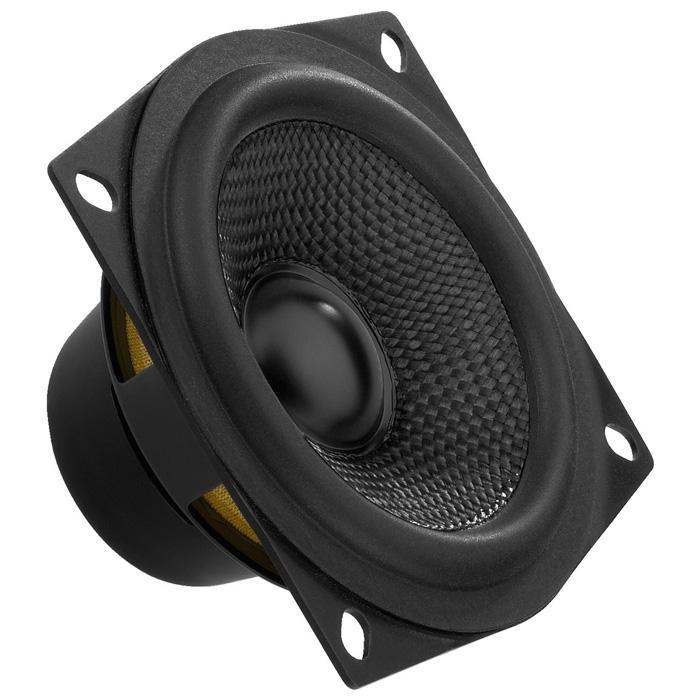

Monacor SPH-30X/8SW Miniature 3" Full Range Speaker 50W Max. 8 Ohm - Black Cone

Technical Specifications:

• Impedance (Z) 8 Ω
• Resonant frequency (fs) 105 Hz
• Max. frequency range f3-17,000 Hz
• Music power 50 WMAX
• Power rating (P) 20 WRMS
• SPL (1 W/m) 87 dB
• Suspension compl. (Cms) 0.90 mm/N
• Moving mass (Mms) 2.65 g
• Mech. Q factor (Qms) 8.59
• Electr. Q factor (Qes) 0.49
• Total Q factor (Qts) 0.42
• Equivalent volume (Vas) 1.3 l
• DC resistance (Re) 5.7 Ω
• Force factor (BxL) 4.48 Tm
• Voice coil induct. (Le) 0.5 mH
• Voice coil diameter 21 mm
• Voice coil former Kapton
• Linear excursion (XMAX) ±2 mm
• Eff. cone area (Sd) 30 cm2
• Magnet weight neodymium
• Weight 150 g
