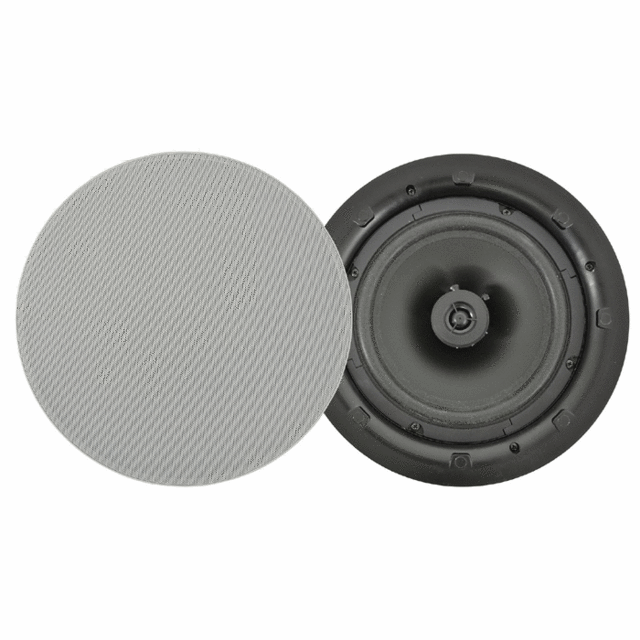

The Adastra LP8V is a discreet, low-profile ceiling speaker designed for professional and residential applications. Ideal for background music and public address in offices, retail spaces, restaurants, and educational institutions, it supports both 100 V line systems and 8 Ω low-impedance setups--offering exceptional installation flexibility for multi-zone audio environments.

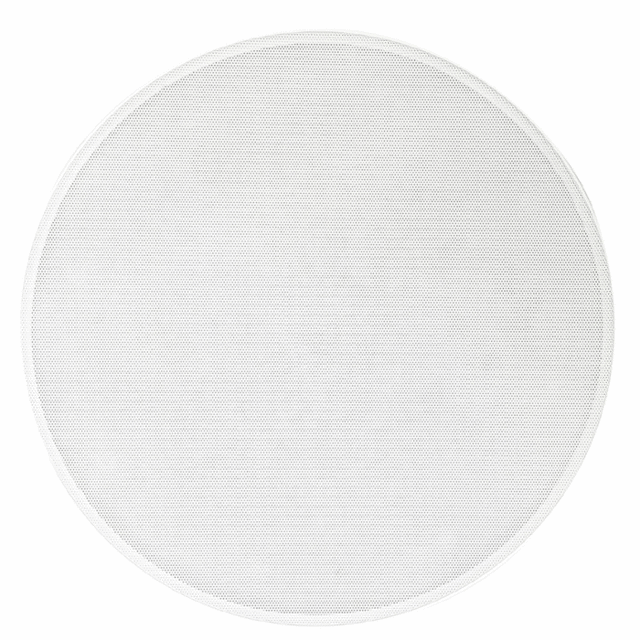

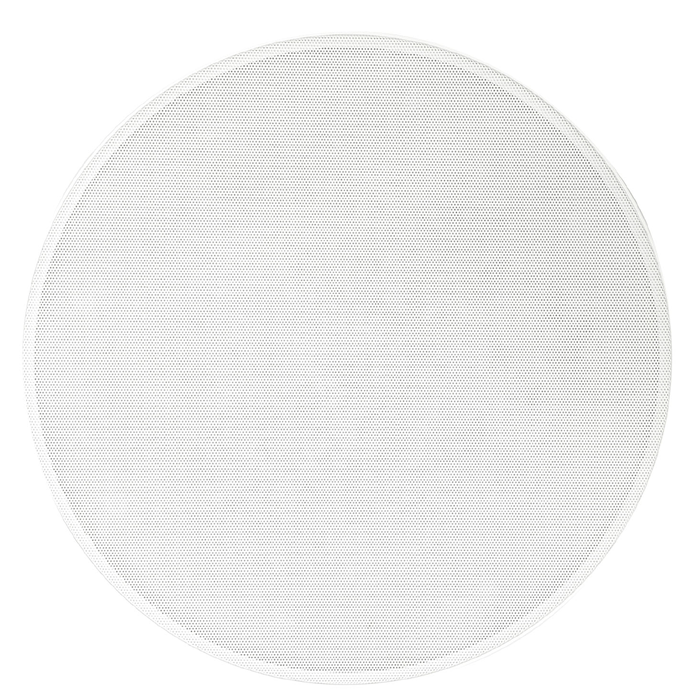

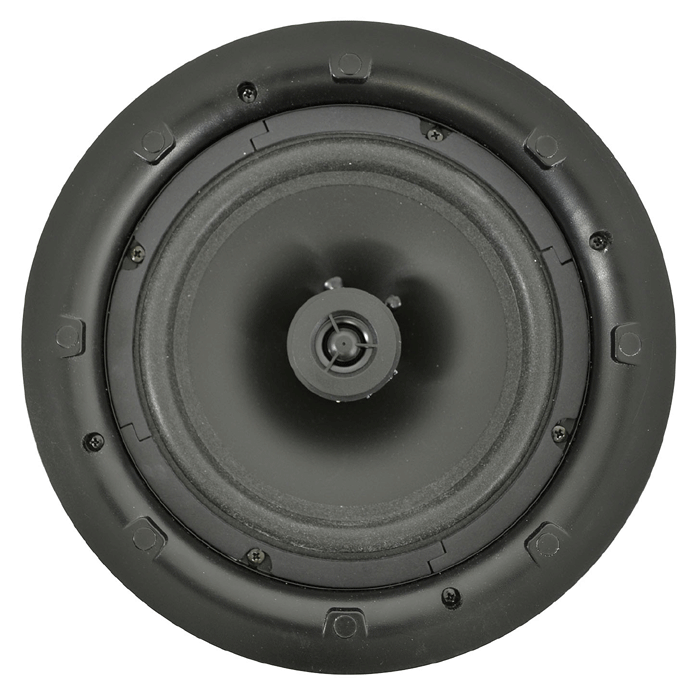

Engineered with a durable ABS baffle and flared waveguide, the LP8V houses a coaxial 8″ woofer and 1.75″ tweeter to ensure clear midrange and crisp highs. The paintable magnetic grille attaches seamlessly, enhancing visual appeal without sacrificing performance. Its robust build guarantees long-term reliability in indoor installations.
| Specification | Details |
|---|---|
| Power Source | 100 V line / 8 Ω |
| Impedance | 8 Ω or selectable taps at 10, 20, 30, 40, 50 W (100 V) |
| Driver Type | 2‑Way coaxial |
| Woofer Size | 200 mm (8″) |
| Tweeter Size | 44 mm (1.75″) |
| Frequency Response | 60 Hz-20 kHz |
| Max Power (8 Ω) | 120 W |
| RMS Power (8 Ω) | 60 W |
| RMS Power (100 V) | 50 W |
| SPL @1 W/1 m | 89 dB ±2 dB |
| Dispersion Angle | 160 degrees |
| Cut-out Diameter | 245 mm |
| Mounting Depth | 104 mm |
| Dimensions | Ø 281 mm × 108 mm depth |
| Weight | 1.98 kg |
| Additional Features | Magnetic paintable grille; secure dog-ear mounts |

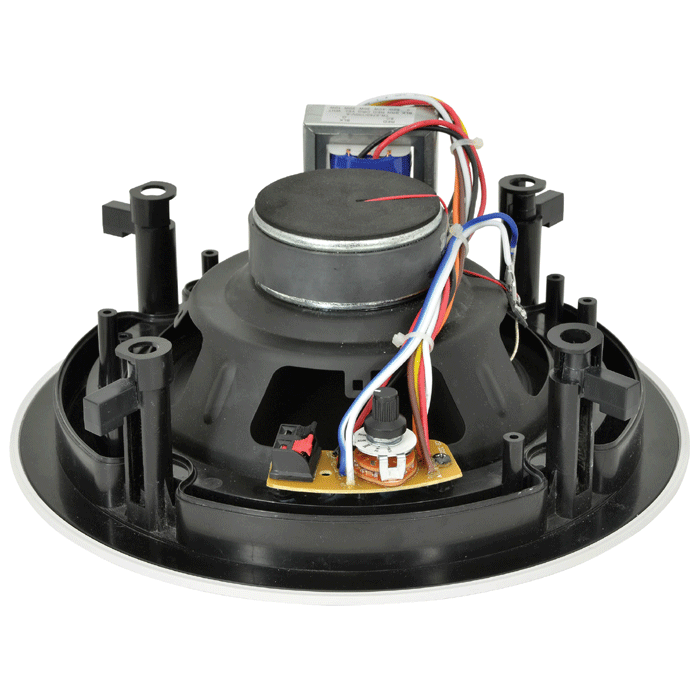

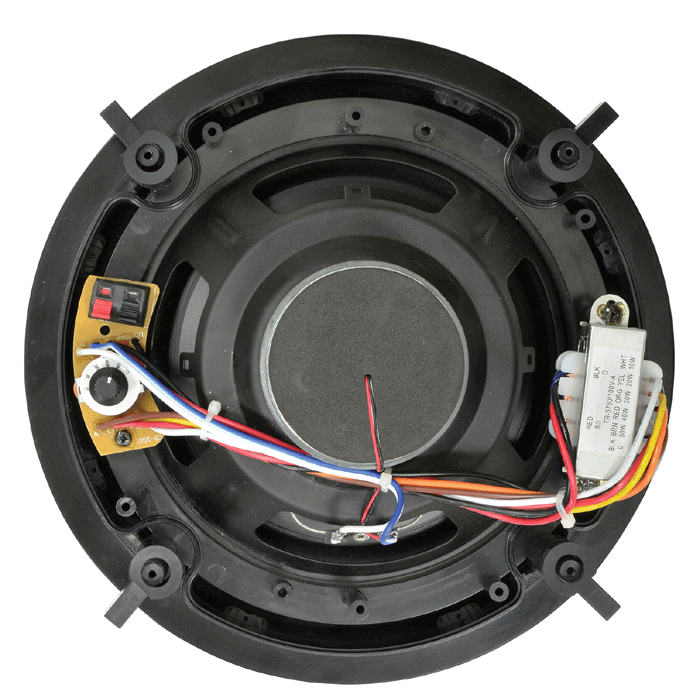

Whether used for music, speech or paging, the LP8V delivers well-balanced, intelligible sound with minimal distortion. Its low mounting profile and discreet grille design make it an ideal choice where aesthetics and audio quality are both priorities. Easily configurable using its rear rotary selector, it fits seamlessly into new builds or retrofits in both single-zone and complex multi-zone systems.
