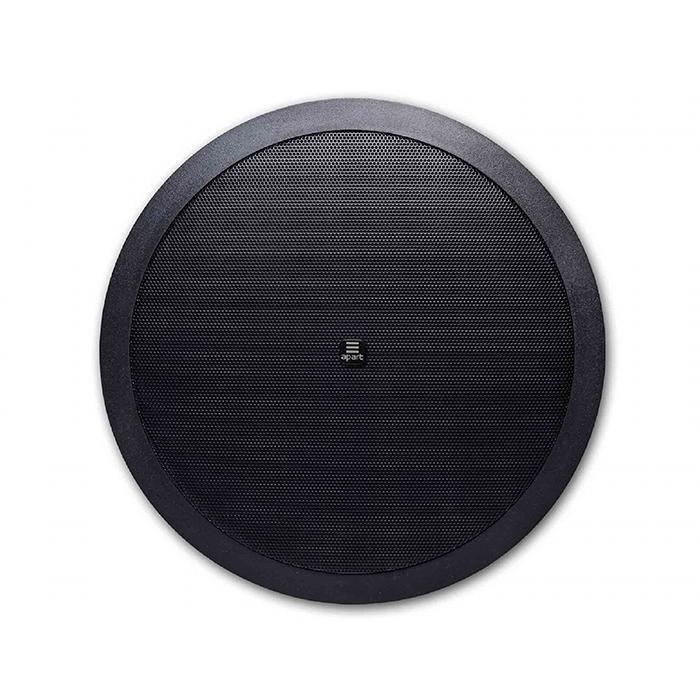

The Apart Audio CMX20T is a high-performance 8" two-way ceiling speaker designed for both commercial and residential installations. Its robust build and versatile features make it ideal for environments such as retail spaces, hospitality venues, offices, and even moisture-prone areas like bathrooms and kitchens. With its sleek black finish, the CMX20T seamlessly integrates into various interior designs while delivering exceptional audio quality.
Constructed with a durable ABS plastic housing, the CMX20T ensures longevity and resistance to environmental factors. The 8" reinforced polypropylene woofer, paired with a rubber edge, offers moisture resistance, making it suitable for humid conditions. An aluminium grille not only adds to its aesthetic appeal but also provides additional protection against moisture and dust. The speaker's design facilitates easy installation with a three-screw mounting system, with the screws concealed behind the grille for a clean finish.
| Specification | Details |
|---|---|
| Power Source | Passive (Amplifier Required) |
| Impedance | 16 Ohm / 100V Line |
| Woofer | 8" Reinforced Polypropylene with Rubber Edge |
| Tweeter | 1" Silk Dome |
| Frequency Response | 50 Hz - 20 kHz |
| SPL (1W/1m) | 88 dB |
| Max SPL | 108 dB |
| Transformer Power Taps (100V) | 2.5W, 5W, 10W, 20W |
| Material | ABS Housing, Aluminium Grille |
| IP Rating | IP54 |
| Dimensions (Ø x D) | 244 mm x 87 mm |
| Cutout Size | 223 mm |
| Weight | 1.4 kg |
The CMX20T delivers a warm and full-bodied sound, making it suitable for both speech and music applications. Its low distortion levels ensure clarity even at higher volume levels. The speaker's design allows for easy integration into various environments, and its moisture-resistant features expand its applicability to areas like bathrooms and kitchens. The updated Quick Fix connectors and transformer tapping sticker simplify the installation process, saving time and effort for installers.
Q: Can the CMX20T be used in a 100V line system?
A: Yes, the CMX20T is equipped with a high-quality 20W transformer with multiple power taps, making it suitable for 100V line systems.
Q: Is the speaker suitable for humid environments?
A: Absolutely. The speaker's moisture-resistant components and IP54 rating make it ideal for use in bathrooms, kitchens, and other humid areas.
Q: Can the grille be painted to match the ceiling?
A: Yes, the aluminium grille is paintable, allowing it to blend seamlessly with any interior décor.
Q: How many CMX20T speakers can I connect to a standard 4 Ohm amplifier?
A: In 16 Ohm mode, you can connect up to four CMX20T speakers in parallel on each channel of a standard 4 Ohm amplifier.
Q: What is the installation process like?
A: The CMX20T features a simple three-screw mounting system with Quick Fix connectors, making installation straightforward and efficient.
