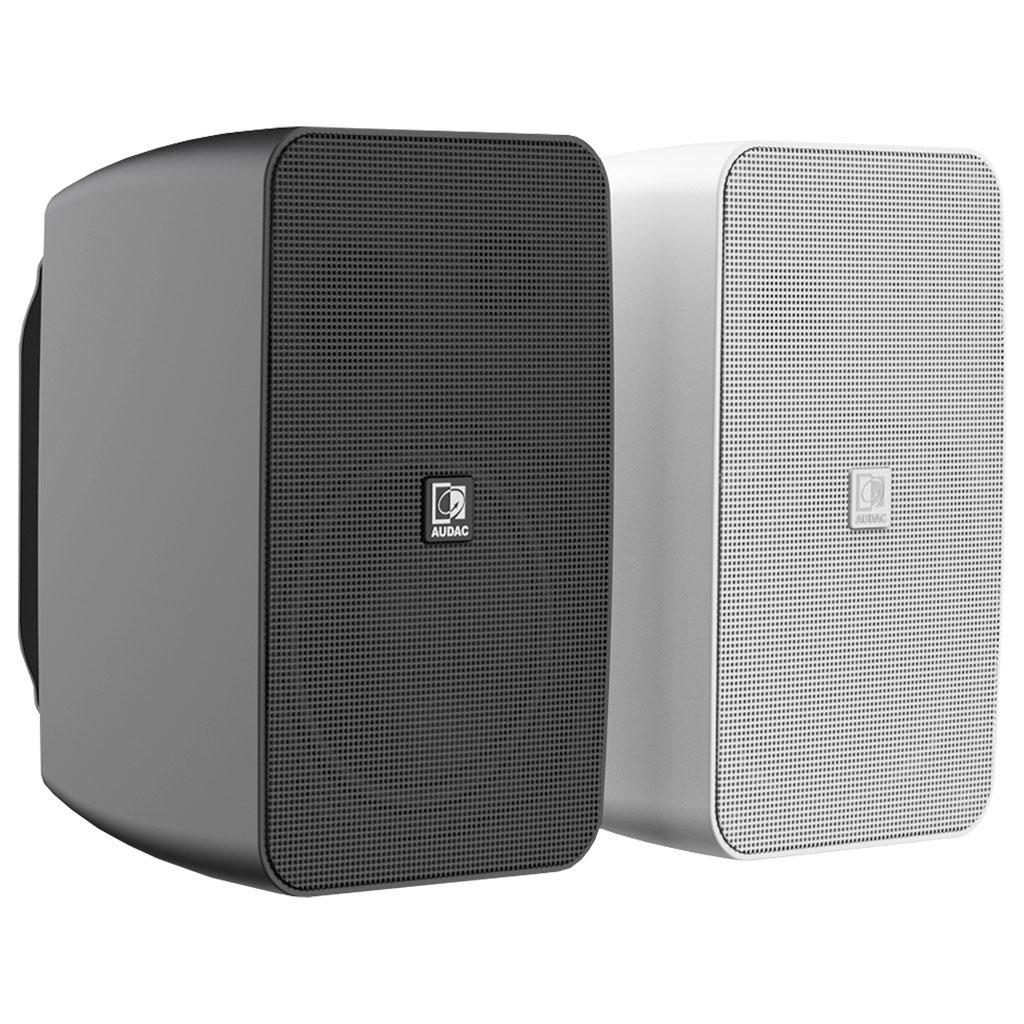

The Audac ARES5A is a compact, high-performance 2-way stereo active speaker system designed for professional and commercial environments such as educational institutions, corporate spaces, retail outlets, and hospitality venues. Comprising one active and one passive speaker, the ARES5A delivers a powerful and clear audio experience.
Equipped with a 51/4-inch polypropylene woofer and a 13-mm PEI tweeter, the ARES5A ensures a wide frequency response and excellent sound dispersion. The integrated Class-D amplifier provides 2 x 40 W of continuous power output, while the built-in DSP optimises audio performance. Its energy-efficient design includes an auto-standby mode, aligning with ENERGY STARRegistered standards.
The ARES5A features a contemporary and professional design with an impact and UV-resistant ABS enclosure, complemented by a powder-coated steel grille. Its compact dimensions and lightweight construction (3.5 kg per pair) facilitate easy installation. The included mounting bracket allows for both horizontal and vertical positioning with up to 45 degrees inclination, and an optional MBK455 bracket enables 90 degrees mounting for ceiling or corner installations.
| Specification | Details |
|---|---|
| Power Source | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Motor Type | Class-D Amplifier |
| Voltage | N/A |
| Battery Capacity | N/A |
| Frequency Response (±3 dB) | 80 Hz - 20 kHz |
| Sensitivity (1W/1m) | 89 dB |
| Max Sound Pressure (W/1m) | 105 dB |
| Inputs | 2 x 3-pin Euro Terminal Block (balanced), 2 x 3.5 mm Jack (unbalanced), RJ45 (remote) |
| Outputs | 2-pin Euro Terminal Block (passive speaker) |
| Drivers | LF: 51/4" Polypropylene, HF: 13 mm PEI Tweeter |
| Dispersion | Horizontal: 210 degrees, Vertical: 205 degrees |
| Dimensions (W x H x D) | 150 x 240 x 146 mm (excl. bracket), 150 x 240 x 194 mm (incl. bracket) |
| Weight | 3.5 kg (pair) |
| Construction | Impact & UV-resistant ABS with powder-coated steel grille |
| Additional Features | Auto-standby mode, remote control via RJ45, included mounting bracket |
The Audac ARES5A offers an impressive audio output for its size, delivering clean, full-bodied sound suitable for both speech and music playback. With simple installation and flexible connectivity, it caters well to system integrators and end-users alike. The built-in DSP ensures optimal tonal balance, while the auto-standby function supports eco-friendly operations in public and commercial venues. Its elegant design blends seamlessly into modern interiors, while the robust enclosure ensures reliability across a range of environments.
Q: Can the ARES5A be installed horizontally and vertically?
A: Yes, it includes mounting brackets for both orientations with up to 45 degrees tilt adjustment, and additional brackets are available for ceiling or corner setups.
Q: Is this speaker suitable for outdoor use?
A: The ARES5A is designed primarily for indoor use. While it has a durable ABS enclosure, it is not weatherproof. For outdoor use, a dedicated outdoor model is recommended.
Q: How is the ARES5A powered?
A: The active speaker is powered via mains AC (100-240 V), and the passive unit is connected directly to it via speaker cable.
Q: What remote control options are available?
A: The speaker is compatible with the Audac WP2xx series wall panels, enabling remote input selection and volume control across linked sets.
Q: Can I connect multiple input sources simultaneously?
A: Yes, it supports both balanced and unbalanced inputs, and the source can be managed using compatible remote control panels or a mixer.
