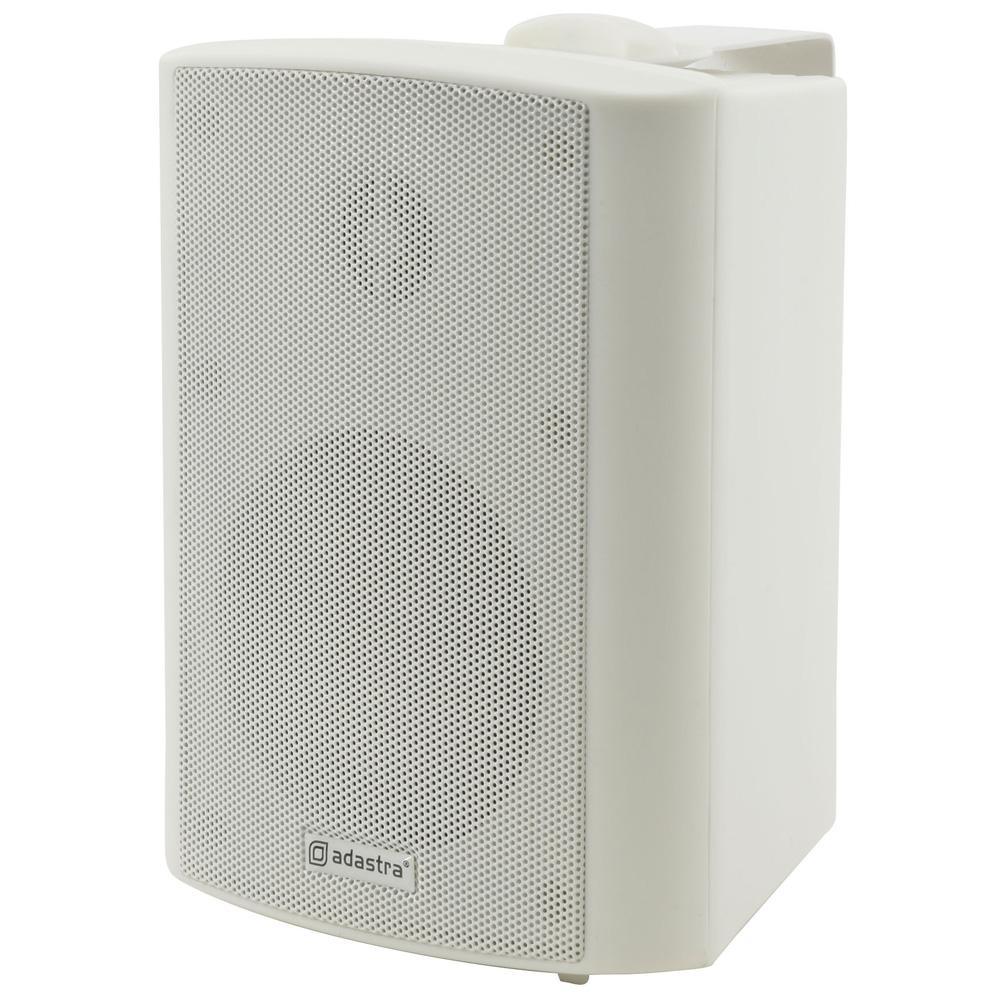

The Adastra BC4V is a compact, versatile 2-way wall-mounted speaker designed for both commercial and residential audio installations. Ideal for background music and public address systems, it offers flexible power options and straightforward installation, making it suitable for a variety of environments including offices, retail spaces, and educational institutions.
Constructed with a durable ABS enclosure and metal grille, the BC4V ensures durability and resistance to wear. Its compact dimensions (150 x 195 x 150 mm) and lightweight design (1.63 kg) make wall mounting easy with the included bracket. Available in both black and white finishes, it seamlessly integrates into various interior décors.
| Specification | Details |
|---|---|
| Power Source | Passive (requires external amplifier) |
| Driver Configuration | 4" woofer, 1" tweeter |
| Frequency Response | 110Hz - 20kHz |
| Power Handling (8 Ohms) | 70W max, 35W RMS |
| SPL @ 1W/1m | 88dB |
| 100V Tappings | 2.5W, 5W, 10W, 20W |
| Impedance | 8 Ohms (low impedance), 500/1k/2k/4k Ohms (100V line) |
| Dimensions (W x H x D) | 150 x 195 x 150 mm |
| Weight | 1.63 kg |
| Colour Options | Black or White |
The Adastra BC4V delivers clear and balanced audio, making it suitable for both speech and background music applications. Its flexible power settings and dual impedance options allow for integration into various audio systems. The installation process is effortless, aided by the included mounting bracket and spring terminal connections.
Q: Can this speaker be used in both 100V line and low-impedance systems?
A: Yes, the BC4V features a rotary switch that allows selection between 100V line power taps and an 8 Ohm setting for low-impedance systems.
Q: Is the speaker suitable for outdoor use?
A: The BC4V is designed for indoor use. For outdoor applications, a weather-resistant speaker would be more appropriate.
Q: Does the speaker come with mounting hardware?
A: Yes, it includes a wall-mounting bracket for easy installation.
Q: What type of amplifier is required for this speaker?
A: As a passive speaker, the BC4V requires an external amplifier compatible with either 100V line or 8 Ohm outputs, depending on your system configuration.
Q: Are there colour options available?
A: Yes, the speaker is available in both black and white finishes to match different interior designs.
