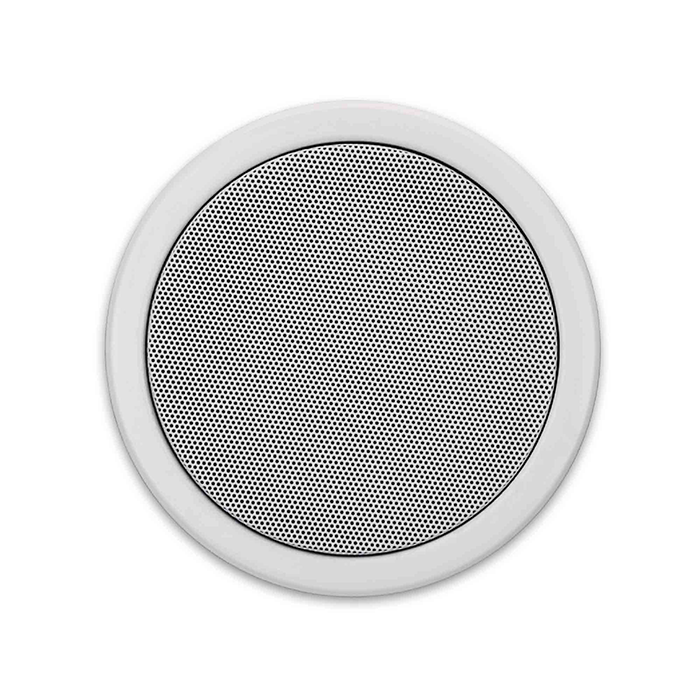

The Apart Audio CM6TSMF is a 6.5-inch fireproof ceiling speaker designed for professional audio installations in environments such as hallways, boutiques, offices, and emergency evacuation systems. It offers high-quality background music and clear vocal announcements, ensuring excellent speech intelligibility and wide dispersion.
Constructed entirely of metal, the CM6TSMF features a steel speaker grille, back-can, and mounting dog-ears, ensuring durability and compliance with stringent fire safety regulations. The inclusion of a back-can prevents acoustic short circuits in perforated ceilings and minimises sound transmission to adjacent floors, enhancing audio performance and privacy.
| Specification | Details |
|---|---|
| Loudspeaker System | Dual Cone |
| Woofer Size | 6.5 inches |
| Frequency Response | 90 Hz - 19 kHz |
| SPL 1W/1m | 94 dB |
| Max SPL 1m | 101 dB |
| Dispersion Angle (1 kHz) | 180 degrees |
| 100V Transformer Power Taps | 6W, 3W, 1.5W |
| IP Rating | IP60 |
| Dimensions (Diameter x Depth) | 205 mm x 120 mm |
| Cutout Diameter | 182 mm |
| Weight | 1.5 kg |
The CM6TSMF delivers clear and reliable sound quality, making it ideal for background music and vocal announcements. Its wide dispersion ensures even coverage, reducing the number of speakers needed in a given area. The fireproof construction and integrated back-can enhance safety and audio performance, while the straightforward installation process saves time and effort for installers.
Q: Is the CM6TSMF suitable for use in emergency evacuation systems?
A: Yes, its fireproof all-metal construction and clear speech intelligibility make it ideal for emergency and evacuation systems.
Q: Can the CM6TSMF be used in damp environments?
A: The speaker has an IP60 rating, indicating protection against dust but not against water. It is not recommended for use in damp environments.
Q: What ceiling thickness can the CM6TSMF accommodate?
A: The installation grip range is 1 to 30 mm, allowing it to fit a variety of ceiling thicknesses.
Q: Does the speaker come with a built-in transformer?
A: Yes, it includes a 100V transformer with power taps at 6W, 3W, and 1.5W for flexible installation options.
Q: How does the back-can benefit the installation?
A: The back-can prevents acoustic short circuits in perforated ceilings and reduces sound transmission to adjacent spaces, improving overall sound quality and privacy.
