The Clever Acoustics CS 840HP is a professional-grade 8" coaxial ceiling speaker engineered for high-fidelity audio performance in commercial and public installations. Perfectly suited for background music, paging, and voice reinforcement, this 100V line speaker is designed for use in retail environments, offices, hospitality venues, and educational facilities. Its robust design and adaptable power settings make it a versatile and reliable audio solution for installers and audio engineers.

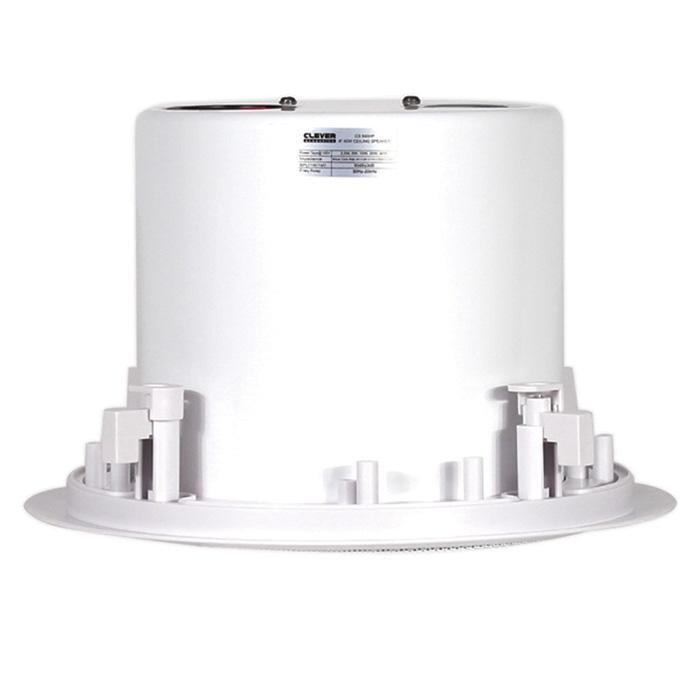

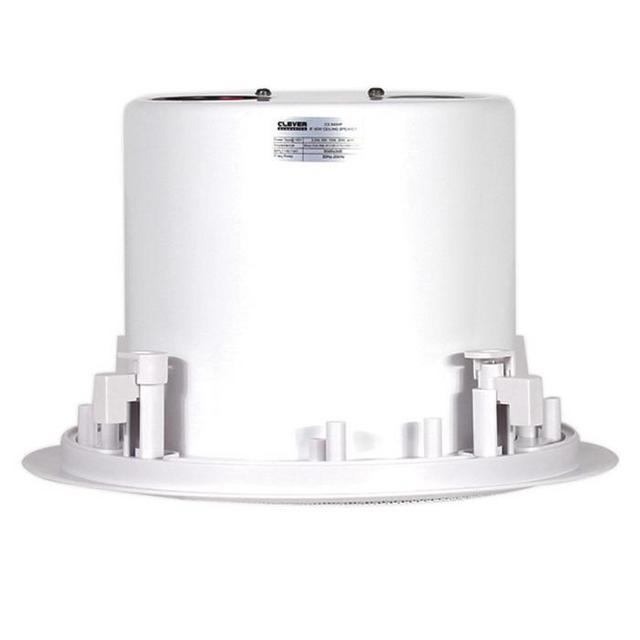

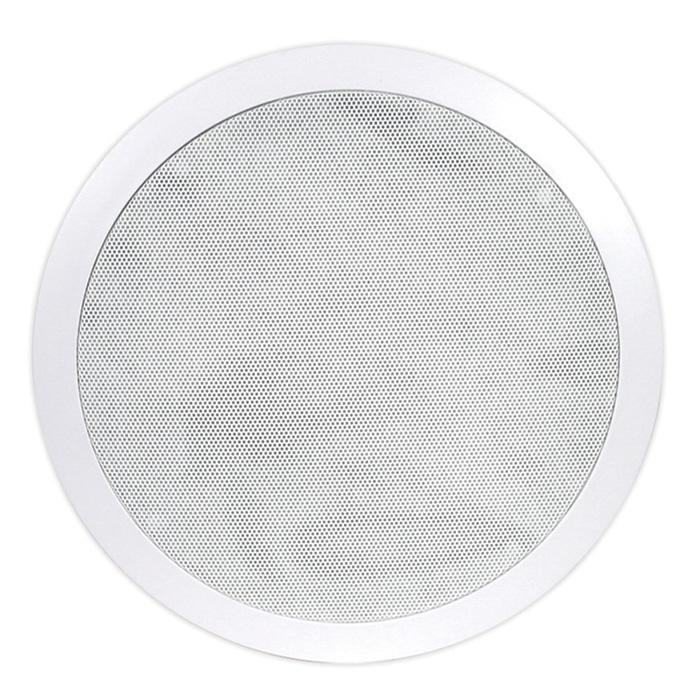

The CS 840HP boasts a durable construction comprising a metal grille, ABS baffle, and a heavy-duty metal enclosure for superior performance and extended longevity. The flush-mount design with integrated dog-ear retaining clips ensures a secure and seamless installation. Engineered with installer efficiency in mind, the speaker also features a spring terminal block for rapid and solid connections. The rugged enclosure enhances both durability and low-frequency acoustic performance.
| Specification | Details |
|---|---|
| Power Source | 100V Line / 8Ω Low Impedance |
| Speaker Type | 2-Way Coaxial Ceiling Speaker |
| Power Taps | 40W, 20W, 10W, 5W @ 100V |
| Frequency Response | 70 Hz - 20 kHz |
| SPL (1W/1m) | 91 dB |
| Driver | 8" Woofer + 1" Tweeter |
| Cut-Out Diameter | 255 mm |
| Dimensions | 285 x 150 mm |
| Weight | 2.3 kg |
| Additional Features | Spring Terminal Block, Dog-Ear Mounts |
The Clever Acoustics CS 840HP delivers impressive audio coverage and intelligibility. It excels in both speech and music playback across various settings. Its coaxial driver arrangement enhances dispersion, ensuring uniform sound distribution. With a focus on practical installation and long-term reliability, it meets the demands of system integrators and commercial installers looking for consistent performance with minimal maintenance.
Q: Can this speaker be used in both 100V line and low impedance systems?
A: Yes, the CS 840HP supports both 100V line operation with multiple power taps and an 8Ω low impedance configuration.
Q: Is it suitable for background music in a retail environment?
A: Absolutely. Its wide frequency response and coaxial design make it ideal for clear, consistent background music and announcements.
Q: What is the installation method?

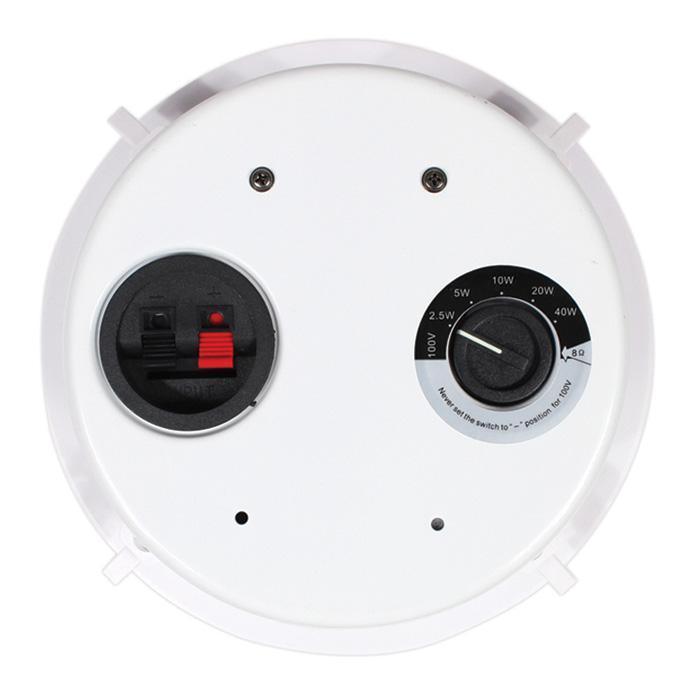

A: The speaker uses flush-mount dog-ear clamps and spring terminals for easy and secure ceiling installation.
Q: Does the speaker come with fire safety features?
A: Yes, its all-metal back can and grille contribute to enhanced fire resistance, suitable for commercial and public premises.
Q: What cable types are recommended for connection?
A: Standard speaker cables compatible with spring terminals are recommended for both 100V and low impedance setups.
