The Pioneer CM-S58T is a versatile 8-inch surface mount loudspeaker designed for professional audio installations in settings such as retail spaces, restaurants, corporate offices, and educational institutions. Drawing from Pioneer's heritage in club loudspeaker engineering, the CM-S58T delivers high-quality, reliable, and adaptable audio performance, suitable for both indoor and select outdoor applications.

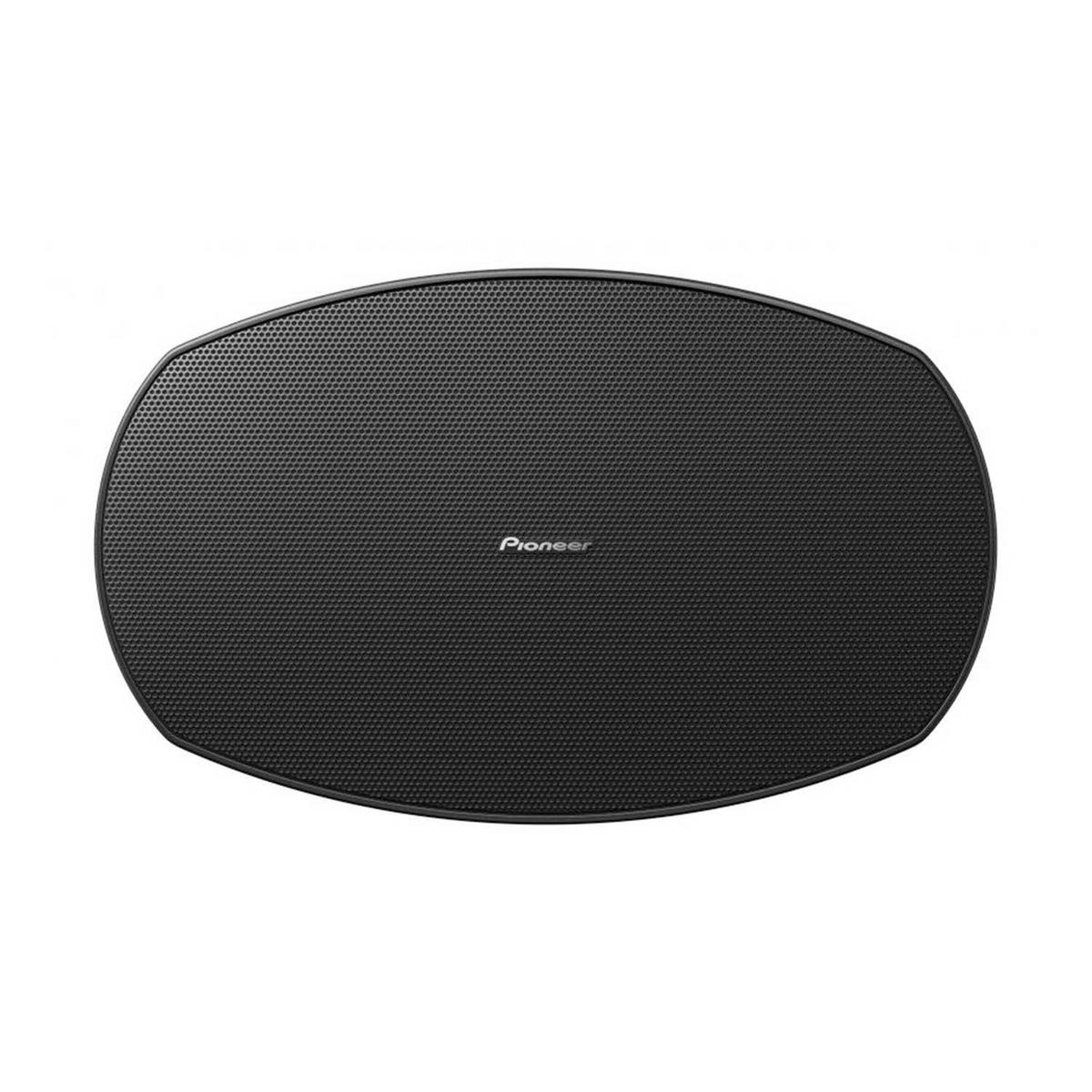

Built with a robust polypropylene (PP) enclosure and a punched aluminium grille, the CM-S58T offers both durability and longevity. Its original curved design enables harmonious integration with diverse interior designs, whether mounted on flat or curved surfaces. The included U-bracket, featuring rigid notches, allows precise directional adjustment, enhancing installation flexibility. The speaker also boasts an IP54 rating, denoting resistance to dust and splashing water, permitting use in covered outdoor areas provided it is not exposed to excessive moisture.
| Specification | Details |
|---|---|
| Loudspeaker Type | Two-way passive, reflex-loaded |
| Frequency Response (-10 dB) | 53 Hz – 20 kHz |
| Sensitivity (1W/1m) | 91 dB |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS/Program) | 90 W / 180 W |
| Transformer Taps | 70V: 60 W / 30 W / 15 W / 7.5 W 100V: 60 W / 30 W / 15 W |
| Dispersion | 100°H × 100°V |
| Maximum SPL | 117 dB (peak) |

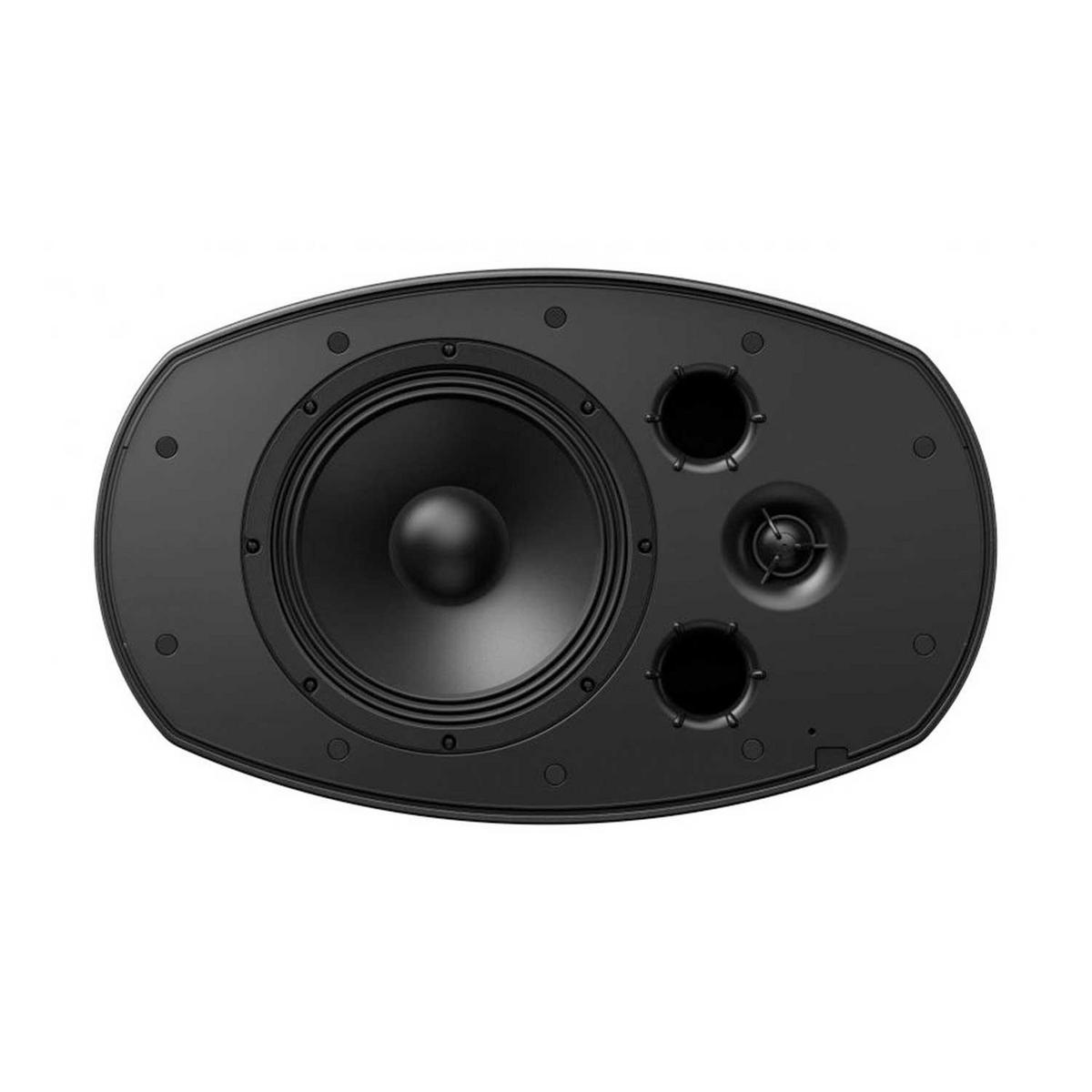

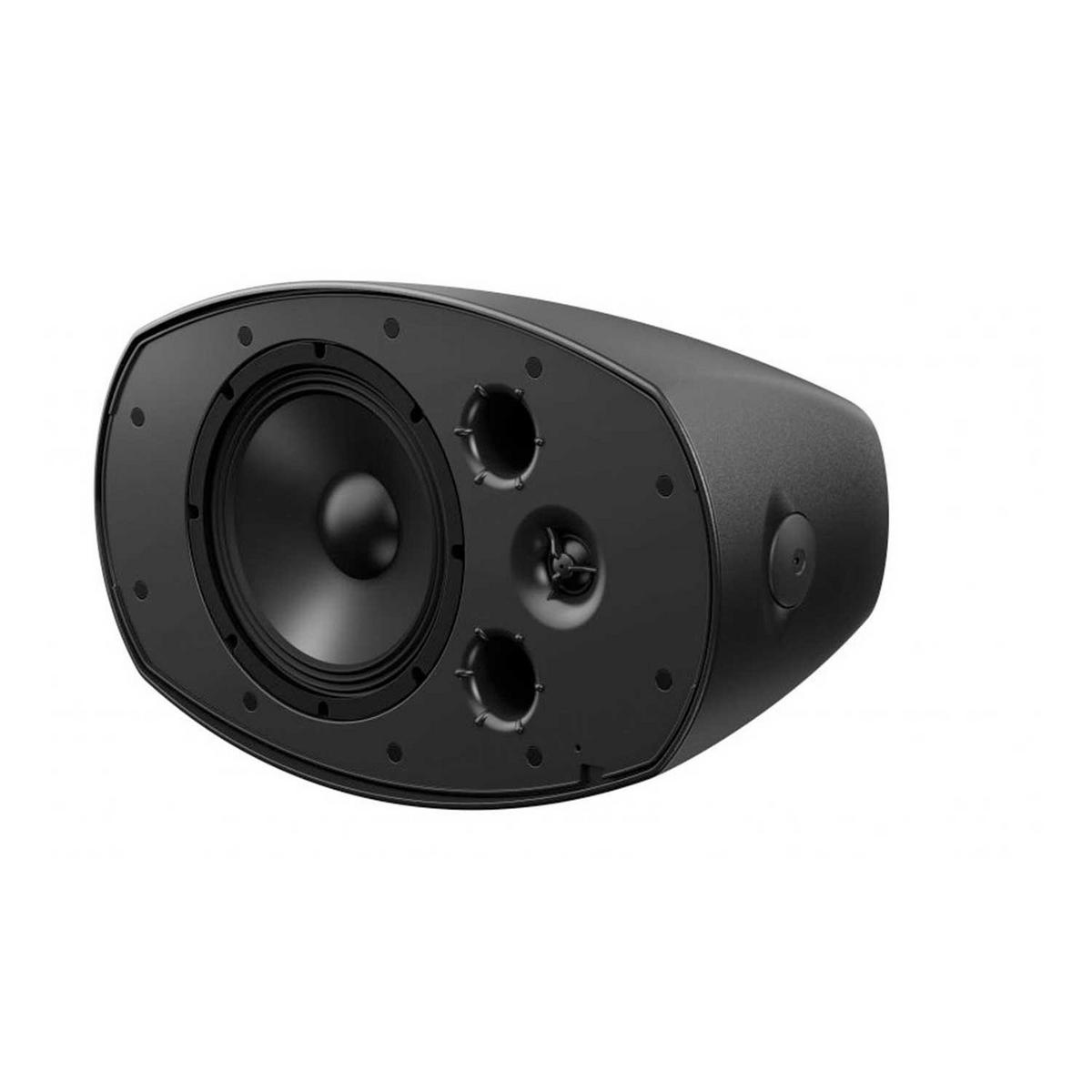

| Driver Configuration | LF: 8" (200 mm) cone HF: 1" (25 mm) silk dome tweeter |

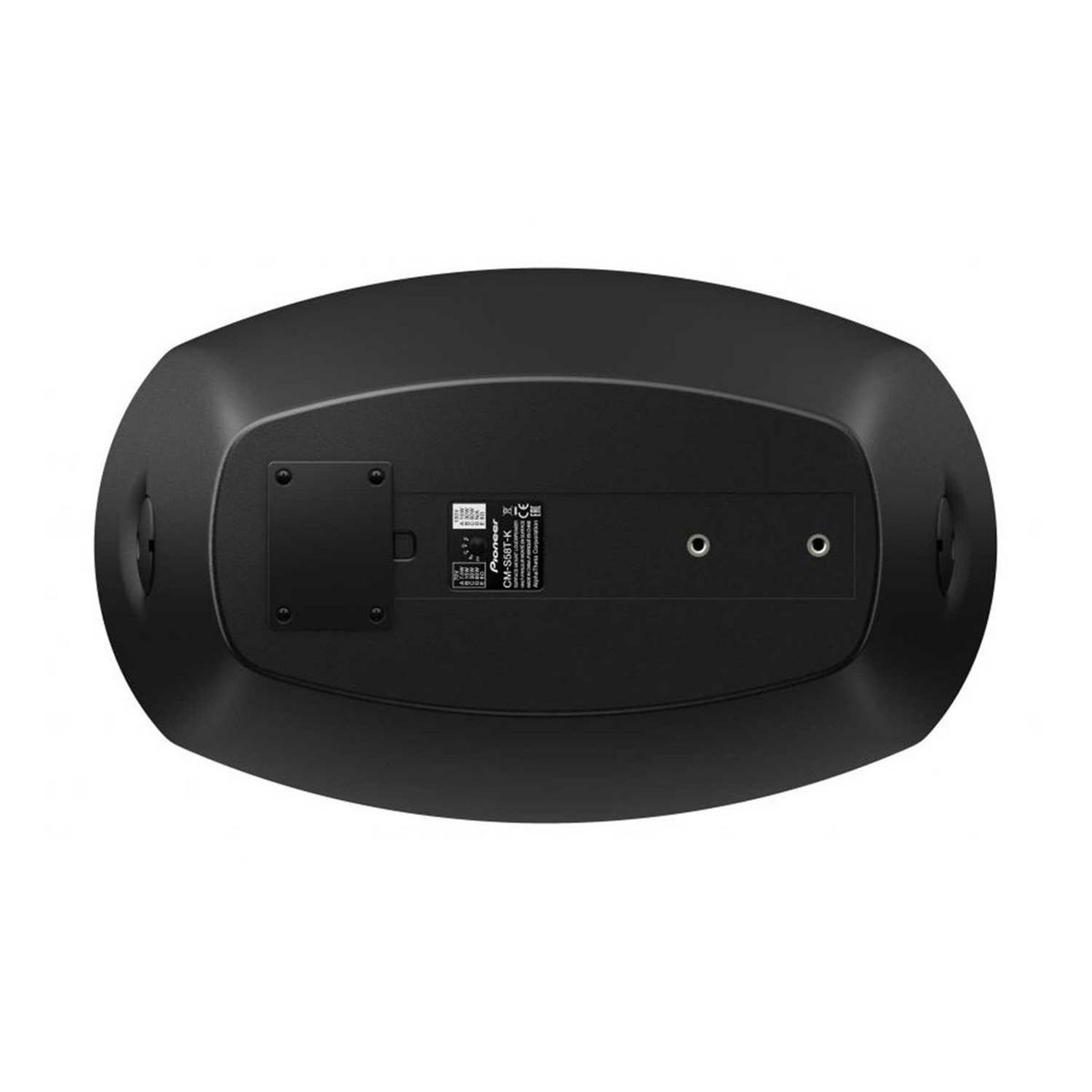

| Connectors | Euroblock (4 pin) × 1 (input: +/−, loop-through: +/−) |
| Dimensions (W × H × D) | 282.0 × 457.8 × 252.4 mm |
| Weight | 7.5 kg |
| Environmental Rating | IP54 |
| Available Colours | Black (CM-S58T-K), White (CM-S58T-W) |
The CM-S58T offers a balance of clarity, power, and versatility. Its wide dispersion and high sensitivity ensure even sound coverage and consistent volume levels throughout the installation area. It is particularly valued in projects requiring reliable, discreet loudspeakers that integrate well into architectural environments while delivering strong bass response and detailed highs.
Q: Can the CM-S58T be installed outdoors?
A: The CM-S58T carries an IP54 rating, making it appropriate for covered outdoor environments where it is not directly exposed to rain or severe weather.
Q: Is the speaker compatible with both 70V and 100V systems?
A: Yes, the built-in transformer supports both 70V and 100V configurations with multiple tap settings.
Q: What mounting options are included?

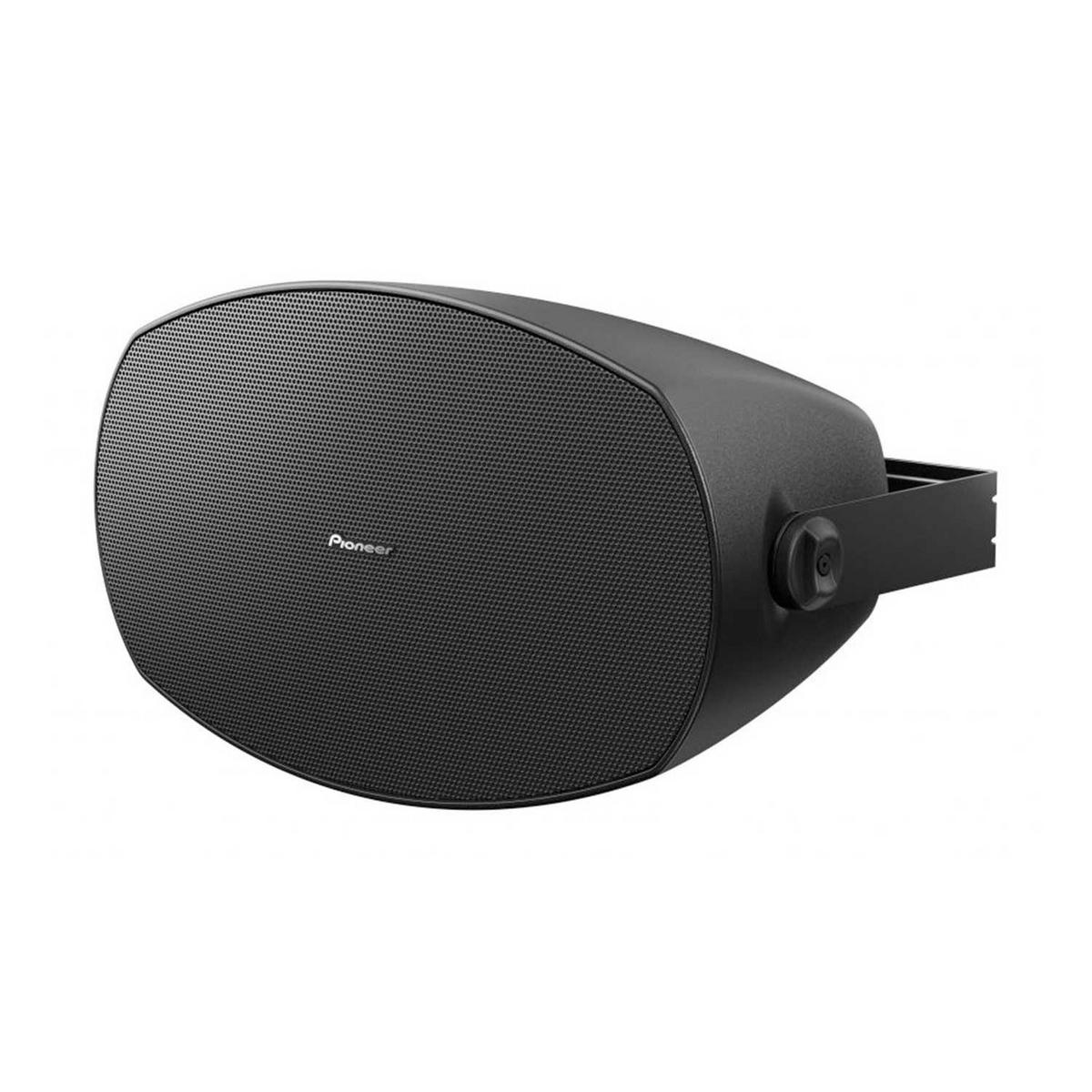

A: The speaker comes with a robust U-bracket that facilitates secure and adjustable installation on both flat and curved surfaces.
Q: Can I use this speaker in a low-impedance setup?
A: Absolutely. It supports 8-ohm operation when connected directly, bypassing the transformer taps.
Q: What makes the sound quality of this speaker unique?
A: The soft dome tweeter provides smooth, detailed high frequencies, while the Vortex Bass Accelerator ensures tight, powerful bass with minimal distortion.
