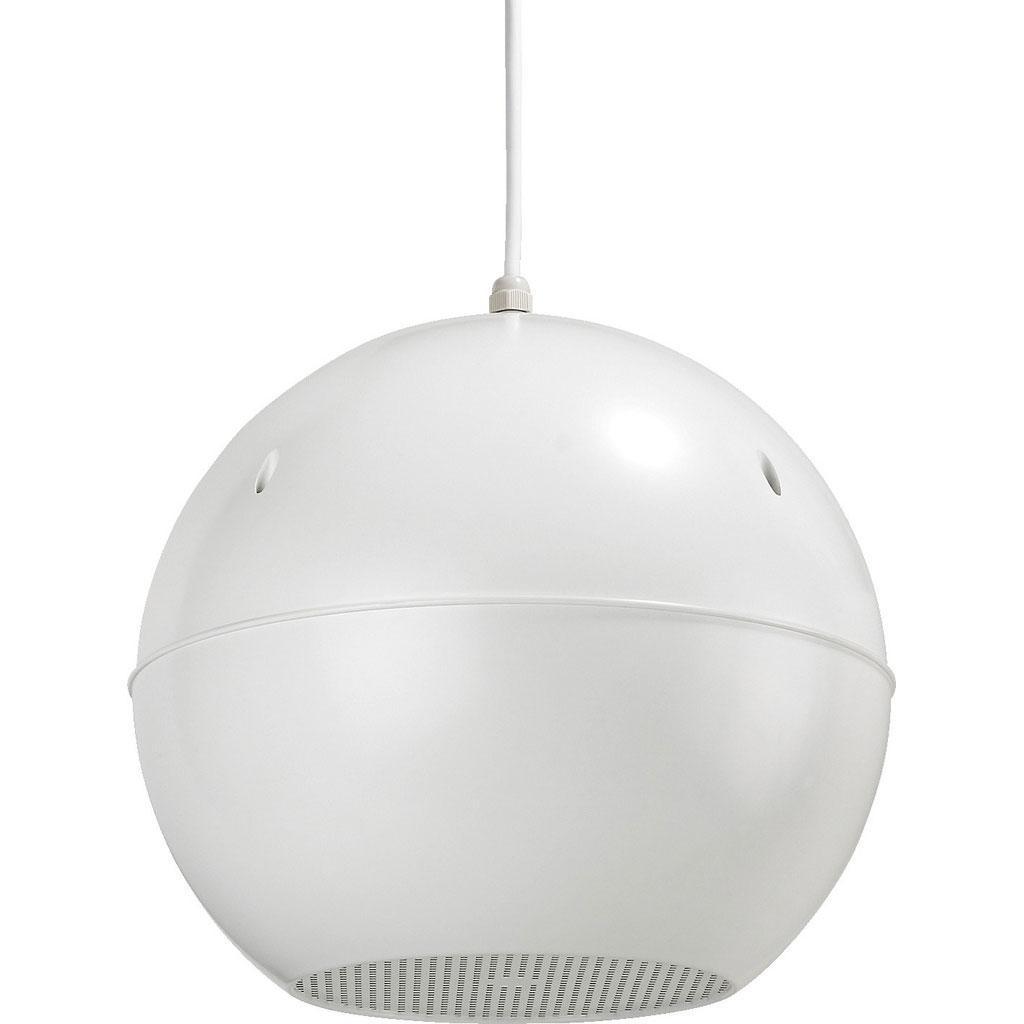

Monacor EDL‑420/WS Weatherproof PA Ball Speaker
The Monacor EDL‑420/WS is a robust and reliable weather‑proof speaker designed for both professional installers and discerning home‑audio enthusiasts seeking high‑quality public‑address sound in outdoor or indoor environments.
Overview
This passive, spherical PA speaker supports both 100 V line systems (20 W/10 W/5 W) and low‑impedance 8 Ω setups. Housed in a self‑extinguishing white ABS casing compliant with UL 94 V‑0, it is supplied with a 4.8 m cable and canopy for straightforward mounting. It is ideal for applications such as garden sound, poolside announcements, walkways, cafés, and public spaces.
Key Benefits
- Dual-mode operation: Operates on both 100 V line and 8 Ω systems--ideal for flexible installations.
- Weatherproof design: Reliable performance from −30 degreesC to +40 degreesC thanks to IP‑rated, UV‑resistant ABS housing.

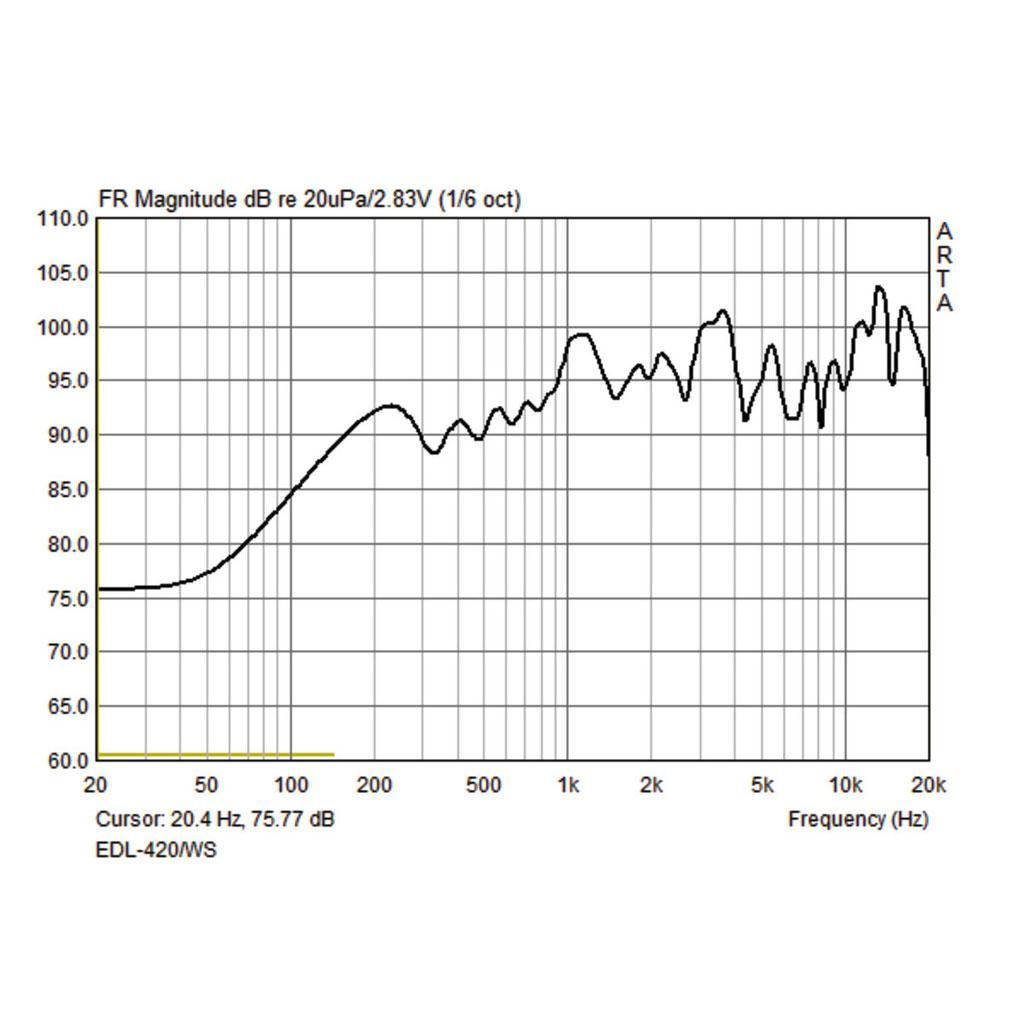

- Sound clarity: Full‑range 160 mm driver delivers broad 120 Hz-20 kHz coverage with a 100 degrees dispersion.
- Easy installation: Includes long cable and canopy; the spherical form ensures even sound projection.
- Safety certified: Meets fire‑safety standard UL 94 V‑0.
Design and Build Quality

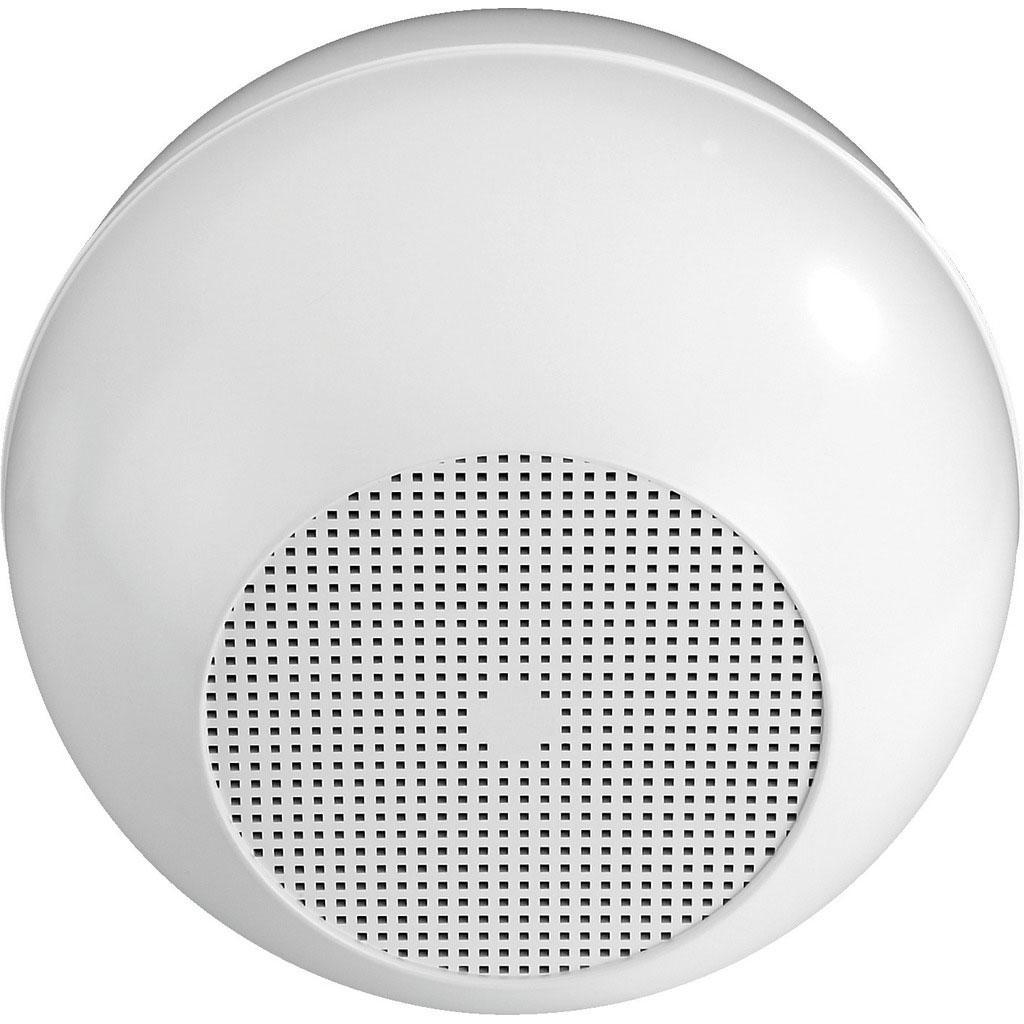

The sphere is precision‑moulded from durable ABS plastic with a UL 94 V‑0 rating, providing both flame resistance and resistance to UV exposure. Weighing just 2.3 kg and with a compact diameter of 265 mm, it remains unobtrusive and ideal for ceiling or wall mounting, aided by the included 4.8 m cable.
Key Technologies and Features
- 100 V transformer taps: Choose from 20 W, 10 W, or 5 W power levels to match required coverage and minimise cable runs.
- Full‑range driver: 160 mm cone delivers wide‑band frequency response from 120 Hz to 20 kHz.

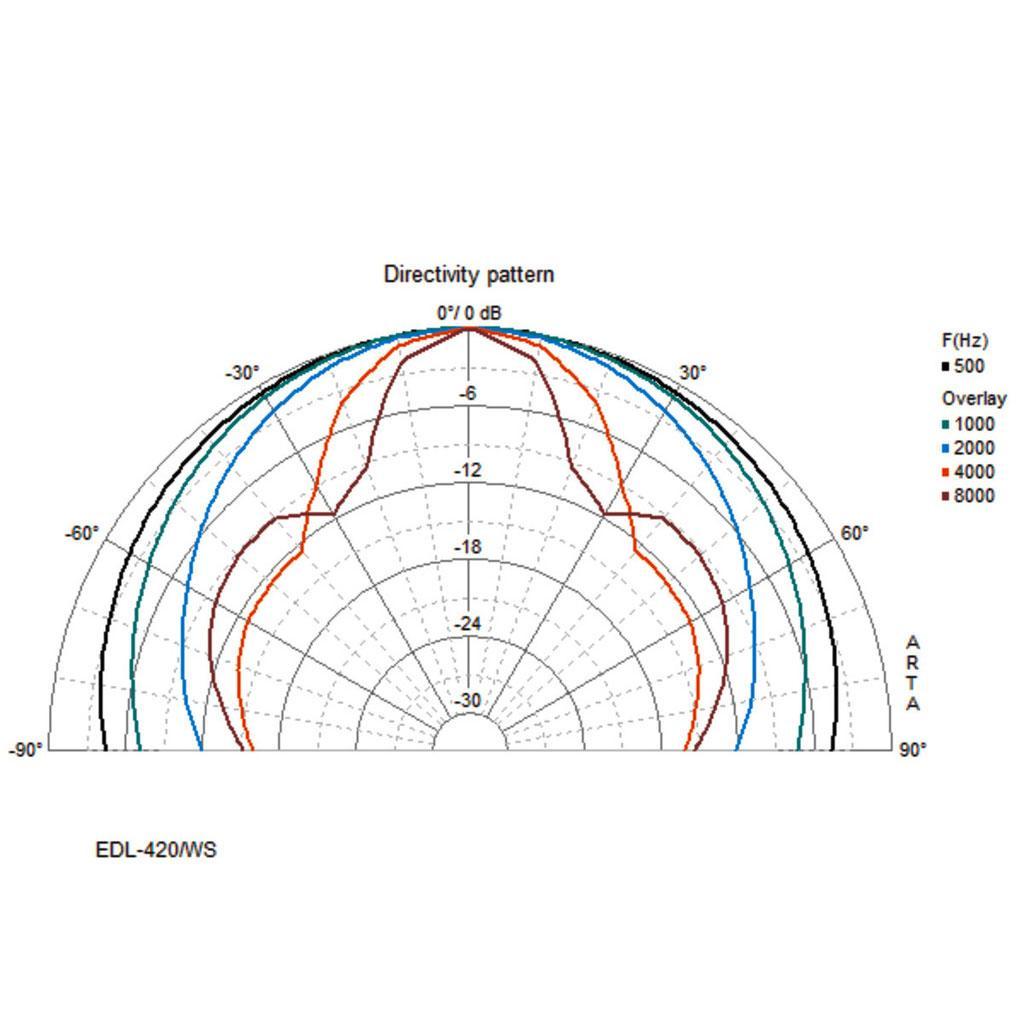

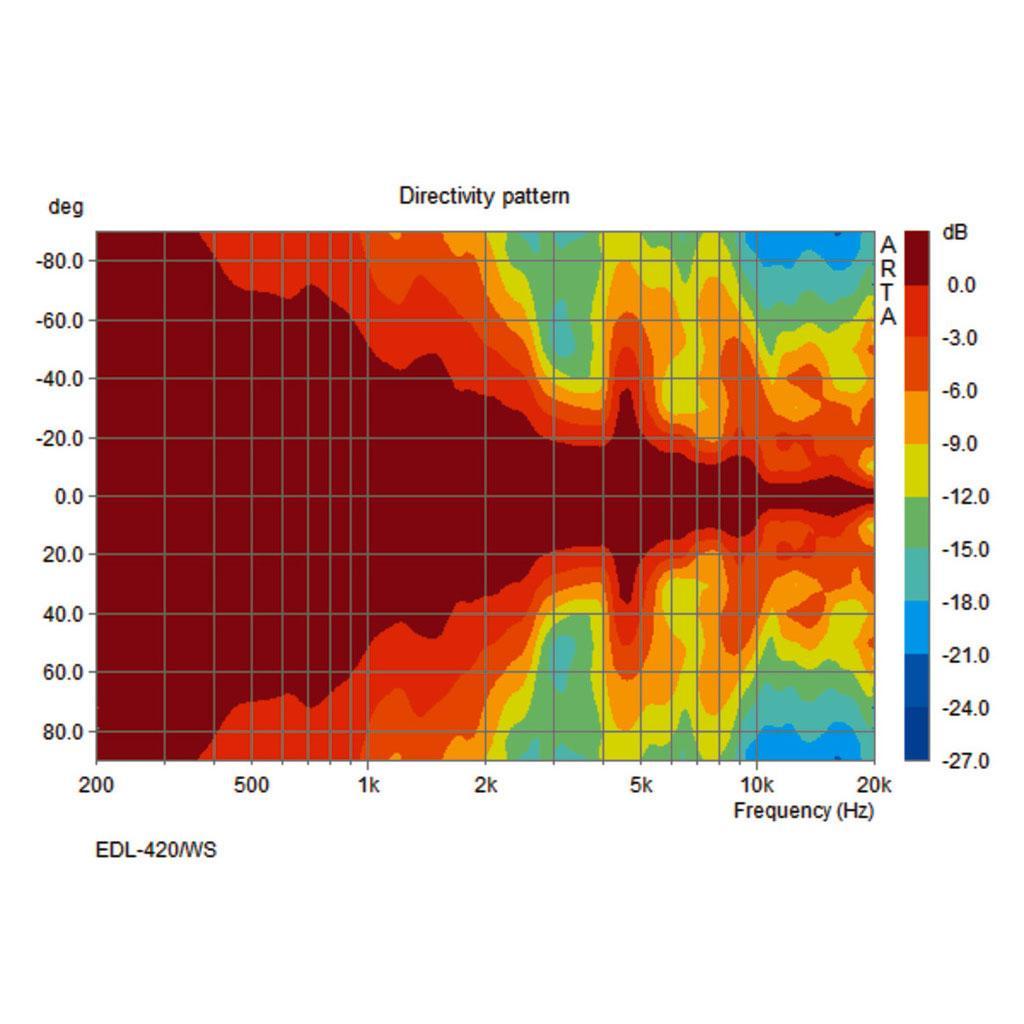

- Wide dispersion (100 degrees): Ensures broad, even sound distribution across a wide area.
- Weatherproof casing: Capable of operating down to −30 degreesC, the housing protects internal components against environmental exposure.
Specifications
| Power System | 100 V line (20/10/5 W) or 8 Ω passive (20 W RMS) |
| Impedance | 8 Ω |
| Frequency Range | 120 Hz-20 kHz |
| Driver | 160 mm (6 ″) full‑range cone |
| Sensitivity (1 W/1 m) | 94 dB |
| Dispersion Angle | 100 degrees hor. / ver. |
| Housing Material | ABS plastic, UL 94 V‑0 |
| Colour | White |
| Mounting | Incl. 4.8 m cable & canopy |
| Operating Temp. | −30 degreesC to +40 degreesC |
| Dimensions | Ø 265 mm |
| Weight | 2.3 kg |
Performance and User Experience
Users report the EDL‑420/WS delivers crisp speech clarity and dependable coverage with consistent volume across outdoor gardens, poolside areas, and public walkways. The multiple transformer taps ensure efficient use of 100 V systems, while the 8 Ω mode suits low‑power local amplification. Its light weight and spherical form make installation quick and seamless.
Q&A
- Is this speaker IP‑rated? While not explicitly IP‑coded, the ABS housing and canopy provide robust protection; performance is rated from −30 degreesC to +40 degreesC.
- Can it be used with standard home amplifiers? Yes--use the 8 Ω option for low‑impedance setups.
- Are spare cables available? Yes--the 4.8 m cable can be extended or replaced with similar outdoor‑grade cabling.
- Is ceiling mounting supported? Absolutely--the round design and canopy make it ideal for ceiling mounting.
- How do I clean it? A damp cloth is sufficient; avoid solvents to protect the ABS finish.
