The Monacor ESP‑360/WS is a passive wall‑mounted speaker designed for 100 V public address (PA) systems. It features a full‑range dual‑cone driver and multiple power tap options for flexible audio distribution.

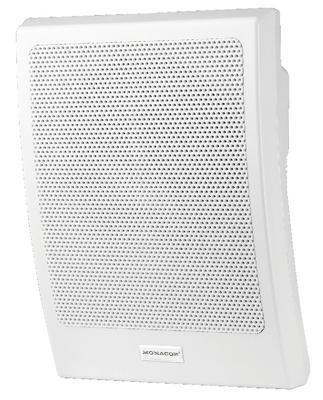

Housed in a robust white plastic enclosure, the curved cabinet ensures optimal sound dispersion. The compact dimensions (185 × 255 × 123 mm) and lightweight construction (~1.1 kg) facilitate seamless wall mounting and a low visual profile.
| Attribute | Details |
|---|---|
| Transmission Technology | 100 V via transformer with 2 power taps (6 W / 3 W RMS) |
| Frequency Range | 130 - 15,000 Hz |
| Driver | 1 × 13 cm (5") full‑range dual‑cone speaker |
| Radiation Angle | Horizontal: 120 degrees Vertical: 120 degrees |
| Cabinet Material | Plastic |
| Colour | White |
| Dimensions (W × H × D) | 185 × 255 × 123 mm |
| Weight | Approx. 1.1 kg |
| Operating Temperature | 0 degreesC to 40 degreesC |
| Connection | Rear-mounted power taps |
Offering flexible power options (6 W or 3 W), the ESP‑360/WS integrates seamlessly into diverse PA setups while protecting against amplifier overload. Its 120 degrees dispersion delivers wide sound coverage, ideal for corridors, classrooms, or retail environments. Lightweight and versatile, installation is simple and unobtrusive--though care should be taken during cleaning (use only a dry cloth). This model is intended for indoor use only.
