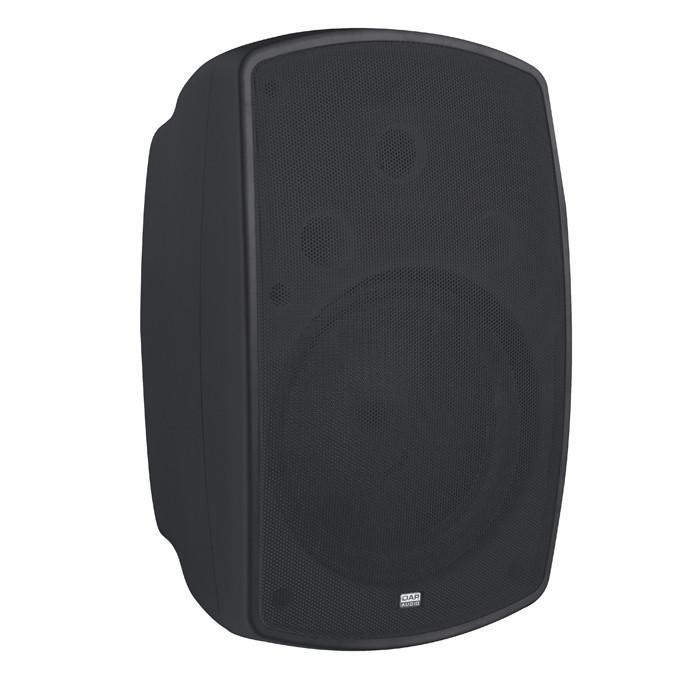

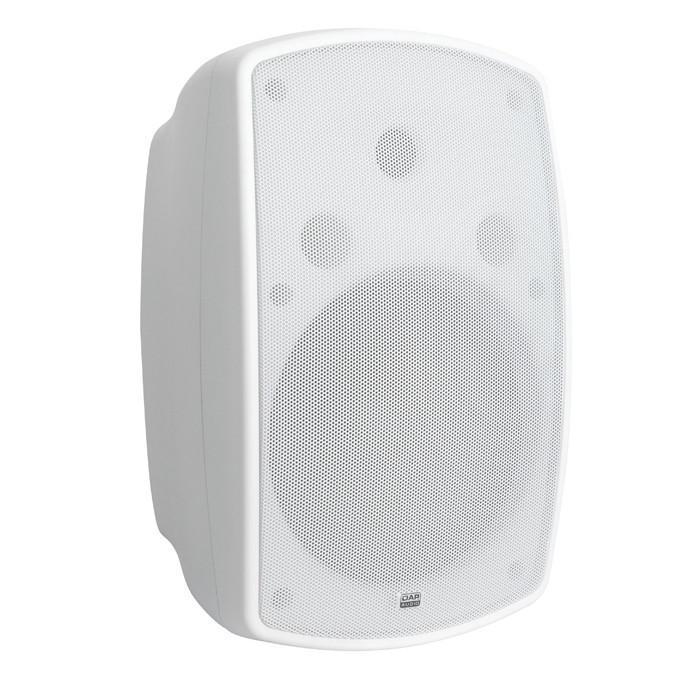

The DAP EVO 8T is a set of two 8-inch passive 70/100V installation speakers designed for professional audio installations in environments such as retail spaces, restaurants, corporate offices, and educational institutions. These speakers deliver excellent sound quality, which makes them suitable for both background music and public address applications. They are capable of reaching up to 115 dB at a distance of one metre.
Constructed with durable ABS plastic housing and a steel grille, the EVO 8T ensures longevity and reliability in various installation settings. The speakers are designed with a 110 degrees x 90 degrees dispersion pattern, providing wide and consistent coverage. Each unit comes with a 60 degrees adjustable mounting bracket, enabling flexible yet secure installation on walls or ceilings. With an IP54 rating, these speakers are protected against dust and splashing water, making them suitable for indoor use and sheltered outdoor areas.
| Specification | Details |
|---|---|
| Speaker System | 2-way, full-range 100V |
| Impedance | 8 Ω |
| Continuous Power | 80W |
| Peak Power | 160W |
| Power Taps | 6.25W, 12.5W, 25W, 50W |
| Transformer | 70V/100V |
| Woofer | 8" |
| Tweeter | 1" dome tweeter |
| Dispersion | 110 degrees x 90 degrees |
| Frequency Response (-3dB) | 48 Hz - 20 kHz |
| Sensitivity (Full Space) | 90 dB/W/m |
| Housing Material | ABS plastic |
| Grille Material | Steel |

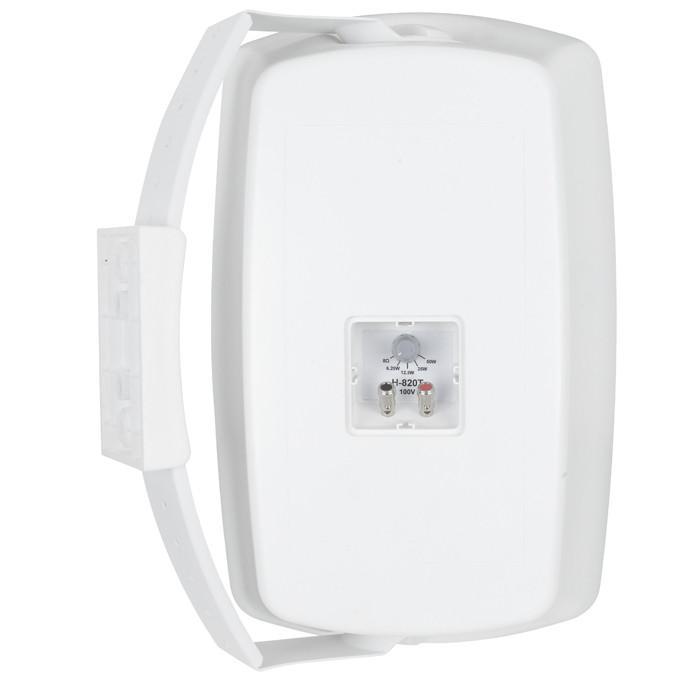

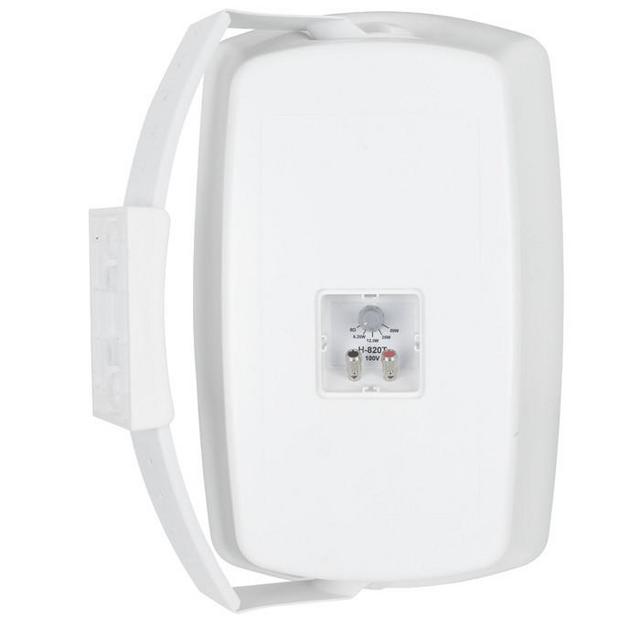

| Connections | Terminals |
| IP Rating | IP54 |
| Accessories | 60 degrees adjustable mounting bracket |
The DAP EVO 8T offers excellent audio clarity and delivers consistent sound coverage thanks to its wide dispersion angle. Its modular design allows integration into multi-zone systems with ease, while the simple terminal connections and adjustable brackets make installation quick and reliable. The system is ideal for commercial and public applications where sound quality, reliability, and aesthetically pleasing designs are prioritised.
Q: Are the DAP EVO 8T speakers suitable for outdoor use?
A: They are IP54 rated, which protects against limited dust ingress and splashing water, making them suitable for covered outdoor installations.
Q: Can these speakers be used in a low-impedance setup?
A: No, the EVO 8T is designed for 70/100V line systems. For low-impedance applications, consider standard 8 Ω passive models.
Q: Do the speakers come with mounting hardware?
A: Yes, each unit includes a 60 degrees adjustable wall bracket for easy installation and directional alignment.
Q: What type of amplifier should I use with these speakers?
A: Use a 70V or 100V line amplifier capable of matching the total speaker wattage and transformer tap settings.
Q: Are these suitable for background music in retail environments?
A: Absolutely. Their full-range output and clear audio reproduction make them ideal for background music in shops, cafés, and other public spaces.
