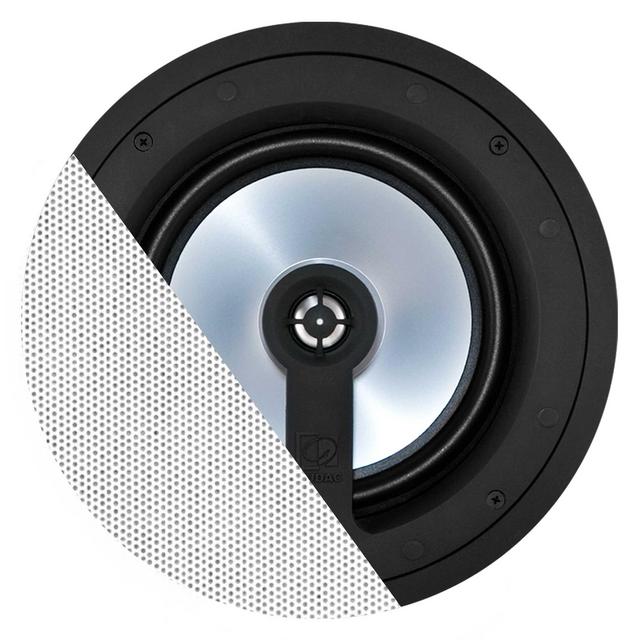

The AUDAC CELO8 is a premium 2-way coaxial ceiling speaker engineered for discerning audio installations in environments such as hotels, corporate spaces, residential settings, and upscale retail venues. As the largest model in AUDAC's CELO series, it delivers exceptional sound quality while maintaining a discreet presence, thanks to its ultra-slim design.

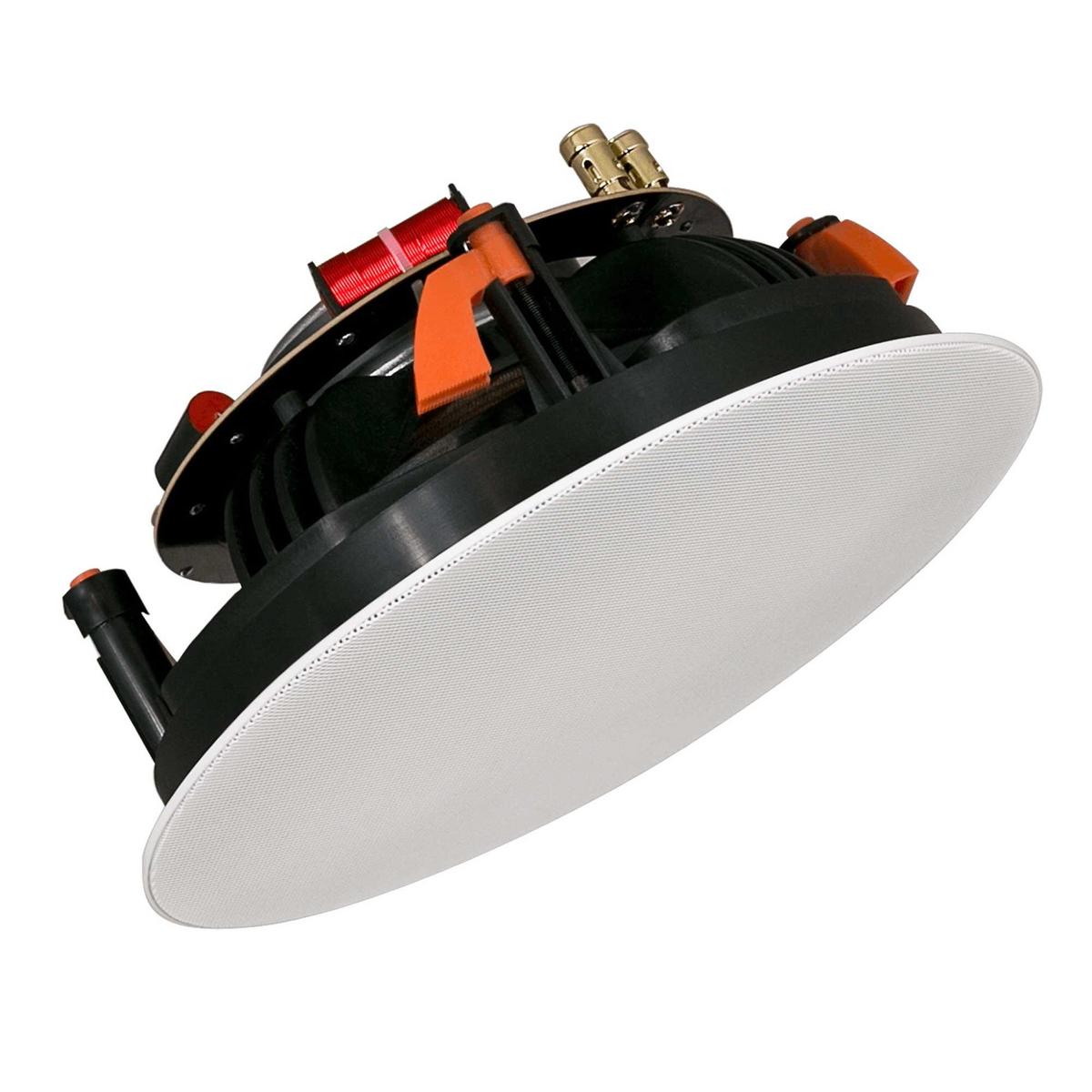

Constructed with a robust ABS housing, the CELO8 features a sleek black frame complemented by a thin-edged white grille (RAL9003), which protrudes only 3.2 mm from the ceiling surface, ensuring seamless integration into any interior. The grille is magnetically secured using powerful neodymium magnets, facilitating easy installation and removal without compromising stability. The speaker's quick-fixing mechanism, tightened by four screws, ensures secure mounting.
| Specification | Details |
|---|---|
| Speaker Type | 2-way coaxial |
| Peak Power Handling | 320 W |
| Program Power Handling | 160 W |
| Continuous Power (AES) | 80 W |
| Impedance | 8 Ω |
| Sensitivity (1W/1m) | 89 dB |
| Max Sound Pressure (1m) | 108 dB |
| Frequency Response (±3 dB) | 46 Hz – 20 kHz |
| Frequency Range (-10 dB) | 32 Hz – 20 kHz |
| Crossover Type | Passive built-in |
| Crossover Frequency | 3 kHz |
| Dispersion | Conical 135° |

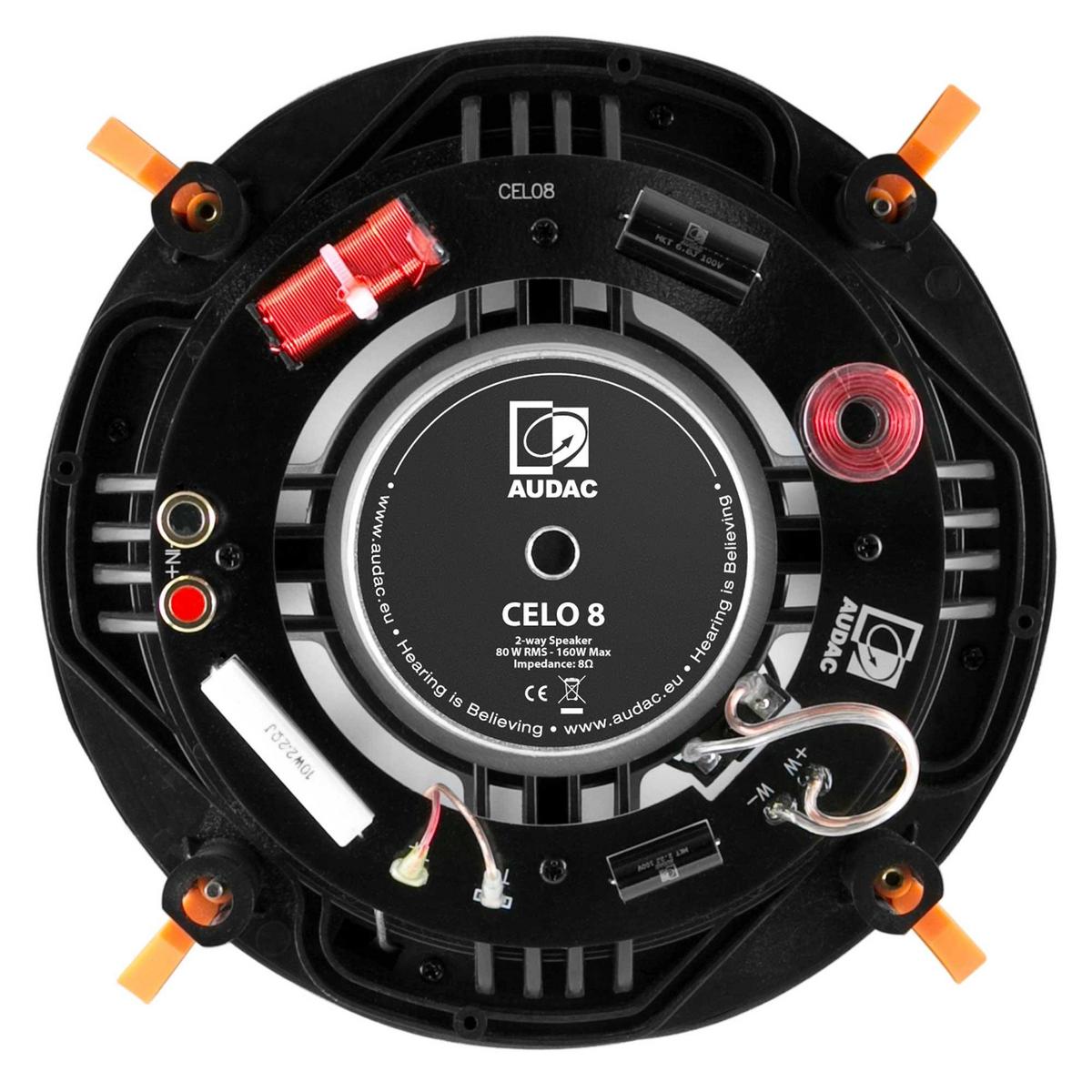

| Connectors | Gold-Con™ spring clamps |
| Drivers | HF: 1" Aluminium membrane LF: 8" Aluminium membrane |
| Dimensions (Ø x D) | 270 x 118 mm |
| Weight | 2.25 kg |
| Cut-out Diameter | 245 mm (Ø) |
| Built-in Depth | 115 mm |
| Mounting & Handling | 4-screw quick-fixing mechanism |
| Operating Temperature | -20°C to 60°C |
| Colours | Black frame & white grille |
| Accessories Included | GLC08/W - White grille (RAL9003), Cut-out template |
| Optional Accessories | WTR24 - 24-watt 100-volt line transformer, GLC08/B - Black grille (RAL9005), GLC08/P - Paintable grille |
The CELO8 delivers a warm and true-to-nature sound, making it ideal for background music and speech reinforcement. Its wide frequency response ensures clarity and depth across various audio content. The speaker's design allows it to integrate seamlessly into any environment, while its robust construction guarantees longevity and consistent performance.
Q: Is the CELO8 suitable for both commercial and residential installations?
A: Yes, the CELO8 is designed for versatility, making it ideal for various settings including hotels, offices, homes, and retail spaces.
Q: Can the grille be painted to match the ceiling colour?
A: The grille is paintable, allowing it to integrate seamlessly with the ceiling colour.
Q: What is the recommended back volume for optimal performance?
A: While the CELO8 is designed to perform well in open ceilings, a back volume of approximately 15 litres is recommended for enhanced low-frequency response.
Q: Does the CELO8 support 100-volt line systems?
A: Yes, with the optional WTR24 24-watt 100-volt line transformer, the CELO8 can be integrated into 100-volt line public address systems.
Q: How is the speaker installed and secured?
A: The CELO8 uses a four-screw quick-fixing mechanism and powerful neodymium magnets for secure mounting and effortless grille attachment or removal.
Q: Is the CELO8 weather-resistant for outdoor use?
A: No, the CELO8 is intended for indoor installations only and should be protected from moisture and extreme weather conditions.
