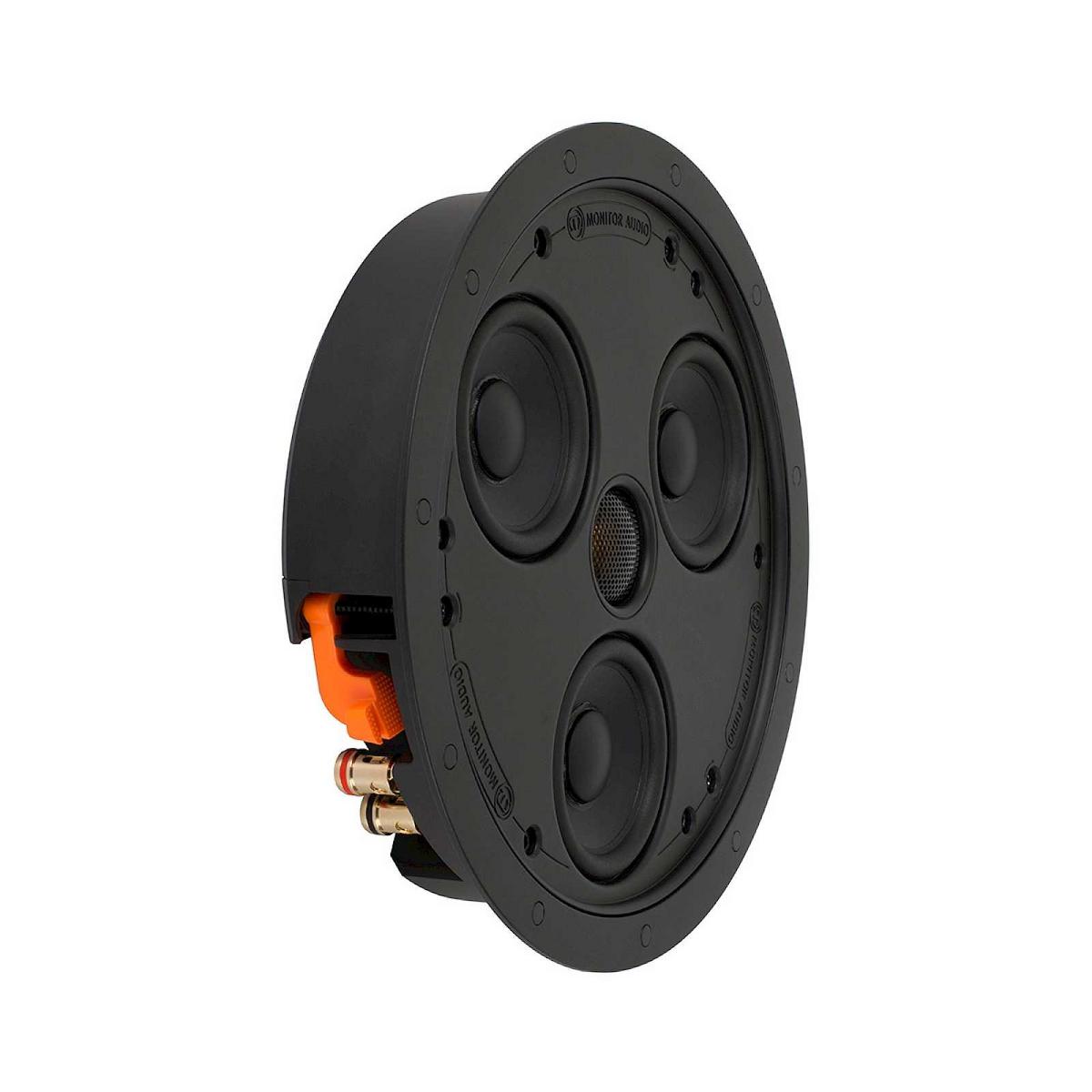

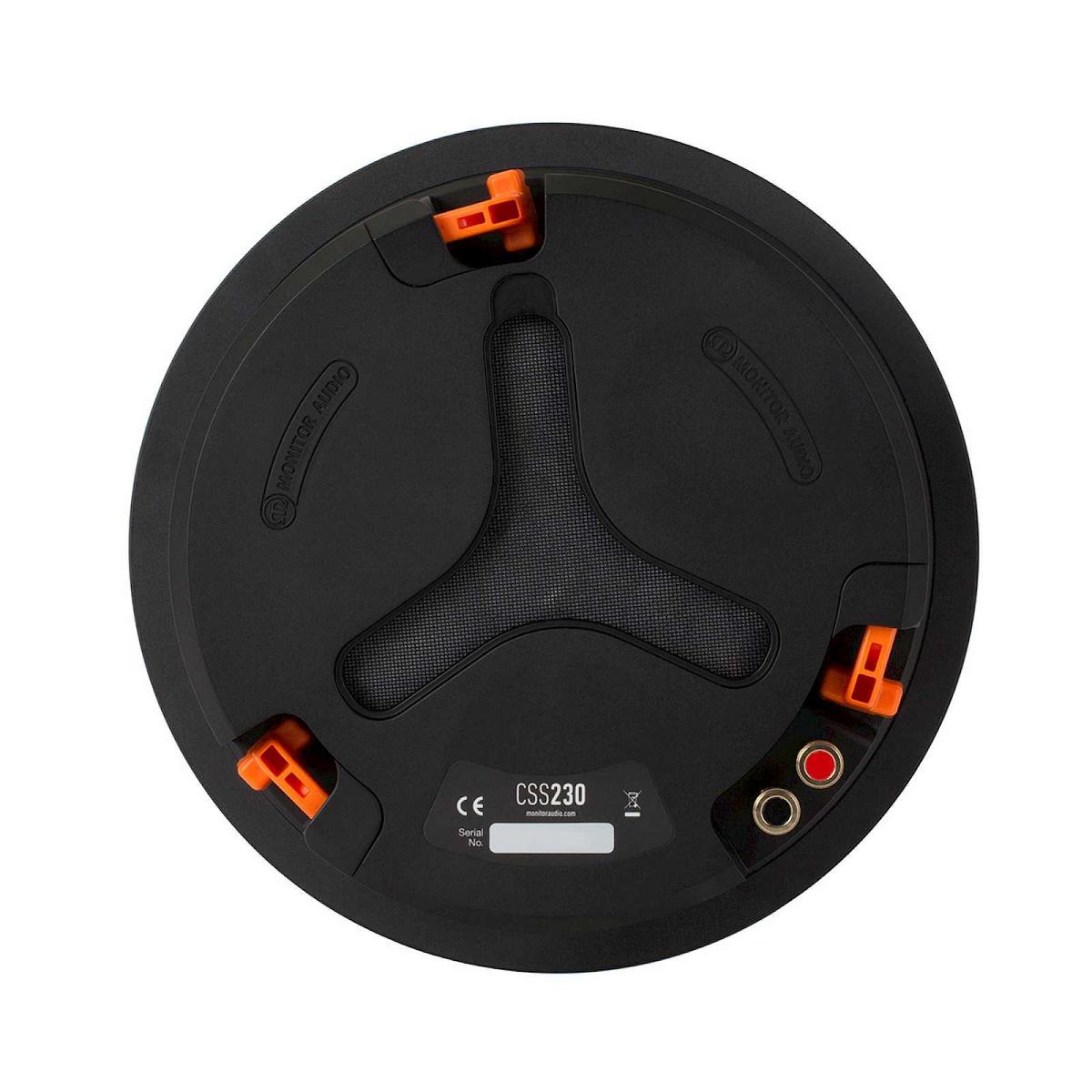

The Monitor Audio Super Slim CSS230 is an innovative ceiling speaker designed for installations where space is restricted but high-quality sound is required. With a mounting depth of just 50mm, this compact yet high-performance speaker delivers Monitor Audio's signature hi-fi sound in spaces where traditional speakers cannot fit. Its hybrid back-box design, advanced driver configuration, and premium build make it an ideal choice for both home and commercial applications.

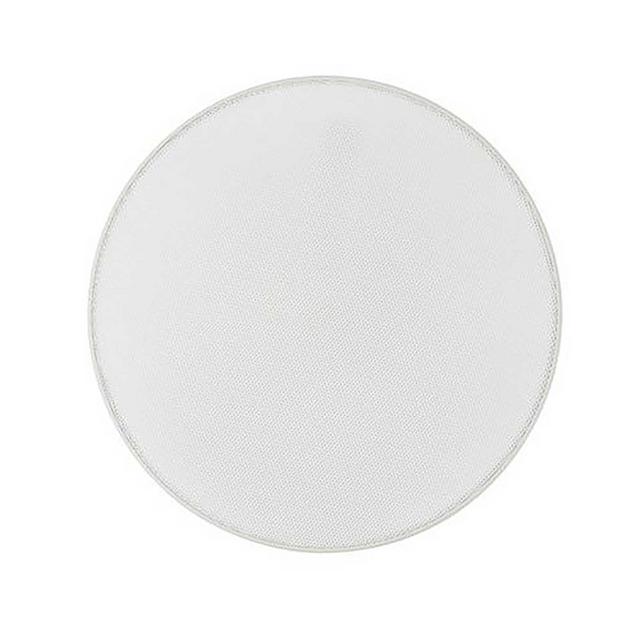

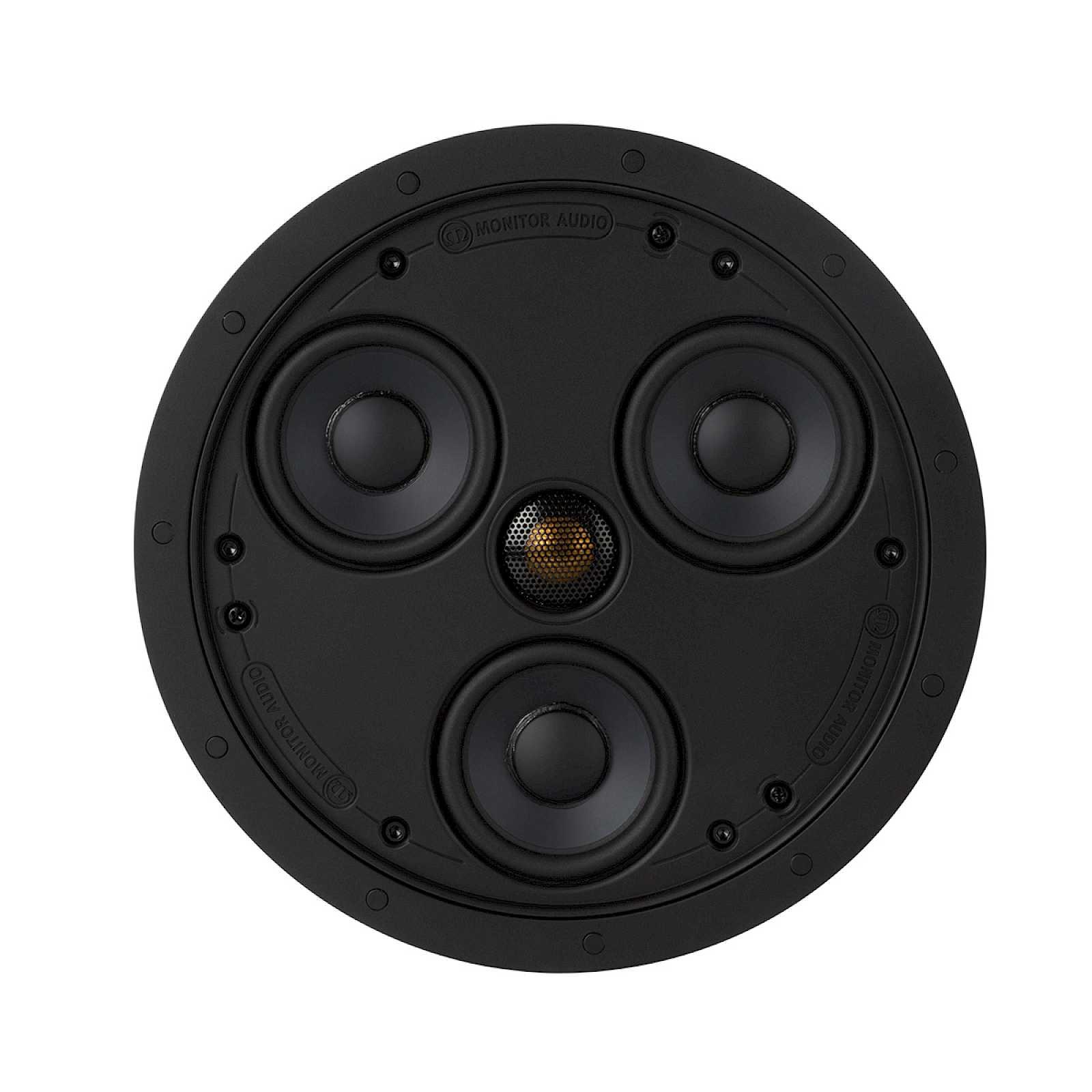

The CSS230 features a smart hybrid design, allowing it to be used with either a sealed "Controlled Performance" back-box for improved sound isolation or as an open-back system for extended bass response. It utilises three 3" C-CAM bass/mid drivers, which are arranged radially around a 19mm C-CAM Gold Dome tweeter. This configuration ensures wide dispersion and excellent clarity. A magnetically attached trim-less grille, available in round or square options, provides an unobtrusive appearance that can be painted to match décor. Built with ABS housing and a painted steel grille, it is durable, reliable, and UL94 rated.
| Specification | Details |
|---|---|
| Frequency Response (-6 dB) | 100 Hz - 30 kHz (Sealed 'CP'), 85 Hz - 30 kHz (Open Back) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | 103.8 dBA |
| Power Handling (RMS) | 40W Full Range (60W with crossover @ 100Hz, 12 dB/Octave) |
| Recommended Amplifier | 10 - 60W |
| Drivers | 3 x 3" C-CAM bass/mid drivers, 1 x 19mm C-CAM Gold Dome tweeter |
| Crossover Recommendation | 100Hz (12 dB/Octave minimum, 24 dB/Octave optimum) |
| Connections | Gold Plated Sprung Terminals (Up to 4mm² Wire) |
| Overall Diameter (Round Grille) | 250mm |
| Optional Square Grille | 249 x 249mm |
| Cut-Out Diameter | 211mm |
| Mounting Depth | 50mm |
| Fixing Type | 3-Position Tri-Grip Dog Leg Fixings |
| Construction Material | ABS (UL94 Rated, RoHS2 Compliant), Painted Steel Grille |
| Weight | 2.88kg |
| Pre-Construction Bracket | CB6 (Purple) |
| Sold As | Single Unit |
The CSS230 delivers a remarkable audio experience given its ultra-slim profile, offering Monitor Audio's signature clarity and detail even in space-limited installations. The radial driver array ensures excellent sound dispersion across large areas. With its discreet grille options, quick-install Tri-Grip fixings, and robust build quality, the CSS230 is a reliable solution for both residential and commercial applications where performance and aesthetics matter.
Q: How deep is the CSS230?
A: It requires only 50mm mounting depth, making it perfect for shallow ceilings and restricted spaces.
Q: What grille options are available?
A: It comes with a round trim-less grille, with an optional square version available. Both are paintable to blend with décor.
Q: What is unique about the driver layout?
A: The CSS230 uses three 3" C-CAM bass/mid drivers arranged radially around a central 19mm Gold Dome tweeter for wide sound dispersion.
Q: Can it be used with or without a back-box?
A: Yes, it supports both sealed "Controlled Performance" and open-back installations for flexible performance.
Q: Is it sold as a pair?
A: No, the CSS230 is sold as a single unit.
