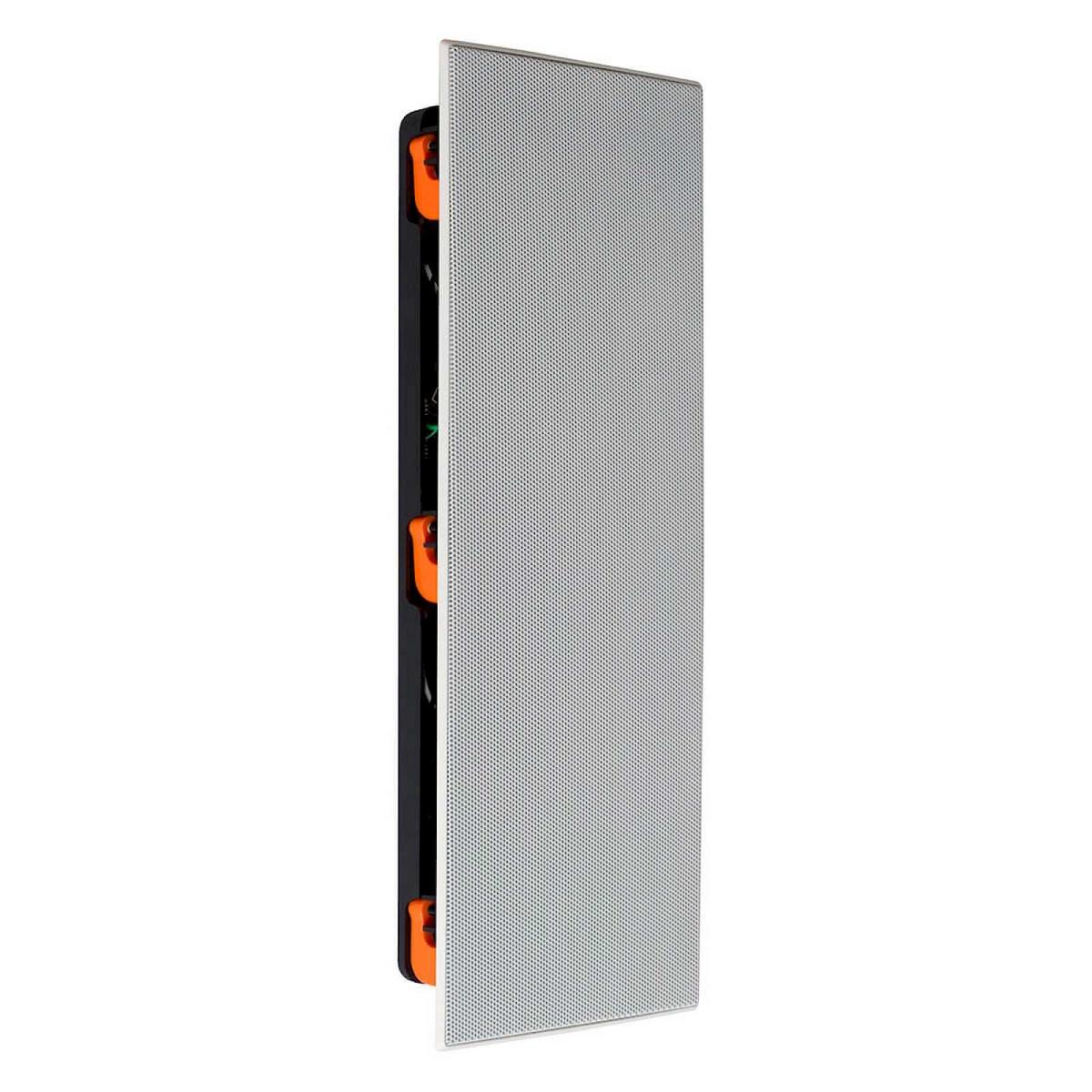

The Monitor Audio Super Slim WSS230 is a high-performance in-wall speaker designed for versatility, aesthetics, and outstanding sound quality. With a mounting depth of only 50mm, it is engineered to fit within 2" stud walls, making it ideal for home cinema applications as a centre, left, or right speaker in an LCR configuration.

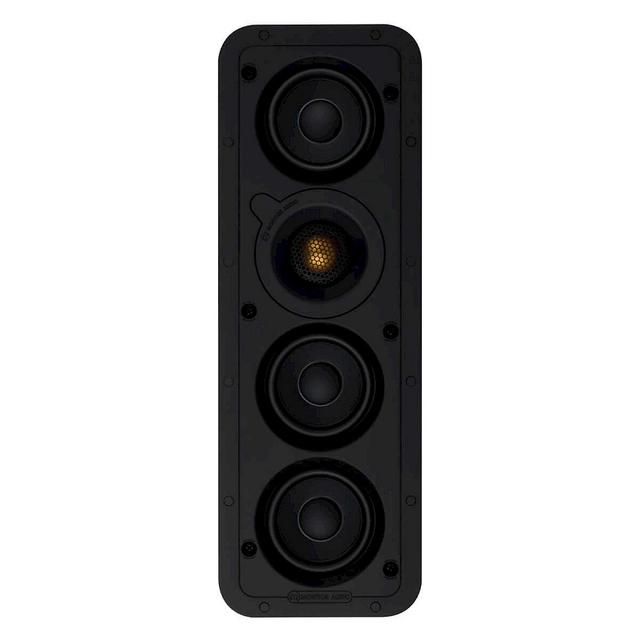

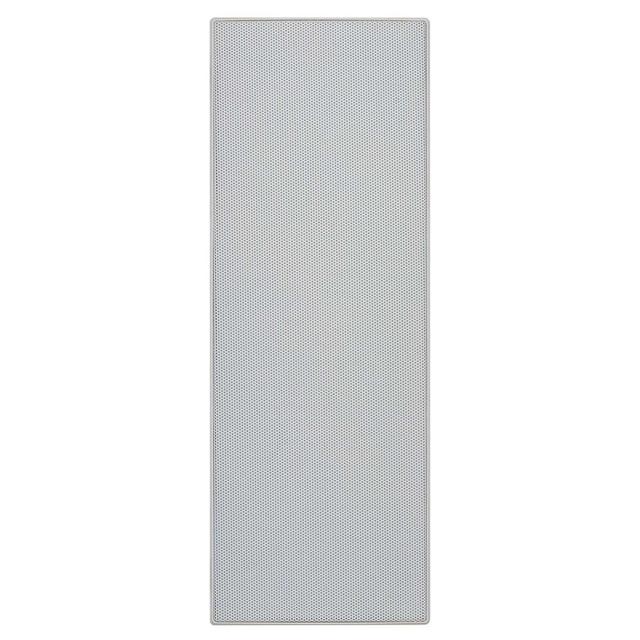

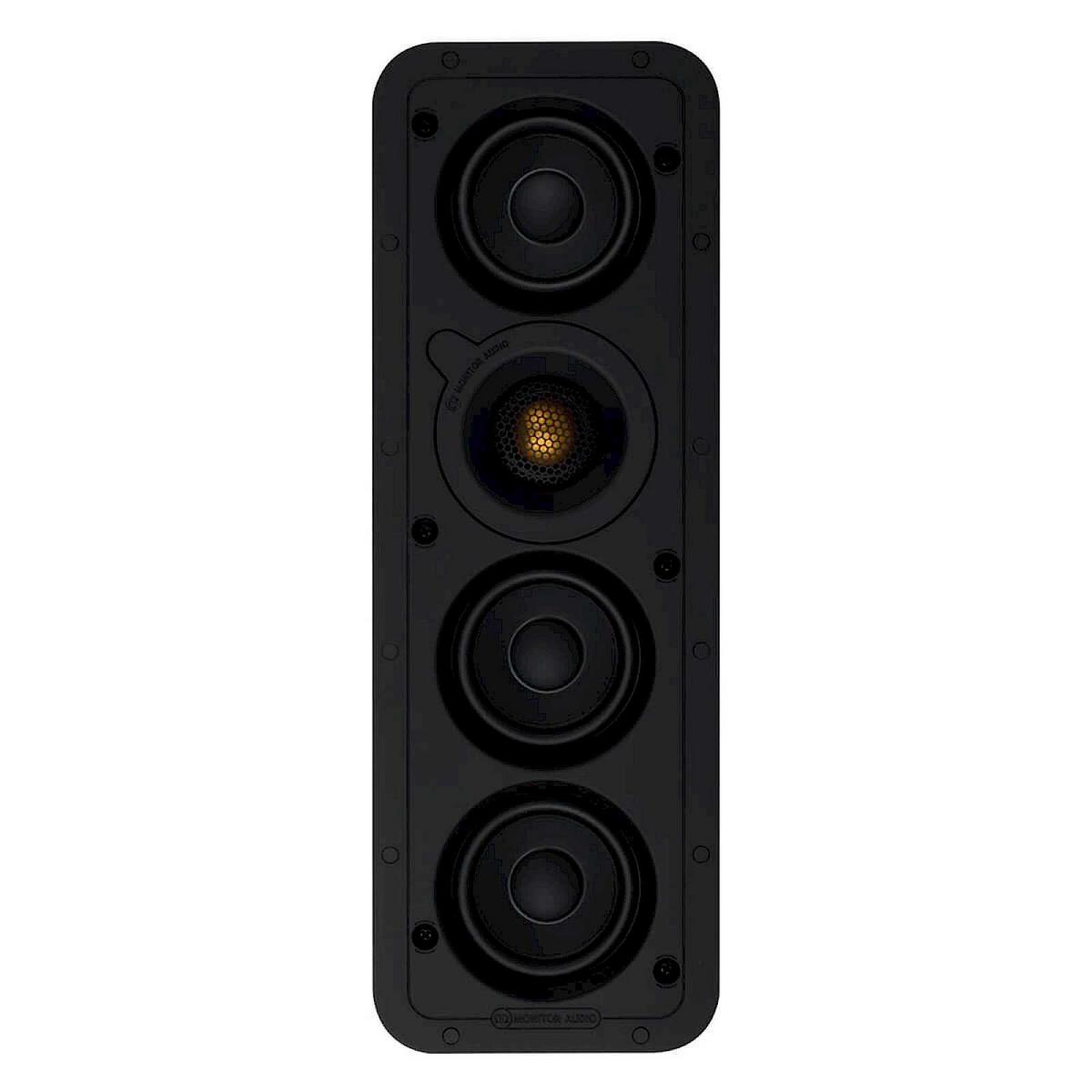

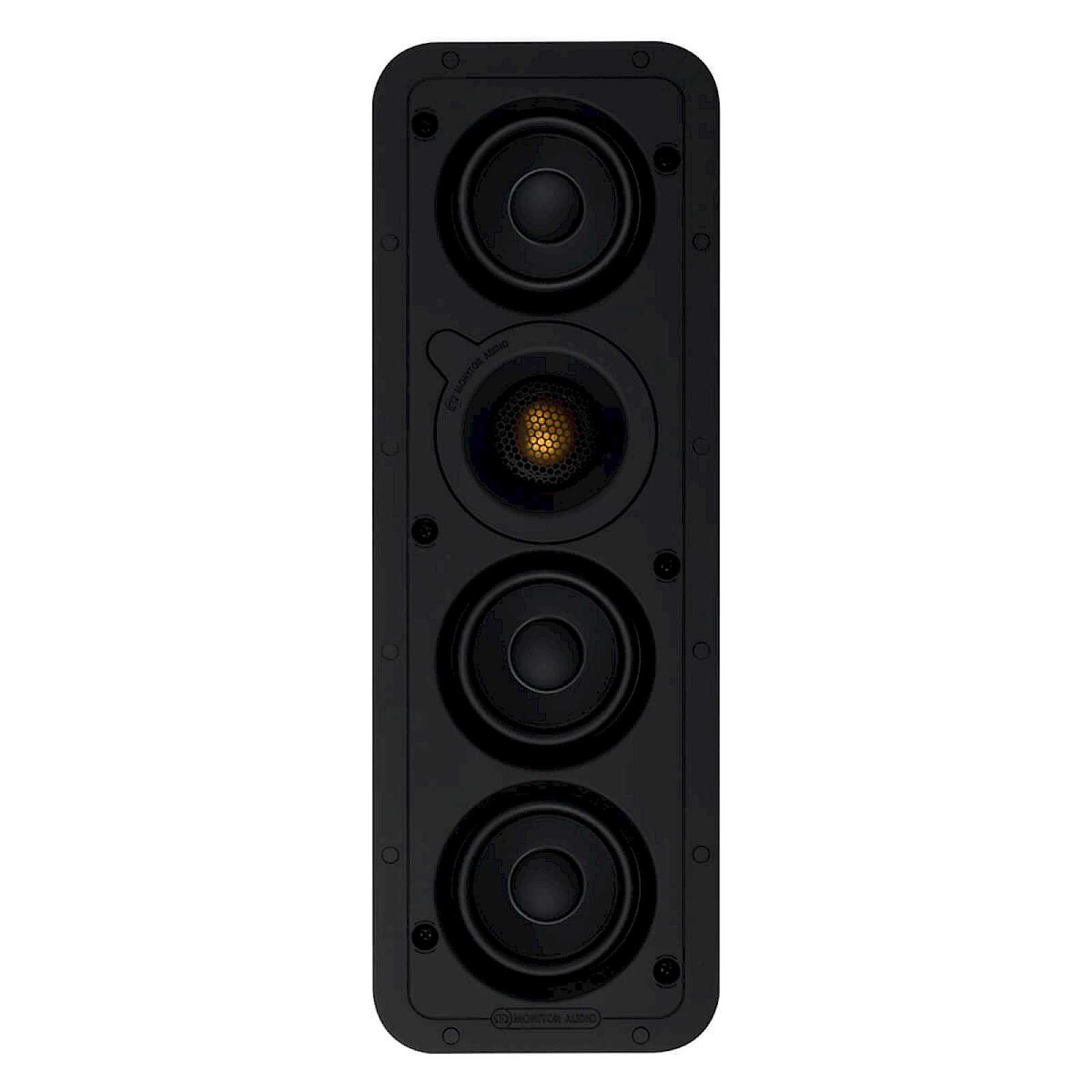

Compact and stylish, the WSS230 features a slender profile of only 385 x 140mm, allowing it to fit easily between standard 14" stud bays. Its three 3" C-CAM bass/mid drivers and 25mm C-CAM Gold Dome tweeter provide detailed, dynamic audio reproduction. A magnetically attached trim-less grille ensures a discreet appearance that can be painted to match room décor. The robust Tri-Grip dog-leg fixings guarantee secure installation, while premium crossover components enhance sound quality.
| Specification | Details |
|---|---|
| Frequency Response (-6 dB) | 75 Hz - 30 kHz |
| Sensitivity (1W@1M) | 87 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 105.6 dBA |
| Power Handling (RMS) | 60W Full Range (100W with crossover @ 100Hz, 12 dB/Octave) |
| Recommended Amplifier | 10 - 100W |
| Drivers | 3 x 3" C-CAM cone bass/mid drivers, 1 x 25mm C-CAM Gold Dome tweeter |
| Crossover Recommendation | 100Hz (12 dB/Octave minimum, 24 dB/Octave optimum) |
| Overall Dimensions | 385 x 140.5mm |
| Depth (With Grille) | 54.25mm |
| Cut-Out Dimensions | 346 x 101mm |
| Mounting Depth | 50mm |
| Connections | Gold-plated sprung terminals (up to 4mm² wire) |

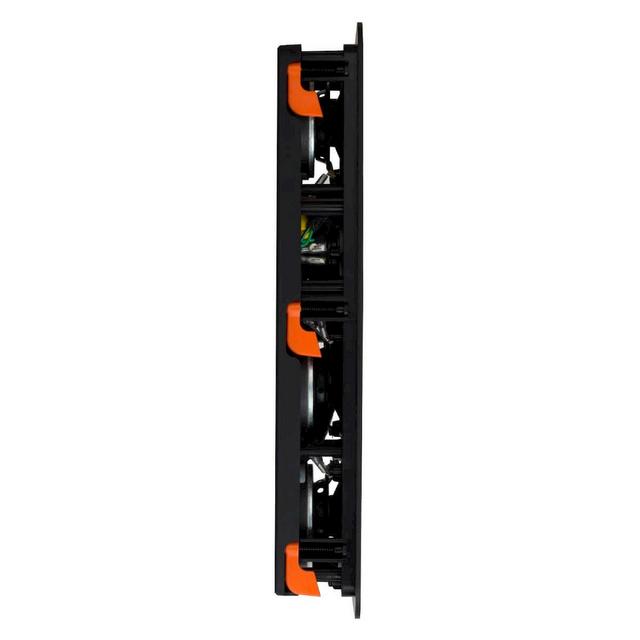

| Fixing Type | 6-position Tri-Grip dog-leg fixings |
| Construction Material | Mineral-filled ABS, painted steel grille |
| Weight | 1.4kg |
| Pre-Construction Bracket | WB3 (Dark Blue) |
| Sold As | Single unit |
The WSS230 delivers a step up in performance compared to the entry-level WSS130, providing a richer, more dynamic sound ideal for home theatre applications. Its C-CAM drivers and Gold Dome tweeter deliver clarity and precision, while the slim profile allows for discreet placement without compromising sound quality. Easy to install with the Tri-Grip system and designed with aesthetics in mind, it is an excellent choice for those seeking a balance of elegance and performance.
Q: What type of applications is the WSS230 best for?
A: It is ideal for home cinema setups, particularly as a centre or left/right speaker in an LCR configuration.
Q: How deep is the speaker?
A: The mounting depth is only 50mm, making it suitable for slim stud walls.
Q: Does the grille blend with room décor?
A: Yes, the trim-less grille is magnetic and paintable for a discreet finish.
Q: What is the main difference between the WSS130 and WSS230?
A: The WSS230 features upgraded C-CAM bass/mid drivers, delivering improved performance over the MMP II drivers used in the WSS130.
Q: Is the speaker sold individually?
A: Yes, the WSS230 is sold as a single unit.
